SWU
SWU

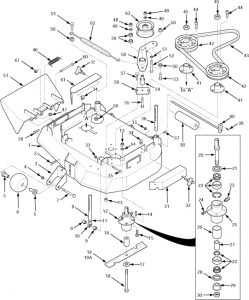

36″ Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461363 | Cutter Deck (Includes Decals) | ||
| 2 | 04017-27 | Capscrew, 3/8-16 x 1.0"Serrated Flange Hex Hd | ||
| 3 | 422478 | Bracket, Anti-Scalp Wheel | ||
| 4 | 04021-05 | Lock Nut, 3/8-16 Center Lock | ||
| 5 | 48100-15 | Bushing, 376 ID Oilite | ||
| 6 | 481632 | Wheel, Anti-Scalp (Incl. Item 5) | ||
| 7 | 04003-26 | Bolt, Carriage 3/8-16 x 4.0" | ||
| 8 | 481838 | Pin Assy., Deck Adj. (Incl. Items 10 & 11) | ||
| 9 | 43512 | Spacer, Deck Adjustment Pin | ||
| 10 | 481539 | Rod End, Male 3/8-24 RH Thread | ||
| 11 | 04020-25 | Nut, 3/8-24 Jam | ||
| 12 | 46631 | Spindle Assembly | ||
| 13 | 04021-10 | Nut, 5/16-18 Elastic Stop | ||
| 14 | 04063-08 | Key,1/4 x 1/4 x 2.0" | ||
| 15 | 04001-10 | Bolt, Hex Head 5/16-18 x 1.50" | ||
| 16 | 43309 | Spacer, Spindle | ||
| 17 | 04040-10 | Flatwasher, 5/8 W | ||
| 18 | 04001-41 | Bolt, Hex Head 5/8-11 x 9.50" | ||
| 19 | 481707 | Cutter Blade, 18" | ||
| 19A | 48185 | Cutter Blade, 18" Hi Lift | ||
| 20 | 43299 | Spindle Shaft | ||
| 21 | 481024 | Seal, Cutter Spindle Top | ||
| 22 | 481022 | Tapered Bearing Set (Two Bearings W/Race) | ||
| 23 | 48114-04 | Grease Fitting | ||
| 24 | 48677 | Relief Fitting, Cutter Spindle | ||
| 25 | 43294 | Spindle Housing | ||
| 26 | 43312 | Spacer, Outside | ||
| 27 | 43296 | Spacer, Inside | ||
| 28 | 481025 | Seal, Cutter Spindle Bottom | ||
| 29 | 43297 | Spindle Bushing | ||
| 30 | 481035 | Nut, Spindle | ||
| 31 | 422762 | Belt Cover, LH | ||
| 32 | 481625-01 | Wing Nut, 3/8-16 | ||
| 33 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 34 | 04110-03 | U-Nut, 3/8-16 | ||
| 35 | 04001-31 | Bolt, Hex Head 3/8-16 x 2.50" | ||
| 36 | 43515 | Pin, Deck Adj. Rear | ||
| 37 | 04060-08 | Pin, Sloted Spring 3/16 x 1.50" | ||
| 38 | 48038 | Guide, Roller | ||
| 39 | 04001-12 | Bolt, Hex Head 5/16-18 x 1.75" Front | ||
| 39 | 04001-11 | Bolt, Hex Head 5/16-18 x 1.50" Rear | ||
| 40 | 451118 | Roller Shaft | ||
| 41 | 48926 | Tapered Hub | ||
| 42 | 48924 | Pulley | ||
| 43 | 481880 | Belt, Cutter Deck | ||
| 44 | 04015-14 | Capscrew, Socket Head. 1/4-20 x 1.375" | ||
| 45 | 04020-09 | Hex Nut, 5/8-11 | ||
| 46 | 482245 | Spring, Chute Return | ||
| 47 | 04021-10 | Hex Nut, 5/16-18 Elastic Stop | ||
| 48 | 04021-09 | Hex Nut, 3/8-16 Elastic Stop | ||
| 49 | 04043-04 | Flatwasher, 3/8 (.938 x .391 x .105) Grade 8 | ||
| 50 | 04019-04 | Nut, 3/8-16 Serrated Flange | ||
| 51 | 461291 | Discharge Chute, Nylon | ||
| 52 | 04001-51 | Capscrew, Hex Head 3/8-16 x 3.75" | ||
| 53 | 04001-136 | Capscrew, Hex Head 3/8-16 x 1.50" Grage 8 | ||
| 54 | 43510 | Pivot, Idler - Long | ||
| 55 | 04001-62 | Capscrew, Hex Head 38/16 x 3.25" | ||
| 56 | 422713 | Base, Idler Pivot | ||
| 57 | 04003-04 | Bolt, Carriage 5/16-18 x 1.0" | ||
| 58 | 461174 | Idler Arm Weldment | ||
| 59 | 48224 | Ball Bearing | ||
| 60 | 04001-154 | Bolt, Hex Head 5/16-18 x 4.75" | ||
| 61 | 422763 | Belt Cover, RH | ||
| 62 | 481597 | Spring, Deck Idler | ||
| 63 | 481962 | Pulley, Idler | ||
| 64 | 04030-03 | Lockwasher, 5/16 (.317 x .586 x .078) |

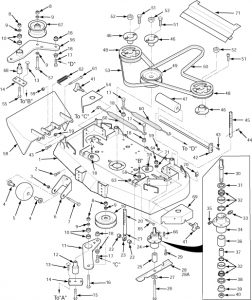

48″ Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461368 | Cutter Deck With Decals 48" | ||
| 2 | 04017-27 | Capscrew, 3/8-16 x 1.0" Serrated Flange | ||
| 3 | 04021-05 | Lock Nut, 3/8-16 Center Lock | ||
| 4 | 48100-15 | Bushing, 376 ID Oilite | ||
| 5 | 481632 | Wheel, Anti-Scalp | ||
| 6 | 422478 | Bracket, Anti-Scalp Wheel | ||
| 7 | 04003-26 | Bolt, Carriage 3/8-16 x 4.0" | ||
| 8 | 04021-09 | Hex Nut, 3/8-16 Elastic Stop | ||
| 9 | 04043-04 | Flatwasher, 3/8 (.938 x .391 x .105) Grade 8 | ||
| 10 | 48224 | Ball Bearings | ||
| 11 | 461175 | Idler Arm RH | ||
| 12 | 43503 | Pivot, Idle - Short | ||
| 13 | 04003-04 | Bolt, Carriage 5/16-18 x 1.0" | ||
| 14 | 422713 | Base, Idler Pivot | ||
| 15 | 04001-31 | Capscrew, Hex Head 3/8-16 x 2.50" | ||
| 16 | 04001-45 | Capscrew, Hex Head 3/8-16 x 2.0" | ||
| 17 | 04001-136 | Capscrew, Hex Head 3/8-16 x 1.50" Grade 8 | ||
| 18 | 04019-04 | Nut, 3/8-16 Serrated Flange | ||
| 19 | 48181 | Pulley, Idler | ||
| 20 | 481838 | Pin Assembly (Incl. 21 & 23) | ||
| 21 | 04020-25 | Nut, 3/8-24 Jam | ||
| 22 | 43512 | Spacer, Deck Adjustment Pin | ||
| 23 | 481539 | Rod End, Male 3/8-24 | ||
| 24 | 46631 | Spindle Assembly | ||
| 25 | 43309 | Spacer, Spindle | ||
| 26 | 04001-41 | Bolt,Hex Head 5/8-11 x 9.50" | ||
| 27 | 04040-10 | Flatwasher, 5/8 W | ||
| 28 | 481706 | Cutter Blade 16-1/2" 48" | ||
| 28 | 481707 | Cutter Blade 18" 52" | ||
| 28A | 481710 | Cutter Blade 16-1/2" Hi Lift 48" | ||
| 28A | 481711 | Cutter Blade 18" Hi Lift 52" | ||
| 29 | 04001-10 | Bolt, Hex Head 5/16-18 x 1.50" | ||
| 30 | 43298 | Spindle Shaft | ||
| 31 | 481024 | Seal, Cutter Spindle - Top | ||
| 32 | 481022 | Tapered Bearings (Two) | ||
| 33 | 48114-04 | Grease Fitting | ||
| 34 | 43294 | Spindle Housing | ||
| 35 | 48677 | Relief Fitting, Cutter Spindle | ||
| 36 | 43312 | Spacer Outside | ||
| 37 | 43296 | Spacer, Inside | ||
| 38 | 481025 | Seal, Cutter Spindle - Bottom | ||
| 39 | 43297 | Spindle Bushing | ||
| 39 | 481035 | Nut, Spindle | ||
| 40 | 481625-01 | Wing Nut, 3/8-16 | ||
| 41 | 451118 | Roller Shaft | ||
| 42 | 04001-12 | Bolt, Hex Head 5/16-18 x 1.0" Front | ||
| 43 | 04001-11 | Bolt, Hex Head 5/16-18 x 1.50" Rear | ||
| 44 | 04060-08 | Pin, Slotted Spring 3/16 x 1.50" | ||
| 45 | 43515 | Pin, Deck Adjustment Rear | ||
| 46 | 48926 | Tapered Hub | ||
| 47 | 48038 | Guide, Roller | ||
| 48 | 48924 | Pulley | ||
| 49 | 48923 | Pulley, 5.75 Double Groove | ||
| 50 | 481922 | Belt, Deck Drive | ||
| 51 | 04015-14 | Capscrew, Socket Head 1/4-20 x 1.375" | ||
| 52 | 04020-09 | Hex Nut, 5/8-11 | ||
| 53 | 48087 | Belt, RH Blade Drive 48" | ||
| 54 | 422745 | Belt Cover, RH | ||
| 55 | 04001-62 | Capscrew, Hex Head 3/8-16 x 3.25" | ||
| 56 | 461174 | Idler Arm Weldment | ||
| 57 | 04001-51 | Capscrew, Hex Head 3/8-16 x 3.75" | ||
| 58 | 461291 | Discharge Chute, Nylon | ||
| 59 | 04019-03 | Nut, 5/16-18 Serrated Flange | ||
| 60 | 481597 | Spring, Deck Idler | ||
| 61 | 04001-154 | Bolt, Hex Head 5/16-18 x 4.75" | ||
| 62 | 482245 | Spring, Chute Return | ||
| 63 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 64 | 04021-10 | Nut, 5/16-18 Elastic Stop | ||
| 65 | 04001-31 | Bolt, Hex Head 3/8-16 x 2.50" | ||
| 66 | 04063-08 | Key, 1/4 x 1/4 x 2.0" | ||
| 67 | 481962 | Pulley, Idler | ||
| 68 | 43510 | Pivot, Idler - Long | ||
| 69 | 422744 | Belt Cover LH | ||
| 70 | 04110-03 | U-Nut, 3/8-16 | ||
| 71 | 04030-03 | Lockwasher, 5/16 (.317 x .586 x .078) |
52″ Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 461373 | Cutter Deck With Decals 52" | |||
| 2 | 04017-27 | Capscrew, 3/8-16 x 1.0" Serrated Flange | ||
| 3 | 04021-05 | Lock Nut, 3/8-16 Center Lock | ||
| 4 | 48100-15 | Bushing, 376 ID Oilite | ||
| 5 | 481632 | Wheel, Anti-Scalp | ||
| 6 | 422478 | Bracket, Anti-Scalp Wheel | ||
| 7 | 04003-26 | Bolt, Carriage 3/8-16 x 4.0" | ||
| 8 | 04021-09 | Hex Nut, 3/8-16 Elastic Stop | ||
| 9 | 04043-04 | Flatwasher, 3/8 (.938 x .391 x .105) Grade 8 | ||
| 10 | 48224 | Ball Bearings | ||
| 11 | 461175 | Idler Arm RH | ||
| 12 | 43503 | Pivot, Idle - Short | ||
| 13 | 04003-04 | Bolt, Carriage 5/16-18 x 1.0" | ||
| 14 | 422713 | Base, Idler Pivot | ||
| 15 | 04001-31 | Capscrew, Hex Head 3/8-16 x 2.50" | ||
| 16 | 04001-45 | Capscrew, Hex Head 3/8-16 x 2.0" | ||
| 17 | 04001-136 | Capscrew, Hex Head 3/8-16 x 1.50" Grade 8 | ||
| 18 | 04019-04 | Nut, 3/8-16 Serrated Flange | ||
| 19 | 48181 | Pulley, Idler | ||
| 20 | 481838 | Pin Assembly (Incl. 21 & 23) | ||
| 21 | 04020-25 | Nut, 3/8-24 Jam | ||
| 22 | 43512 | Spacer, Deck Adjustment Pin | ||
| 23 | 481539 | Rod End, Male 3/8-24 | ||
| 24 | 46631 | Spindle Assembly | ||
| 25 | 43309 | Spacer, Spindle | ||
| 26 | 04001-41 | Bolt,Hex Head 5/8-11 x 9.50" | ||
| 27 | 04040-10 | Flatwasher, 5/8 W | ||
| 28 | 481706 | Cutter Blade 16-1/2" 48" | ||
| 28 | 481707 | Cutter Blade 18" 52" | ||
| 28A | 481710 | Cutter Blade 16-1/2" Hi Lift 48" | ||
| 28A | 481711 | Cutter Blade 18" Hi Lift 52" | ||
| 29 | 04001-10 | Bolt, Hex Head 5/16-18 x 1.50" | ||
| 30 | 43298 | Spindle Shaft | ||
| 31 | 481024 | Seal, Cutter Spindle - Top | ||
| 32 | 481022 | Tapered Bearings (Two) | ||
| 33 | 48114-04 | Grease Fitting | ||
| 34 | 43294 | Spindle Housing | ||
| 35 | 48677 | Relief Fitting, Cutter Spindle | ||
| 36 | 43312 | Spacer Outside | ||
| 37 | 43296 | Spacer, Inside | ||
| 38 | 481025 | Seal, Cutter Spindle - Bottom | ||
| 39 | 43297 | Spindle Bushing | ||
| 39 | 481035 | Nut, Spindle | ||
| 40 | 481625-01 | Wing Nut, 3/8-16 | ||
| 41 | 451118 | Roller Shaft | ||
| 42 | 04001-12 | Bolt, Hex Head 5/16-18 x 1.0" Front | ||
| 43 | 04001-11 | Bolt, Hex Head 5/16-18 x 1.50" Rear | ||
| 44 | 04060-08 | Pin, Slotted Spring 3/16 x 1.50" | ||
| 45 | 43515 | Pin, Deck Adjustment Rear | ||
| 46 | 48926 | Tapered Hub | ||
| 47 | 48038 | Guide, Roller | ||
| 48 | 48924 | Pulley | ||
| 49 | 48923 | Pulley, 5.75 Double Groove | ||
| 50 | 481922 | Belt, Deck Drive | ||
| 51 | 04015-14 | Capscrew, Socket Head 1/4-20 x 1.375" | ||
| 52 | 04020-09 | Hex Nut, 5/8-11 | ||
| 53 | 48285 | Belt, RH Blade Drive 52" | ||
| 54 | 422745 | Belt Cover, RH | ||
| 55 | 04001-62 | Capscrew, Hex Head 3/8-16 x 3.25" | ||
| 56 | 461174 | Idler Arm Weldment | ||
| 57 | 04001-51 | Capscrew, Hex Head 3/8-16 x 3.75" | ||
| 58 | 461291 | Discharge Chute, Nylon | ||
| 59 | 04019-03 | Nut, 5/16-18 Serrated Flange | ||
| 60 | 481597 | Spring, Deck Idler | ||
| 61 | 04001-154 | Bolt, Hex Head 5/16-18 x 4.75" | ||
| 62 | 482245 | Spring, Chute Return | ||
| 63 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 64 | 04021-10 | Nut, 5/16-18 Elastic Stop | ||
| 65 | 04001-31 | Bolt, Hex Head 3/8-16 x 2.50" | ||
| 66 | 04063-08 | Key, 1/4 x 1/4 x 2.0" | ||
| 67 | 481962 | Pulley, Idler | ||
| 68 | 43510 | Pivot, Idler - Long | ||
| 69 | 422744 | Belt Cover LH | ||
| 70 | 04110-03 | U-Nut, 3/8-16 | ||
| 71 | 04030-03 | Lockwasher, 5/16 (.317 x .586 x .078) |

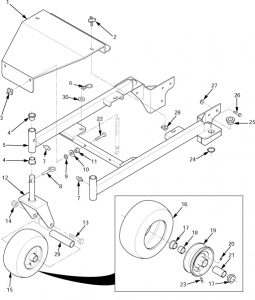

36″ Deck Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461170 | Belt Cover With Decal | ||
| 2 | 481625-01 | Knob With Stud | ||
| 3 | 04029-03 | Knob, Deck Cover Mounting | ||
| 4 | 48100-08 | Bushing, Caster | ||
| 5 | 451097 | Frame Weldment, Deck Mounting - 36" | ||
| 6 | 04062-04 | Hair Pin Cotter, .177 x 3.25" | ||
| 7 | 48114-04 | Grease Fitting Str. 1/4-28 Self Tap | ||
| 8 | 04066-01 | Quick Pin .438 Dia | ||
| 9 | 04024-02 | Nut, Push-On - 3/8 Thd. | ||
| 10 | 04041-07 | Flatwasher, 3/8 - (.391 x .938 x .105) | ||
| 11 | 04019-04 | Nut, 3/8-16 Serrated Flange Hex Head | ||
| 12 | 45325 | Yoke, Caster Wheel | ||
| 13 | 04001-80 | Capscrew, Hex Head 1/2-13 x 6.50" | ||
| 14 | 04021-07 | Locknut, 1/2-13 Elastic Stop | ||
| 15 | 481843 | Wheel Assembly, Caster | ||
| 16 | 481845 | Tire, 11 x 4.00-5 | ||
| 17 | 481770 | Retainer | ||
| 18 | 481846 | Roller Bearing | ||
| 19 | 481844 | Rim, 5.0 x 2.75 With Zerk & Valve | ||
| 20 | 48114-05 | Grease Fitting Str.1/4-28 | ||
| 21 | 481769 | Roller Bearing .625 x 3.25" | ||
| 22 | 04001-46 | Capscrew, Hex Head 3/8-16 x 2.25" | ||
| 23 | Tire Valve, Purchase Locally | Purchase Locally. | ||
| 24 | 04050-16 | Retaining Ring 1.50 Ext. | ||
| 25 | 43530 | Bushing, Deck Adjustment Pin | ||
| 26 | 04017-42 | Capscrew, Hex Head 7/16-14 x 1.0" | ||
| 27 | 04019-05 | Nut, 7/16-14 Serrated Flange Hex | ||
| 28 | 04110-03 | U-Nut, 3/8-16 | ||
| 29 | 43511 | Sleeve, Caster Wheel | ||
| 30 | 04040-10 | Flatwasher, 5/8 - (.688 x 1.75 x .134) |

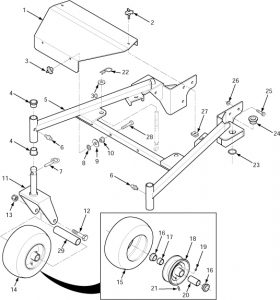

48″ Deck Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461171 | Belt Cover With Decal - 48" | ||
| 2 | 481625-01 | Knob With Stud | ||
| 3 | 04029-03 | Knob, Deck Cover Mounting | ||
| 4 | 48100-08 | Bushing, Caster | ||
| 5 | 451098 | Frame Weldment, Deck Mounting - 48" | ||
| 6 | 48114-04 | Grease Fitting Str. 1/4-28 Self Tap | ||
| 7 | 04066-01 | Quick Pin,.438 Dia | ||
| 8 | 04024-02 | Nut, Push-On - 3/8 Thd. | ||
| 9 | 04041-07 | Flatwasher, 3/8 (.391 x .938 x .105) | ||
| 10 | 04019-04 | Nut, 3/8-16 Serrated Flange Hex Head | ||
| 11 | 45325 | Yoke, Caster Wheel | ||
| 12 | 04001-80 | Capscrew, Hex Head 1/2-13 x 6.50" | ||
| 13 | 04021-07 | Locknut, 1/2-13 Elastic Stop | ||
| 14 | 481843 | Wheel Assembly, Caster | ||
| 15 | 481845 | Tire, 11 x 4.00-5 | ||
| 16 | 481770 | Retainer | ||
| 17 | 481846 | Roller Bearing | ||
| 18 | 481844 | Rim, 5.0 x 2.75 With Zerk & Valve | ||
| 19 | 48114-05 | Grease Fitting Str.1/4-28 | ||
| 20 | 481769 | Roler Bearing .625 x 3.25" | ||
| 21 | Tire Valve, Purchase Locally | Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated. | ||
| 22 | 04062-04 | Hair Pin Cotter, .177 x 3.25" | ||
| 23 | 04050-16 | Retaining Ring 1.50 Ext. | ||
| 24 | 43530 | Bushing, Deck Adjustment Pin | ||
| 25 | 04017-42 | Capscrew, Hex Head 7/16-14 x 1.0" | ||
| 26 | 04019-05 | Nut, 7/16-14 Serrated Flange Hex | ||
| 27 | 04110-03 | U-Nut, 3/8-16 | ||
| 28 | 04001-46 | Capscrew, Hex Head 3/8-16 x 2.25" | ||
| 29 | 43511 | Sleeve, Caster Wheel | ||
| 30 | 04040-10 | Flatwasher, 5/8 - (.688 x 1.75 x .134) |
52″ Deck Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461279 | Belt Cover With Decal - 52" | ||
| 2 | 481625-01 | Knob With Stud | ||
| 3 | 04029-03 | Knob, Deck Cover Mounting | ||
| 4 | 48100-08 | Bushing, Caster | ||
| 5 | 451155 | Frame Weldment, Deck Mounting - 52" | ||
| 6 | 48114-04 | Grease Fitting Str. 1/4-28 Self Tap | ||
| 7 | 04066-01 | Quick Pin,.438 Dia | ||
| 8 | 04024-02 | Nut, Push-On - 3/8 Thd. | ||
| 9 | 04041-07 | Flatwasher, 3/8 (.391 x .938 x .105) | ||
| 10 | 04019-04 | Nut, 3/8-16 Serrated Flange Hex Head | ||
| 11 | 45325 | Yoke, Caster Wheel | ||
| 12 | 04001-80 | Capscrew, Hex Head 1/2-13 x 6.50" | ||
| 13 | 04021-07 | Locknut, 1/2-13 Elastic Stop | ||
| 14 | 481843 | Wheel Assembly, Caster | ||
| 15 | 481845 | Tire, 11 x 4.00-5 | ||
| 16 | 481770 | Retainer | ||
| 17 | 481846 | Roller Bearing | ||
| 18 | 481844 | Rim, 5.0 x 2.75 With Zerk & Valve | ||
| 19 | 48114-05 | Grease Fitting Str.1/4-28 | ||
| 20 | 481769 | Roler Bearing .625 x 3.25" | ||
| 21 | Tire Valve, Purchase Locally | Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated. | ||
| 22 | 04062-04 | Hair Pin Cotter, .177 x 3.25" | ||
| 23 | 04050-16 | Retaining Ring 1.50 Ext. | ||
| 24 | 43530 | Bushing, Deck Adjustment Pin | ||
| 25 | 04017-42 | Capscrew, Hex Head 7/16-14 x 1.0" | ||
| 26 | 04019-05 | Nut, 7/16-14 Serrated Flange Hex | ||
| 27 | 04110-03 | U-Nut, 3/8-16 | ||
| 28 | 04001-46 | Capscrew, Hex Head 3/8-16 x 2.25" | ||
| 29 | 43511 | Sleeve, Caster Wheel | ||
| 30 | 04040-10 | Flatwasher, 5/8 - (.688 x 1.75 x .134) |

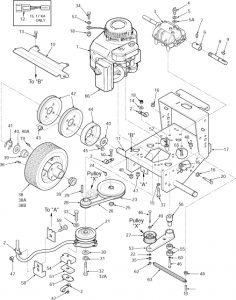

Engine Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 482144 | Engine,15HP Kawasaki (FH451V - AS02) | ||
| 1 | 481563 | Engine, 17HP Kawasaki (FH500V) | ||
| 2 | 48030-09 | Cable Clamp | ||
| 3 | 481580 | Transmission, 5-speed (Peerless 700-070, 9 spline) | ||
| 4 | 48231 | Neutral Safety Switch | ||
| 5 | 48122-01 | Fibre Washer, thin | ||
| 5A | 48122-02 | Fibre Washer, thick | ||
| 6 | 481581 | Coupler, Jackshaft | ||
| 7 | 48114-05 | Grease Fitting, straight 1/4-28 | ||
| 8 | 481582 | Jackshaft (fits SW32,36 & 48) | ||
| 9 | 04063-09 | Key, Hi-Pro #9 | ||
| 10 | 422737 | Heat Shield, 36" & 48" | ||
| 10 | 422883 | Heat Shield, 52" | ||
| 11 | 43085 | Wheel Axle (SW36,48) ** | ||
| 12 | 481717 | Wire Harness Adaptor, 17KA | ||
| 13 | 04017-16 | Bolt, 5/16-18 X .75" Serrated Flange Hex Head | ||
| 14 | 04040-14 | Flat Washer 1/4" (.312 X .75 X .065) | ||
| 15 | 04030-03 | Lock Wshr. 5/16" | ||
| 16 | 04019-04 | Nut, 3/8-16 Serrated Flange | ||
| 17 | 46765 | Engine Deck | ||
| 18 | 04021-08 | Nut, 1/4-20 Elastic Stop | ||
| 19 | 48114-04 | Grease Fitting, 1/4-28 Self Tap | ||
| 20 | 04001-51 | Bolt, 3/8-16 x 3-3/4" Hex Head | ||
| 21 | 461073 | Electric Clutch (Ogura) | ||
| 22 | 04041-07 | Washer, 3/8" (.391 x .938 x .105) | ||
| 23 | 48197 | Pulley, Transmission Input | ||
| 24 | 04063-07 | Key, Woodruff #9 | ||
| 25 | 04050-09 | Retaining Ring, 5/8" Ext, Basic | ||
| 26 | 48203 | Belt, Transmission Drive | ||
| 27 | 481048 | Idler Pulley, Transmission | ||
| 28 | 481666 | Pulley, Traction Drive | ||
| 29 | 04063-19 | Key, 1/4 x 1/4 x 3/4" | ||
| 30 | 04041-28 | Flat Washer, 7/16" Special | ||
| 31 | 04030-05 | Lock Washer,7/16" | ||
| 32 | 04001-101 | Bolt, 7/16-20 x 2-1/2" Hex Head (Kohler Only) | ||
| 32A | 04002-15 | Cpsrw, M10-1.5 x 55 Metric Hex Hd (Kawasaki) | ||
| 33 | 04001-12 | Bolt, 5/16-18 x 1-3/4" Hex Head | ||
| 34 | 04002-07 | Bolt, M8-1.25 x 1.0 | ||
| 35 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 36 | Valve Stem, Purchase Locally | |||
| 37 | 04018-01 | Bolt, M8-1.25 x M25 Metric Hex Hd | ||
| 38 | 481841 | Wheel Assembly (incl. 38A-38B) | ||
| 38A | 481842 | Tire, 15 x 6.0-6, Turf Saver | ||
| 38B | 481859 | Rim & Bearing Assembly (incl. 39) | ||
| 39 | 481858 | Wheel Brng. NWC (OD 1.984 - 1.980) | ||
| 40 | 04042-05 | Washer, 1-1/16 x 1-3/4 x 12 ga | ||
| 40A | 04041-14 | Washer, 1-1/16 x 1-1/2 x 18 ga | ||
| 41 | 04050-08 | Retaining Ring, 1" Ext.- "E" | ||
| 42 | 48200 | Pulley, Wheel Drive | ||
| 43 | 43088 | Spacer, Wheel Pulley | ||
| 44 | 48209 | Brake Drum | ||
| 45 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serrated Flange | ||
| 46 | 04001-22 | Capscrew, Hex Head 3/8-16 x 2.75" | ||
| 47 | 04021-10 | Nut, 5/16-18 Elastic Stop | ||
| 48 | 04019-03 | Nut, 5/16-18 Serrated Flange Hex Head | ||
| 49 | 04041-07 | Flatwasher, 3/8 (.391 x .938 x .105) | ||
| 50 | 04001-08 | Bolt, 5/16-18 x .75" Hex Head | ||
| 51 | 481716 | Rubber Pad, Clutch Stop | ||
| 52 | 04003-02 | Bolt, 1/4-20 x .75" Carriage | ||
| 53 | 461169 | Idler Arm, Trans. Drive | ||
| 54 | 422533 | Backing Plate | ||
| 55 | 48224 | Ball Bearing | ||
| 56 | 43504 | Hub Idler Pivot | ||
| 57 | 04031-09 | Lock Washer Internal Tooth | ||
| 58 | 421370 | Anti Rotation Bracket | ||
| 59 | 04003-04 | Bolt, 5/16-18 x 1" Carriage | ||
| 60 | 04043-04 | Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 | ||
| 61 | 422534 | Plate, Backing | ||
| 62 | 04021-05 | Nut, 3/8-16 Elastic Stop | ||
| 63 | 481835 | Spring, Return Drive Idler | ||
| 64 | 04001-02 | Bolt, Hex Head 3/8-16 x 2.75" | ||
| 65 | 04017-16 | Capscrew, 5/16-18 x .75 Serrated Flange Hex Head | ||
| 66 | 12-068-64 | Muffler, Kohler (Purchase from Kohler Only) | ||
| 66 | 49070-7002 | 17KA Muffler (Purchase from Kawasaki Only) |

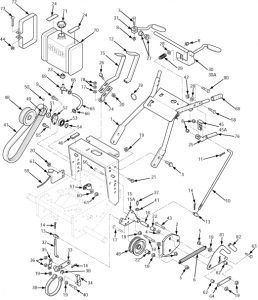

Handle Assembly-15KA
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 49403 | Handle Assembly 16" Frame | ||
| 2 | 421360 | Belt Guard | ||
| 3 | 04017-27 | Capscrw, 3/8-16 x 1" Ser. Flange | ||
| 4 | 04041-07 | Flatwasher, 3/8 (.391 x .938 x .105) | ||
| 5 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 6 | 481834 | Spring, Idler | ||
| 7 | 04001-10 | Bolt, 5/16-18 x 1-1/4" Hex Head | ||
| 8 | 04021-10 | Nut, 5/16-18 Elastic Stop | ||
| 9 | 04017-05 | Capscrew, 1/4-20 x 3/4" Hex Head | ||
| 10 | 44004 | Control Rod, Steering | ||
| 11 | 04062-02 | Hair Pin, Small | ||
| 12 | 481839 | Grip, Shift Lever | ||
| 13 | 43032 | Swivel Joint | ||
| 14 | 04062-01 | Hair Pin, Large .094 Diameter | ||
| 15 | 45847 | Idler Bracket, RH | ||
| 15A | 45846 | Idler Bracket, LH | ||
| 16 | 43092 | Idler Sleeve | ||
| 17 | 04001-62 | Bolt, 3/8-16 x 3/4" Hex Head | ||
| 18 | 04004-17 | Support Belt Guard | ||
| 19 | 04019-04 | Nut, 3/8-16 Serrated Flange | ||
| 20 | 04019-03 | Nut, 5/16-18 Serrated Flange | ||
| 22 | 43286 | Spacer | ||
| 23 | 48309 | Bushing, Fuel Tank | ||
| 24 | 48292 | Rubber Pad, (Upper) | ||
| 25 | 46089 | Steering Lever | ||
| 26 | 04017-17 | Capscrew, 5/16-18 x 1" Ser. Flng. | ||
| 27 | 48312 | Bushing, Operator Presence | ||
| 28 | 04040-15 | Washer, 5/16 (.375 x .875 x .083) | ||
| 29 | 48951 | Spring, Operator Presence | ||
| 30 | 45573 | Operator Presence Lever, LH (Small Frame) | ||
| 31 | 45572 | Operator Presence Lever, RH | ||
| 32 | 44005 | Brake Rod | ||
| 33 | 45092 | Brake Lever | ||
| 34 | 45093 | Brake Link | ||
| 35 | 42254 | Brake Link Plate | ||
| 36 | 04024-01 | Nut, 3/8 Push-on | ||
| 37 | 48114-05 | Greese Fitting, Straight 1/4-28 | ||
| 38 | 04050-01 | Retaining Ring, 5/8 Ext. "E" | ||
| 39 | 48210 | Brake Band | ||
| 40 | 04001-45 | Bolt, 3/8-16 x 2" Hex Head | ||
| 41 | 04031-08 | 1/4" Internal Tooth Lockwasher | ||
| 42 | 04032-01 | Curved Spring Washer | ||
| 43 | 04001-32 | Bolt, Hex Head 3/8-16 x 1.25" | ||
| 44 | 04020-02 | Nut, 1/4-20 Hex | ||
| 45 | 461242 | Neutral Latch, RH | ||
| 45A | 461241 | Neutral Latch, LH | ||
| 46 | 48205 | Rubber Pad (Lower) | ||
| 47 | 48202A | Belt, Wheel Drive | ||
| 48 | 48198 | Idler Pulley, Wheel Drive | ||
| 49 | 48199 | Pulley, Jackshaft (Inc. 50) | ||
| 50 | 04012-04 | Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock) | ||
| 51 | 43098 | Spacer, Jackshaft Pulley | ||
| 52 | 48223 | Flange, Jackshaft Bearing | ||
| 53 | 48224 | Bearing, Jackshaft | ||
| 54 | 04050-09 | Retaining Ring, 5/8 Ext. Basic | ||
| 55 | 04017-06 | Capscrew, 1/4-20 x 1" Ser. Flange | ||
| 56 | 04001-62 | Bolt, 3/8-16 x 3.25" | ||
| 57 | 48030-09 | Clamp | ||
| 58 | 04001-17 | Bolt, 5/16-18 x 2" Hex Head | ||
| 59 | 482314 | Choke Control | ||
| 60 | 04040-15 | Flatwasher, 5/16 (.375 x .875 x .083) | ||
| 61 | 04021-02 | Nut, 1/4-20 Elastic Stop | ||
| 62 | 43212 | Spacer | ||
| 63 | 04001-32 | Bolt, Hex Head 3/8-16 x 1.25" | ||
| 64 | 422756 | Bar | ||
| 66 | 48059-01 | Clamp, Fuel Hose | ||
| 68 | 48159 | Grip, Handle | ||
| 69 | 48308 | Valve, Fuel Shut Off | ||
| 70 | 46846 | Fuel Tank Assy.(Incl. Bush. & Val.) | ||
| 71 | 481603 | Fuel Tank Cap | ||
| 72 | 421239 | Strap, Fuel Tank | ||
| 73 | 04010-10 | Screw, 1/4-20 x 2" Rnd Hd Slotted | ||
| 74 | 422279 | Shift Lever | ||
| 75 | 461163 | Shift Lever (Incl. Item 12) | ||
| 76 | 48144 | Grip, Steering Lever | ||
| 77 | 04041-07 | Washer, 3/8 (.391x .938 x .105) | ||
| 78 | 04020-14 | Nut, 3/8-24 UNF | ||
| 79 | 48028-05 | Cable Tie | ||
| 80 | 04001-53 | Bolt, 5/16-18 x 2-1/2" | ||
| 81 | 461304 | Valve, Fuel Shut Off | ||
| 82 | 481847 | Grip, Traction Adjustment Lever |
Handle Assembly-17KA
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 49403 | Handle Assembly 16" Frame | ||
| 2 | 421360 | Belt Guard | ||
| 3 | 04017-27 | Capscrw, 3/8-16 x 1" Ser. Flange | ||
| 4 | 04041-07 | Flatwasher, 3/8 (.391 x .938 x .105) | ||
| 5 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 6 | 481834 | Spring, Idler | ||
| 7 | 04001-10 | Bolt, 5/16-18 x 1-1/4" Hex Head | ||
| 8 | 04021-10 | Nut, 5/16-18 Elastic Stop | ||
| 9 | 04017-05 | Capscrew, 1/4-20 x 3/4" Hex Head | ||
| 10 | 44004 | Control Rod, Steering | ||
| 11 | 04062-02 | Hair Pin, Small | ||
| 12 | 481839 | Grip, Shift Lever | ||
| 13 | 43032 | Swivel Joint | ||
| 14 | 04062-01 | Hair Pin, Large .094 Diameter | ||
| 15 | 45847 | Idler Bracket, RH | ||
| 15A | 45846 | Idler Bracket, LH | ||
| 16 | 43092 | Idler Sleeve | ||
| 17 | 04001-62 | Bolt, 3/8-16 x 3/4" Hex Head | ||
| 18 | 04004-17 | Support Belt Guard | ||
| 19 | 04019-04 | Nut, 3/8-16 Serrated Flange | ||
| 20 | 04019-03 | Nut, 5/16-18 Serrated Flange | ||
| 21 | 04017-16 | Cpscrw, 5/16-18 x .75" Ser. Flng. | ||
| 22 | 43286 | Spacer | ||
| 23 | 48309 | Bushing, Fuel Tank | ||
| 24 | 48292 | Rubber Pad, (Upper) | ||
| 25 | 46089 | Steering Lever | ||
| 26 | 04017-17 | Capscrew, 5/16-18 x 1" Ser. Flng. | ||
| 27 | 48312 | Bushing, Operator Presence | ||
| 28 | 04040-15 | Washer, 5/16 (.375 x .875 x .083) | ||
| 29 | 48951 | Spring, Operator Presence | ||
| 30 | 45573 | Operator Presence Lever, LH (Small Frame) | ||
| 31 | 45572 | Operator Presence Lever, RH | ||
| 32 | 44005 | Brake Rod | ||
| 33 | 45092 | Brake Lever | ||
| 34 | 45093 | Brake Link | ||
| 35 | 42254 | Brake Link Plate | ||
| 36 | 04024-01 | Nut, 3/8 Push-on | ||
| 37 | 48114-05 | Greese Fitting, Straight 1/4-28 | ||
| 38 | 04050-01 | Retaining Ring, 5/8 Ext. "E" | ||
| 39 | 48210 | Brake Band | ||
| 40 | 04001-45 | Bolt, 3/8-16 x 2" Hex Head | ||
| 41 | 04031-08 | 1/4" Internal Tooth Lockwasher | ||
| 42 | 04032-01 | Curved Spring Washer | ||
| 43 | 04001-32 | Bolt, Hex Head 3/8-16 x 1.25" | ||
| 44 | 04020-02 | Nut, 1/4-20 Hex | ||
| 45 | 461242 | Neutral Latch, RH | ||
| 45A | 461241 | Neutral Latch, LH | ||
| 46 | 48205 | Rubber Pad (Lower) | ||
| 47 | 48202A | Belt, Wheel Drive | ||
| 48 | 48198 | Idler Pulley, Wheel Drive | ||
| 49 | 48199 | Pulley, Jackshaft (Inc. 50) | ||
| 50 | 04012-04 | Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock) | ||
| 51 | 43098 | Spacer, Jackshaft Pulley | ||
| 52 | 48223 | Flange, Jackshaft Bearing | ||
| 53 | 48224 | Bearing, Jackshaft | ||
| 54 | 04050-09 | Retaining Ring, 5/8 Ext. Basic | ||
| 55 | 04017-06 | Capscrew, 1/4-20 x 1" Ser. Flange | ||
| 56 | 04001-62 | Bolt, 3/8-16 x 3.25" | ||
| 57 | 48030-09 | Clamp | ||
| 58 | 04001-17 | Bolt, 5/16-18 x 2" Hex Head | ||
| 59 | 482314 | Choke Control | ||
| 60 | 04040-15 | Flatwasher, 5/16 (.375 x .875 x .083) | ||
| 61 | 04021-02 | Nut, 1/4-20 Elastic Stop | ||
| 62 | 43212 | Spacer | ||
| 63 | 04001-32 | Bolt, Hex Head 3/8-16 x 1.25" | ||
| 64 | 422756 | Bar | ||
| 65 | 48058 | Fuel Hose,1/4"ID, 20" (KA ) | ||
| 66 | 48059-01 | Clamp, Fuel Hose | ||
| 67 | 421622 | Bracket, Choke Mounting | ||
| 68 | 48159 | Grip, Handle | ||
| 69 | 48308 | Valve, Fuel Shut Off | ||
| 70 | 46846 | Fuel Tank Assy.(Incl. Bush. & Val.) | ||
| 71 | 481603 | Fuel Tank Cap | ||
| 72 | 421239 | Strap, Fuel Tank | ||
| 73 | 04010-10 | Screw, 1/4-20 x 2" Rnd Hd Slotted | ||
| 74 | 422279 | Shift Lever | ||
| 75 | 461163 | Shift Lever (Incl. Item 12) | ||
| 76 | 48144 | Grip, Steering Lever | ||
| 77 | 04041-07 | Washer, 3/8 (.391x .938 x .105) | ||
| 78 | 04020-14 | Nut, 3/8-24 UNF | ||
| 79 | 48028-05 | Cable Tie | ||
| 80 | 04001-53 | Bolt, 5/16-18 x 2-1/2" | ||
| 81 | 461304 | Valve, Fuel Shut Off | ||
| 82 | 481847 | Grip, Traction Adjustment Lever |

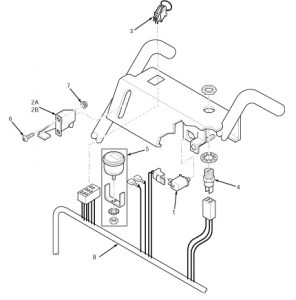

Instrument Panel-15KA
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 48717 | Switch, Neutral Interlock | ||
| 2 | 48946 | Throttle Control | ||
| 3 | 481687 | Engagement Switch, Electric Clutch | ||
| 4 | 48609 | Key Switch (Includes hardware) | ||
| 5 | 48023 | Hour Meter (Dealer installed) | ||
| 6 | Screw, #10-32 x .50 Phillips Washer Head | Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated | ||
| 7 | 04019-01 | Nut, #10-32 Serrated Flange Hex Head | ||
| 8 | 481678 | Handle Wire Harness, Manual Start | ||
| NS | 48030-09 | Clamp, Wire Harness |
Instrument Panel-17KA
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 48717 | Switch, Neutral Interlock | ||
| 2 | 48946 | Throttle Control | ||
| 3 | 481687 | Engagement Switch, Electric Clutch | ||
| 4 | 48609 | Key Switch (Includes hardware) | ||
| 5 | 48023 | Hour Meter (Dealer installed) | ||
| 6 | Screw, #10-32 x .50 Phillips Washer Head | Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated | ||
| 7 | 04019-01 | Nut, #10-32 Serrated Flange Hex Head | ||
| 8 | 481678 | Handle Wire Harness, Manual Start | ||
| NS | 48030-09 | Clamp, Wire Harness |

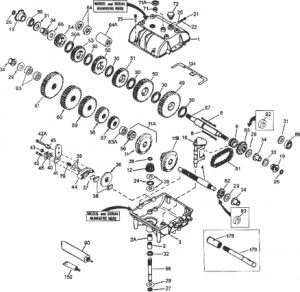

Peerless
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 772083A | Case, Transmisson | ||
| 2 | 780086A | Needle Bearing Grease Spec | ||
| 2A | 780142 | Needle Bearing | ||
| 3 | 770061A | Case, Transmission | ||
| 8 | 792089A | Shift Key | ||
| 9 | 784266 | Shift Collar | ||
| 10 | 784376 | Shift Rod & Fork | ||
| 11 | 778154 | Bevel Gear (42 teeth) | ||
| 12 | 778176 | Bevel Pinion (14 teeth-steel) | ||
| 20 | 792077 | Steel Ball, 5/16" dia. | ||
| 21 | 792078 | Set Screw, 3/8-16 x 3/8" | ||
| 22 | 792079 | Spring | ||
| 24 | 780071 | Thrust Bearing | ||
| 25 | 792073 | Screw, 1/4-20 x 1-1/4" (6) | ||
| 27 | 792035 | Retaining Ring | ||
| 28 | 788040 | Retaining Ring | ||
| 29 | 780072 | Washer (6) | ||
| 30 | 780108 | Washer (5) | ||
| 32 | 792001 | "O" Ring | ||
| 34 | 780105A | Flanged Bushing | ||
| 49 | 778146A | Spur Gear (37 teeth) | ||
| 50 | 778125 | Spur Rear (35 teeth) | ||
| 51 | 778239A | Spur Gear (32 teeth-steel) | ||
| 52 | 778124A | Spur Gear (30 teeth) | ||
| 53 | 778123A | Spur Gear (25 teeth) | ||
| 56 | 778145 | Spur Gear (12 teeth-steel) | ||
| 57 | 778151 | Spur Gear (15 teeth) | ||
| 58 | 778240 | Spur Gear (18 teeth-steel) | ||
| 59 | 778126A | Spur Gear (20 teeth) | ||
| 60 | 778127A | Spur Gear (25 teeth) | ||
| 65 | 780139 | Washer | ||
| 66 | 776135 | Input Shaft (3-11/16" long) | ||
| 67 | 776402 | Shifter & Brake Shaft | ||
| 71 | 788069 | Square Cut Ring | ||
| 72 | 792074 | Threaded Plug (Shipping only, not used) | ||
| 81 | 786081 | Roller Chain (No. 41 chain, 24 links) | ||
| 82 | 786082 | Sprocket (9 teeth) | ||
| 83 | 786083 | Sprocket (18 teeth) | ||
| 90 | 788067B | Grease (32 oz. bottle Bentonite grease) | ||
| 150 | 510334 | Gasket Eliminator (Loctite #515) | ||
| 178 | 481581 | Coupler, Jackshaft (Purchase From Scag) | ||
| 179 | 481582 | Jackshaft (Purchase From Scag) |
