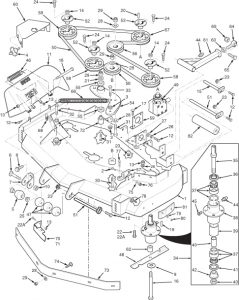

61V Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461863 | Cutter Deck Advantage | ||
| 2 | 04003-40 | Bolt, Carriage 7/16-14 x 1-1/4" | ||
| 3 | 04019-04 | Nut, Hex Serrated Flange 3/8-16 | ||
| 4 | 481625-01 | Wing nut, 3/8-16 | ||
| 5 | 481632 | Anti-Scalp Wheel | ||
| 6 | 04003-26 | Bolt, Carriage 3/8-16 x 4" | ||
| 7 | 422478 | Anti-Scalp Wheel Bracket | ||
| 8 | 04017-27 | Bolt, Hex Serrated Flange 3/8-16 x 1" | ||
| 9 | 04043-06 | Flatwasher, 5/8" Hardened | ||
| 10 | 04021-05 | Locknut, 3/8-16 Center Lock | ||
| 11 | 461846 | Discharge Chute Advantage - Large | ||
| 12 | 04001-11 | Bolt, Hex Head 5/16-18 x 1-3/4" - Front | ||
| 04001-12 | Bolt, Hex Head 5/16-18 x 1-1/2” - Rear | |||
| 13 | 04021-22 | Nut, Hex Elastic Stop 5/16-18 Grade 8 | ||
| 14 | 04020-09 | Nut, 5/8-11 UNC | ||
| 15 | 451240 | Push Arm Shaft | ||
| 16 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2" | ||
| 17 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 18 | 04001-108 | Bolt, Hex Head 5/16-18 x 4-1/2" | ||
| 19 | 04063-08 | Key, 1/4 x 1/4 x 2" | ||
| 20 | 04063-01 | Key, 1/4 x 1/4 x 1-1/4" | ||
| 21 | 04043-04 | Flatwasher,3/8-.39 x .938 x .105 HD | ||
| 22 | 04001-176 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 23 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 24 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 25 | 48100-15 | Bushing, .376 I.D. Oilite | ||
| 26 | 04030-03 | Lockwasher, 5/16" | ||
| 27 | 04040-15 | Flatwasher, 5/16" (.375 x .875 x .083) | ||
| 28 | 04041-07 | Flatwasher, 3/8" (.391 x .938 x .105) | ||
| 29 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 30 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4" | ||
| 31 | 04001-54 | Bolt, Hex Head 3/8-16 x 3" | ||
| 32 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2" | ||
| 33 | 04001-136 | Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 | ||
| 34 | 461663 | Spindle Assembly | ||
| 35 | 43589 | Spindle Shaft | ||
| 36 | 481024 | Seal, Top | ||
| 37 | 481022 | Bearing Assembly | ||
| 38 | 43644 | Spindle Housing | ||
| 39 | 43312 | Spacer, Outside | ||
| 40 | 43296 | Spacer, Inside | ||
| 41 | 481025 | Seal, Bottom | ||
| 42 | 43297 | Spindle Bushing, Bottom | ||
| 43 | 481035 | Nut, Special 1 - 1/16-18 | ||
| 44 | 48114-04 | Grease Fitting | ||
| 45 | 48677 | Relief Fitting, Tapered Spindle | ||
| 46 | 483185 | Spring, Discharge Chute | ||
| 47 | 482295 | Wheel, Anti-Scalp | ||
| 48 | 482881 | Cutter Blade, 21” | ||
| 49 | 482486 | Gearbox Assembly, Deck Drive | ||
| 50 | 481558 | Belt, Cutter Deck Drive | ||
| 51 | 45944 | Roller Shaft | ||
| 52 | 48926 | Tapered Hub, 1-1/8" Bore | ||
| 53 | 48141 | Tapered Hub, 1" Bore | ||
| 54 | 461842 | Idler Arm, Cutter Deck | ||
| 55 | 48224 | Bearings, Ball | ||
| 56 | 483215 | Pulley, Idler | ||
| 57 | 461929 | Lever Assembly, Deck Level (Incl. 77) | ||
| 58 | 482745 | Pulley, 6.35 O.D. (61”) | ||
| 59 | 422426 | Mounting Plate, Gearbox | ||
| 60 | 424325 | Belt, Cover | ||
| 61 | 461516 | Pusharm (incl. items 44, 63 & 64) | ||
| 62 | 43590 | Spacer, Spindle Bottom | ||
| 63 | 04020-16 | Nut, Hex Head 5/8-18 UNF | ||
| 64 | 48763 | Rod End, 5/8" Male RH Thread | ||
| 65 | 04001-79 | Bolt, Hex Head 5/8-11 x 4-1/2" | ||
| 67 | 481597 | Spring, Cutter Deck | ||
| 68 | 482746 | Pulley, 6.75 O.D. | ||
| 69 | 04110-03 | U-Nut, 3/8-16 | ||
| 70 | 04021-13 | Nut, Hex Elastic Stop 5/8-11 | ||
| 71 | 424209 | Discharge Baffle 61V | ||
| 72 | 43503 | Pivot, Idler - Short | ||
| 73 | 424164 | Baffle, Custom Cut 61V | ||
| 74 | 04003-23 | Bolt, Carriage 3/8-16 x 1” | ||
| 75 | 04040-11 | Flatwasher, 7/16-.500 x 1.25 x .083 | ||
| 76 | 04021-11 | Nut, Elastic Stop 7/16-14 | ||
| 77 | 483167 | Bolt, Deck Adjust | ||
| 78 | 04003-12 | Bolt, Carraige 5/16-18 x 3/4” | ||
| 79 | 04040-04 | Flatwasher, 5/16” | ||
| 80 | 04021-04 | Nut, Center Lock 5/16-18 | ||
| 81 | 483176 | Wear Pad | ||
| 82 | 482295 | Wheel, Anti-Scalp |

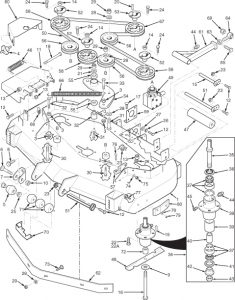

72A Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461865 | Cutter Deck, 72” Advantage (Includes Decals) | ||
| 2 | 04003-40 | Bolt, Carriage 7/16-14 x 1-1/4" | ||
| 3 | 04019-04 | Nut, Hex Serrated Flange 3/8-16 | ||
| 4 | 481625-01 | Wing Nut, 3/8-16 | ||
| 5 | 481632 | Anti-Scalp Wheel | ||
| 6 | 04003-26 | Bolt, Carriage 3/8-16 x 4" | ||
| 7 | 422478 | Anti-Scalp Wheel Bracket | ||
| 8 | 04017-27 | Bolt, Hex Serrated Flange 3/8-16 x 1" | ||
| 9 | 04043-06 | Flatwasher, 5/8" Hardened | ||
| 10 | 04021-05 | Locknut, 3/8-16 Center Lock | ||
| 11 | 461296 | Discharge Chute, 72” Adv. | ||
| 12 | 04001-12 | Bolt, Hex Head 5/16-18 x 1.75" (Front) | ||
| 4001.11 | Bolt, Hex Head 5/16-18 x 1.50” (Rear) | |||
| 13 | 04021-22 | Nut, Hex Elastic Stop 5/16-18 Grade 8 | ||
| 14 | 04020-09 | Nut, 5/8-11 UNC | ||
| 15 | 451240 | Push Arm Shaft | ||
| 16 | 04001-41 | Bolt, Hex Head 5/8-11 x 9.50" | ||
| 17 | 04003-12 | Bolt, Carriage 5/16-18 x .75" | ||
| 18 | 04001-154 | Bolt, Hex Head 5/16-18 x 4.75" | ||
| 19 | 04063-08 | Key, 1/4 x 1/4 x 2" | ||
| 20 | 04063-01 | Key, 1/4 x 1/4 x 1.25" | ||
| 21 | 04043-04 | Flatwasher,3/8-.39 x .938 x .105 HD | ||
| 22 | 04001-11 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 23 | 04021-10 | Nut, Hex Serrated Flange 5/16-18 | ||
| 24 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 25 | 48100-15 | Bushing, .376 I.D. Oilite | ||
| 26 | 04030-03 | Lockwasher, 5/16" | ||
| 27 | 04040-15 | Flatwasher, 5/16" (.375 x .875 x .083) | ||
| 28 | 04041-07 | Flatwasher, 3/8" (.391 x .938 x .105) | ||
| 29 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 30 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4" | ||
| 31 | 04001-54 | Bolt, Hex Head 3/8-16 x 3" | ||
| 32 | 43503 | Pivot, Idler - Short | ||
| 33 | 04001-136 | Bolt, Hex Head 3/8-16 x 1.50" Grade 8 | ||
| 34 | 461663 | Spindle Assembly | ||
| 35 | 43589 | Spindle Shaft | ||
| 36 | 481024 | Seal, Top | ||
| 37 | 481022 | Bearing Assembly | ||
| 38 | 43644 | Spindle Housing | ||
| 39 | 43312 | Spacer, Outside | ||
| 40 | 43296 | Spacer, Inside | ||
| 41 | 481025 | Seal, Bottom | ||
| 42 | 43297 | Spindle Bushing, Bottom | ||
| 43 | 481035 | Nut, Special 1 - 1/16-18 | ||
| 44 | 48114-04 | Grease Fitting | ||
| 45 | 48677 | Relief Fitting, Tapered Spindle | ||
| 46 | 482245 | Spring, Discharge Chute | ||
| 47 | 48038 | Guide, Roller | ||
| 48 | 482882 | Cutter Blade, 24.5" 72” | ||
| 49 | 482486 | Gearbox Assembly, Deck Drive | ||
| 50 | 481980 | Belt, Cutter Deck Drive, 72” | ||
| 51 | 45944 | Roller Shaft | ||
| 52 | 48926 | Tapered Hub, 1-1/8" Bore | ||
| 53 | 48141 | Tapered Hub, 1" Bore | ||
| 54 | 461842 | Idler Arm, Cutter Deck | ||
| 55 | 48224 | Bearings, Ball | ||
| 56 | 483215 | Pulley, Idler | ||
| 57 | 461929 | Lever Assembly, Deck Level (Incl. 77) | ||
| 58 | 482747 | Pulley, 6.95 O.D. - 72” | ||
| 59 | 422426 | Mounting Plate, Gearbox | ||
| 60 | 422677 | Belt Cover, LH - 72” | ||
| 422708 | Belt Cover, RH - 72” | |||
| 61 | 461516 | Pusharm (includes items 44, 63 & 64) | ||
| 62 | 423795 | Baffle, Custom Cut 72A | ||
| 63 | 04020-16 | Nut, Hex Head 5/8-18 UNF | ||
| 64 | 48763 | Rod End, 5/8" Male RH Thread | ||
| 65 | 04001-79 | Bolt, Hex Head 5/8-11 x 4-1/2" | ||
| 66 | 481597 | Spring, Cutter Deck | ||
| 67 | 482745 | Pulley, 6.35 O.D. - 72” | ||
| 68 | 04110-03 | U-Nut, 3/8-16 | ||
| 69 | 04021-13 | Nut, Hex Elastic Stop 5/8-11 | ||
| 70 | 423958 | Discharge Baffle 72” | ||
| 71 | 482295 | Wheel, Anti-Scalp | ||
| 72 | 43590 | Spacer, Spindle Bottom | ||
| 73 | 04003-23 | Bolt, Carriage 3/8-16 x 1” | ||
| 74 | 04040-11 | Flatwasher, 7/16-.500 x 1.25 x .083 | ||
| 75 | 04021-11 | Nut, Elastic Stop 7/16-14 | ||
| 76 | 483167 | Bolt, Deck Adjust | ||
| 77 | 04003-12 | Bolt, Carraige 5/16-18 x 3/4” | ||
| 78 | 04040-04 | Flatwasher, 5/16” | ||
| 79 | 04021-04 | Nut, Center Lock 5/16-18 | ||
| 80 | 483174 | Wear Pad |

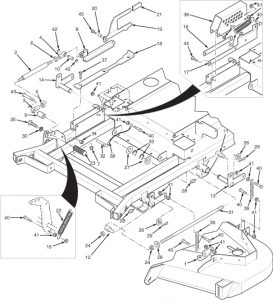

Cutter Deck Controls
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461929 | Lever Assembly, Deck Level | ||
| 2 | 481764 | Link, Deck Lift | ||
| 3 | 481765 | Rod End, Female - 1/2-20 RH | ||
| 4 | 481766 | Rod End, Female - 1/2-20 LH | ||
| 5 | 04020-27 | Nut, Jam 1/2-20 RH | ||
| 6 | 04020-28 | Nut, Jam 1/2-20 LH | ||
| 7 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 8 | 482429 | Slide Weldment, Height Adjustment | ||
| 9 | 43391 | Spacer, Decklift Pedal | ||
| 10 | 43487 | Pin, Decklift | ||
| 11 | 43526 | Swivel Joint, LH | ||
| 12 | 43527 | Swivel Joint, RH | ||
| 13 | 45904 | Bellcrank Weldment, LH Rear | ||
| 14 | 45905 | Bellcrank Weldment, LH Rear | ||
| 15 | 04021-05 | Locknut, 3/8-16 Center Lock | ||
| 16 | 422381 | Guide, Short | ||
| 17 | 423509 | Guide, Long | ||
| 18 | 422346 | Lockplate, Decklift | ||
| 19 | 46975 | Deck Latch (Includes items 20& 21) | ||
| 20 | 48100-14 | Bushing, .502 ID. | ||
| 21 | 481428 | Grip, Deck Latch | ||
| 22 | 481598 | Spring, Helper (61” & 72” Cutter Decks Only) | ||
| 23 | 424399 | Foot Pedal, Height Adjustment | ||
| 24 | 04020-09 | Nut, Hex 5/8-11 | ||
| 25 | 04019 -03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 26 | 04040-09 | Flatwasher, 5/8" (.656 x 1.312 x .095) | ||
| 27 | 04041-14 | Flatwasher, 1" (1.062 x 1.50 x .048) | ||
| 28 | 48114-04 | Grease Fitting | ||
| 29 | 04061-07 | Cotter Pin, 3/16 x 1” | ||
| 30 | 04030-07 | Lockwasher, 5/8” | ||
| 31 | 04004-44 | Stud, 5/8-11 x 22.0" | ||
| 32 | 04067-09 | Ring Pin, 1/2 x 3.06" | ||
| 33 | 04050-08 | Ring, Retaining 1" External "E" | ||
| 34 | 04021-07 | Nut, Hex Elastic Stop 1/2-13 | ||
| 35 | 04105-01 | Capscrew, 5/8-11 x 1-1/2” | ||
| 36 | 423463 | Bracket, Cutting Height Adjustment | ||
| 37 | 04014-03 | Screw, Cap 5/16-18 x 3" FHHS | ||
| 38 | 481547 | Lanyard, Deck Height Pin | ||
| 39 | 48540 | Chain | ||
| 40 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2" | ||
| 41 | 04019-04 | Nut, Hex Serrated Flange 3/8-16 | ||
| 42 | 04050-10 | Ring, Retaining 1/2" External "E" | ||
| 43 | 04001-74 | Bolt, Hex Head 1/2-13 x 3" | ||
| 44 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 45 | 04009-02 | Bolt, Shoulder 1/2 x 3/4" |

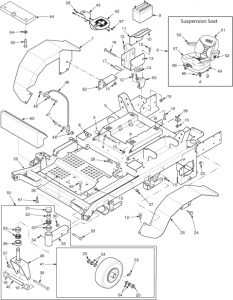

Sheet Metal Components-61V
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 451481 | Fender Weldment, RH | ||
| 2 | 04001-09 | Bolt, Hex Head, 5/16-18 x 1, Zinc | ||
| 3 | 43606 | Spacer | ||
| 4 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 5 | 423946 | Seat Plate | ||
| 6 | 9270 | Suspension Seat Assembly | ||
| 7 | 04001-45 | Bolt, Hex Head 3/8-16 x 2.0” | ||
| 8 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 9 | 482283 | Battery (Not Avail. through Scag) | ||
| 10 | 481780 | Pad, Battery Cover | ||
| 11 | 422682 | Cover, Battery | ||
| 12 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 13 | 423425 | Plate, Battery Box | ||
| 14 | 04029-01 | Wing Nut, 1/4-20 x 3/4" | ||
| 15 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 16 | 04003-30 | Bolt, Carriage 1/4-20 x 6" | ||
| 17 | 48661 | Rubber Pad | ||
| 18 | 43584 | Spacer, Caster Wheel | ||
| 19 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 20 | 482622 | Seal | ||
| 21 | 04021-09 | Lock Nut, 3/8-16, Elast. Stop | ||
| 22 | 461703 | Main Frame | ||
| 23 | 04019-04 | Nut, Hex Serrated Flange 3/8-16 | ||
| 24 | 04017-27 | Screw, Hex Serrated Flange 3/8-16 x 1” | ||
| 25 | 451480 | Fender Weldment, LH | ||
| 26 | 423489 | Foot Plate | ||
| 27 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 28 | 04001-19 | Bolt, Hex Head 3/8-16 x 1” | ||
| 29 | 04001-125 | Bolt, Hex Head 5/8-11 x 4” | ||
| 30 | 04021-13 | Nut, Hex Elastic Stop 5/8-11 | ||
| 31 | 481559 | Cap, Grease | ||
| 32 | 04021-20 | Nut, Hex Elastic Stop 1.0-14 | ||
| 33 | 481657 | Bearing W/Race | ||
| 34 | 482028-01 | Plug, 1/4-28 THD Form | ||
| 35 | 451825 | Extention Weldment, Caster 61V (LH) | ||
| 451451 | Extention Weldment, Caster 61V (RH) | |||
| 36 | 481025 | Seal, 2.00 OD. x 1.625 Bore | ||
| 37 | 04021-07 | Nut, Hex Elastic Stop 1/2-13 | ||
| 38 | 451416 | Yoke Weldment, Caster (61V & 72A) | ||
| 39 | 04001-167 | Bolt, Hex Head 1/2-13 x 9-1/2” (61V & 72A) | ||
| 40 | 43583 | Sleeve, Caster Wheel (61V, 72A) | ||
| 41 | 9278 | Wheel Assy, 61V, 72A (Inc. 20, 54, 55) | ||
| 42 | 9240 | Cup Holder Assembly | ||
| 43 | 423674 | Mounting Bracket, STT Cup Holder | ||
| 44 | 41020 | Weight (61” cutter deck only) | ||
| 45 | 481284 | Bumper, Rubber | ||
| 46 | 48566 | Cable, Seat Stop | ||
| 47 | 04001-59 | Bolt, Hex Head 1/4-20 x 1-1/4" | ||
| 48 | 04019-02 | Nut, Hex Serrated Flange 1/4-20 | ||
| 49 | 482942 | Shock Absorber Kit | ||
| 50 | 461908 | Caster Wheel Assy (Inc. 31 thru 43) 61V (LH) | ||
| 461909 | Caster Wheel Assy (Inc. 31 thru 43) 61V (RH) | |||
| 51 | 482940 | Back Cushion Kit | ||
| 52 | 482943 | Lumbar Kit | ||
| 482948 | Knob Kit | |||
| 53 | 482950 | Armrest Only | ||
| 482945 | Armrest Assembly Kit, LH | |||
| 482946 | Armrest Assembly Kit, RH | |||
| 54 | 482621 | Bearing w/ Race | ||
| 55 | 48114-07 | Grease Fitting | ||
| 56 | 424106 | Seat Stop | ||
| 57 | 482941 | Seat Cusion Kit | ||
| Seat Drain Kit (Included with Seat Cusion) | ||||
| 58 | 04001-01 | Bolt, Hex Head 1/4-20 x 3/4” | ||
| 59 | 04001-145 | Bolt, Hex Head 1/2-13 x 3.5” | ||
| 60 | 481825 | Footrest | ||
| 61 | 04001-71 | Bolt, Hex Head 1/2-13 x 1.5” | ||
| 62 | 423419 | Mounting Bracket, Battery | ||
| 63 | 423624 | Support Bracket, Battery Box | ||
| 64 | 04040-13 | Flat Washer 1/2-.562 x .1.375 x .109 | ||
| 65 | 482952 | Seat Adjustment, Track Set | ||
| 66 | 482944 | Weight Adjustment Kit | ||
| 482948 | Knob Kit | |||
| 67 | 04021-08 | Nut, Elastic Stop 1/4-20 |
Sheet Metal Components-72A
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 451481 | Fender Weldment, RH | ||
| 2 | 04001-09 | Bolt, Hex Head, 5/16-18 x 1, Zinc | ||
| 3 | 43606 | Spacer | ||
| 4 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 5 | 423946 | Seat Plate | ||
| 6 | 9270 | Suspension Seat Assembly | ||
| 7 | 04001-45 | Bolt, Hex Head 3/8-16 x 2.0” | ||
| 8 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 9 | 482283 | Battery (Not Avail. through Scag) | ||
| 10 | 481780 | Pad, Battery Cover | ||
| 11 | 422682 | Cover, Battery | ||
| 12 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 13 | 423425 | Plate, Battery Box | ||
| 14 | 04029-01 | Wing Nut, 1/4-20 x 3/4" | ||
| 15 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 16 | 04003-30 | Bolt, Carriage 1/4-20 x 6" | ||
| 17 | 48661 | Rubber Pad | ||
| 18 | 43584 | Spacer, Caster Wheel | ||
| 19 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 20 | 482622 | Seal | ||
| 21 | 04021-09 | Lock Nut, 3/8-16, Elast. Stop | ||
| 22 | 461703 | Main Frame | ||
| 23 | 04019-04 | Nut, Hex Serrated Flange 3/8-16 | ||
| 24 | 04017-27 | Screw, Hex Serrated Flange 3/8-16 x 1” | ||
| 25 | 451480 | Fender Weldment, LH | ||
| 26 | 423489 | Foot Plate | ||
| 27 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 28 | 04001-19 | Bolt, Hex Head 3/8-16 x 1” | ||
| 29 | 04001-125 | Bolt, Hex Head 5/8-11 x 4” | ||
| 30 | 04021-13 | Nut, Hex Elastic Stop 5/8-11 | ||
| 31 | 481559 | Cap, Grease | ||
| 32 | 04021-20 | Nut, Hex Elastic Stop 1.0-14 | ||
| 33 | 481657 | Bearing W/Race | ||
| 34 | 482028-01 | Plug, 1/4-28 THD Form | ||
| 35 | 451452 | Extention Weldment, Caster 72A (LH) | ||
| 451453 | Extention Weldment, Caster 72A (RH) | |||
| 36 | 481025 | Seal, 2.00 OD. x 1.625 Bore | ||
| 37 | 04021-07 | Nut, Hex Elastic Stop 1/2-13 | ||
| 38 | 451416 | Yoke Weldment, Caster (61V & 72A) | ||
| 39 | 04001-167 | Bolt, Hex Head 1/2-13 x 9-1/2” (61V & 72A) | ||
| 40 | 43583 | Sleeve, Caster Wheel (61V, 72A) | ||
| 41 | 9278 | Wheel Assy, 61V, 72A (Inc. 20, 54, 55) | ||
| 42 | 9240 | Cup Holder Assembly | ||
| 43 | 423674 | Mounting Bracket, STT Cup Holder | ||
| 44 | 41020 | Weight (61” cutter deck only) | ||
| 45 | 481284 | Bumper, Rubber | ||
| 46 | 48566 | Cable, Seat Stop | ||
| 47 | 04001-59 | Bolt, Hex Head 1/4-20 x 1-1/4" | ||
| 48 | 04019-02 | Nut, Hex Serrated Flange 1/4-20 | ||
| 49 | 482942 | Shock Absorber Kit | ||
| 50 | 461910 | Caster Wheel Assy (Inc. 31 thru 43) 72A (LH) | ||
| 461911 | Caster Wheel Assy (Inc. 31 thru 43) 72A (RH) | |||
| 51 | 482940 | Back Cushion Kit | ||
| 52 | 482943 | Lumbar Kit | ||
| 482948 | Knob Kit | |||
| 53 | 482950 | Armrest Only | ||
| 482945 | Armrest Assembly Kit, LH | |||
| 482946 | Armrest Assembly Kit, RH | |||
| 54 | 482621 | Bearing w/ Race | ||
| 55 | 48114-07 | Grease Fitting | ||
| 56 | 424106 | Seat Stop | ||
| 57 | 482941 | Seat Cusion Kit | ||
| Seat Drain Kit (Included with Seat Cusion) | ||||
| 58 | 04001-01 | Bolt, Hex Head 1/4-20 x 3/4” | ||
| 59 | 04001-145 | Bolt, Hex Head 1/2-13 x 3.5” | ||
| 60 | 481825 | Footrest | ||
| 61 | 04001-71 | Bolt, Hex Head 1/2-13 x 1.5” | ||
| 62 | 423419 | Mounting Bracket, Battery | ||
| 63 | 423624 | Support Bracket, Battery Box | ||
| 64 | 04040-13 | Flat Washer 1/2-.562 x .1.375 x .109 | ||
| 65 | 482952 | Seat Adjustment, Track Set | ||
| 66 | 482944 | Weight Adjustment Kit | ||
| 482948 | Knob Kit | |||
| 67 | 04021-08 | Nut, Elastic Stop 1/4-20 |

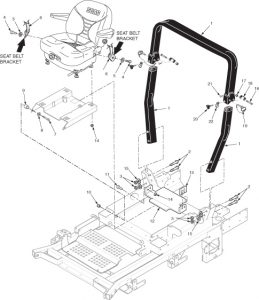

STT-BSD Roll-Over Protection System
| ID | Part Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 9514 | STT, ROPS Accessory (incl. all items below) | ||
| 2 | 04001-82 | Bolt, Hex Head 1/2-13 x 4-1/2” | ||
| 3 | 04021-19 | Nut, Center Lock 1/2-13 | ||
| 4 | 04001-178 | Bolt, Hex Head 7/16-20 x 1” | ||
| 5 | 04040-11 | Flatwasher, 7/16-.500 x 1.25 x .083 | ||
| 6 | 483150 | Seat Belt | ||
| 7 | 04001-45 | Bolt, Hex Head 3/8-16 x 2” | ||
| 8 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 9 | 43606 | Sleeve, Seat Base Mounting | ||
| 10 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 11 | 04001-09 | Bolt, Hex Head 5/16-18 x 1” | ||
| 12 | 461821 | Bracket, Seat Hold Down with Decal | ||
| 13 | 04030-05 | Lockwasher, 7/16 | ||
| 14 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 15 | 04040-13 | Flatwasher, 1/2-.562 x 1.375 x .109 | ||
| 16 | 04001-145 | Bolt, Hex Head 1/2-13 x 3-1/2” | ||
| 17 | 04021-19 | Nut, Center Lock 1/2-13 | ||
| 18 | 424407 | Bracket, Stop | ||
| 19 | 483262 | Pin | ||
| 20 | 483301 | Thumb Screw, 5/16-18 NC x 3-4” | ||
| 21 | 04062-06 | Hair Pin, Cotter | ||
| 22 | 483265 | Clamp |

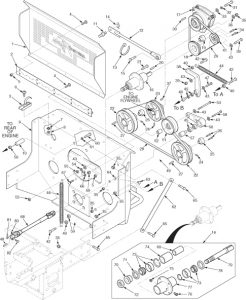

Deck Drive Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 423464 | Belt Guard, Rear | ||
| 2 | 481531 | Hinge, Rear Belt Guard | ||
| 3 | 481309 | Latch, Hood | ||
| 4 | 04003-07 | Carr. Bolt 1/4-20 x .5” | ||
| 5 | 04019-02 | Nut, Serr. Flg. 1/4-20 | ||
| 6 | 04010-01 | Screw, #10-32 x .5, Phillips Head | ||
| 7 | 04031-01 | Lock Washer, #10 | ||
| 8 | 04020-01 | Nut, #10-32 | ||
| 9 | 461805 | Weldment, Pump Mounting | ||
| 10 | 43506 | Spacer, Engine | ||
| 11 | 43507 | Stud, Anti-Rotation | ||
| 12 | 482433 | Linkage Assembly, Anti-Rotation | ||
| 13 | 48028-05 | Tie, Cable | ||
| 14 | 04069-01 | Pin, Rue | ||
| 15 | 04001-20 | Bolt, Hex Head 3/8-16 x 1.50” | ||
| 16 | 461697 | Spindle Assembly, Deck Drive | ||
| 17 | 461826 | Clutch, Electric PTO | ||
| 18 | 481398 | Pulley, 6.35” dia. Tapered Bore | ||
| 19 | 481536 | Hub, Tapered 1” dia. | ||
| 20 | 04063-06 | Key, 1/4 x 1/4 x 1.5” | ||
| 21 | 04001-175 | Bolt, Hex Head 5/16-18 x 1-1/2” Grade 8 | ||
| 22 | 482752 | Pulley, 6.25” OD, Tapered | ||
| 23 | 482791 | Pulley, 5.45” OD | ||
| 24 | 04012-04 | Set Screw, 5/16-18 x .375” | ||
| 25 | 481884 | Hub, Tapered 17mm Bore | ||
| 26 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 27 | 04063-27 | Key, 5mm x 5mm x 30mm | ||
| 28 | 481461 | Belt, Pump Drive | ||
| 29 | 481460 | Belt, Deck Drive | ||
| 30 | 04063-11 | Key, 1/4 x 1/4 x 2.5” | ||
| 31 | 04001-101 | Bolt, Hex Head 7/16-20 x 2.5” | ||
| 32 | 04030-05 | Lock Washer 7/16” | ||
| 33 | 04041-28 | Flat Washer 7/16 x .469 x 1.75 x .25” | ||
| 34 | 04001-109 | Bolt, Hex Head 1/4-20 x 1.375” | ||
| 35 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 36 | 04041-07 | Flat Washer 3/8, .391 x .938 x .105” | ||
| 37 | 04063-20 | Key, 1/4 x 1/4 x 1.00” | ||
| 38 | 461079 | Idler Arm | ||
| 39 | 04001-46 | Bolt, Hex Head 3/8-16 x 2.25” | ||
| 40 | 04019-04 | Nut, Serr. Flg. 3/8-16 | ||
| 41 | 48181 | Pulley, PTO Idler | ||
| 42 | 04001-136 | Bolt, Hex Head 3/8-16 x 1.5” Grade 8 | ||
| 43 | 04043-04 | Flat Washer 3/8” Grade 8 | ||
| 44 | 481522 | Spring | ||
| 45 | 48224 | Bearing | ||
| 46 | 43576 | Pivot, Idler - Short | ||
| 47 | 04001-145 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 48 | 04063-20 | Key, 1/4 x 1/4 x 1” | ||
| 49 | 04001-09 | Bolt, Hex Head 5/16-18 x 1.00” | ||
| 50 | 461015 | Idler Arm | ||
| 51 | 483211 | Pulley, Pump Idler | ||
| 52 | 43277 | Spacer | ||
| 53 | 04001-138 | Bolt, Hex Head 3/8-16 x 3.75” Grade 8 | ||
| 54 | 04030-04 | Lock Washer 3/8” .638 x .380 x .094” | ||
| 55 | 04020-04 | Nut 3/8-16 | ||
| 56 | 04021-05 | Nut, Elastic 3/8-16 | ||
| 57 | 43604 | Pivot, Idler - Long | ||
| 58 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 59 | 04021-10 | Nut, Elastic 5/16-18 | ||
| 60 | 04001-49 | Bolt, Hex Head 5/16-18 x 3.00” | ||
| 61 | 04030-03 | Lock Washer 5/16” | ||
| 62 | 422684 | Brace, Engine Mounting Plate | ||
| 63 | 481284 | Bumper, Rubber | ||
| 64 | 04019-03 | Nut, Serr. Flg. 5/16-18 | ||
| 65 | 04001-19 | Bolt, Hex Head 3/8-16 x 1.00” | ||
| 66 | 48030-09 | Clamp, Wire | ||
| 67 | 04003-12 | Bolt, Carr. 5/16-18 x .75” | ||
| 68 | 482438 | Driveshaft | ||
| 69 | 43296 | Spacer, Inside | ||
| 70 | 43297 | Bushing | ||
| 71 | 481025 | Seal, 2.00 OD x 1.625 Bore | ||
| 72 | 481035 | Nut, 1.06-18 | ||
| 73 | 481022 | Roller Bearing Assembly | ||
| 74 | 43312 | Spacer, Outside | ||
| 75 | 48114-04 | Grease Fitting 1/4-28 Self Tapping | ||
| 76 | 48677 | Relief Fitting | ||
| 77 | 43644 | Spindle Housing | ||
| 78 | 481024 | Seal, 2.00 OD x 1.5 Bore | ||
| 79 | 43534 | Shaft, Spindle | ||
| 80 | 04012-08 | Screw, Set 3/8-16 x 3/8” | ||
| 81 | 04021-05 | Nut, Center Lock 3/8-16 | ||
| 82 | 04001-21 | Bolt, Hex Head 3/8-16 x 1-3/4” |

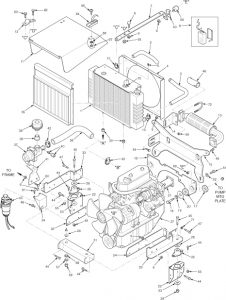

Radiator & Engine Brackets
| ID | Part Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461895 | Radiator | ||
| 2 | 481742 | Hose, Upper Radiator | ||
| 3 | 482366 | Hose, Lower Radiator | ||
| 4 | 423379 | Shroud, Fan | ||
| 5 | 04010-26 | Screw. #10-32 x 1/2” | ||
| 6 | Coolant Tank Assembly w/hose (Not Avail.Through Scag, Contact Briggs & Stratton) | |||
| 7 | 423639 | Support Bracket, Hood | ||
| 8 | 481284 | Bumper, Rubber | ||
| 9 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 10 | 48136-12 | Clamp, 1-1/2” Dia. | ||
| 11 | 451486 | Hood Weldment | ||
| 12 | 422703 | Hinge, Hood | ||
| 13 | 482404 | Muffler with Guard | ||
| 14 | 423640 | Brace, Muffler Support | ||
| 15 | 423637 | Mounting Bracket, Hood | ||
| 16 | 451487 | Mounting Bracket Weldment, Rear Engine Mount | ||
| 17 | 482363 | Engine ISO Mount, Rear | ||
| 18 | 04001-145 | Bolt, Hex Head 1/2-13 x 3-1/2” | ||
| 19 | 04030-06 | Lockwasher, 1/2” Spring | ||
| 20 | 04041-33 | Flatwasher, 1/2-.531 x 2.0 x .25 | ||
| 21 | 482403 | Manifold Extension, Exhaust | ||
| 22 | 423381 | Mounting Bracket, Engine | ||
| 23 | 451750 | Mounting Bracket Weldment, Engine L.H. | ||
| 24 | 423382 | Mounting Bracket, Engine L.H. | ||
| 25 | 482362 | Engine ISO Mount, Front | ||
| 26 | 04041-33 | Flatwasher, 1/2-.531 x 2.0 x .25 | ||
| 27 | 482270 | Engine, Briggs & Stratton 31hp Diesel(Spec. # ) Not Available Through Scag, Contact Briggs & Stratton | ||
| 28 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 29 | 482602 | Bushing, Radiator Isolator | ||
| 30 | 43621 | Bushing, Radiator ISO Mount | ||
| 31 | 423638 | Support Bracket, Radiator | ||
| 32 | 423383 | Mounting Bracket, Engine R.H. | ||
| 33 | 451751 | Mounting Bracket Weldment, Engine R.H. | ||
| 34 | 423424 | Mounting Bracket, Water Seperator | ||
| 35 | 451083 | Debris Screen | ||
| 36 | 482368 | Hose, Air Intake | ||
| 37 | 482405 | Air Cleaner Assembly w/mounting Band | ||
| 38 | 481816 | Pre Cleaner, Engine Air | ||
| 39 | 481924 | Adapter, Pre Cleaner | ||
| 40 | 481818 | Indicator, Air Cleaner | ||
| 41 | 423915 | Bracket, Air Cleaner | ||
| 42 | 48136-15 | Clamp, Hose 2-1/2” Dia | ||
| 43 | Fuel Filter, Water Seperator (Not Avail. Through Scag) | |||
| 44 | 04001-08 | Bolt, Hex Head 5/16-18 x 3/4” | ||
| 45 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2” | ||
| 46 | 481827 | Elbow, Exhaust | ||
| 47 | 04002-01 | Bolt, Hex Head M8-1.25 x 3mm | ||
| 48 | 04001-32 | Bolt, Hex Head 3/8-16 x 1-1/4” | ||
| 49 | 04017-16 | Bolt, Hex Head 5/16-18 x 3/4” | ||
| 50 | 423641 | Catch Bracket, Hood Latch | ||
| 51 | 04001-32 | Bolt, Hex Head 3/8-16 x 1-1/4” | ||
| 52 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 53 | 04041-32 | Flatwasher, 1/2-.531 x 2.13 x .1345 | ||
| 54 | 04003-04 | Bolt, Carriage 5/16-18 x 1” | ||
| 55 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 56 | 482603 | Rubber Isolator | ||
| 57 | 04041-35 | Flatwasher, 7/16-.469 x 2.0 x .1345 | ||
| 58 | 04021-21 | Nut, Center Lock 7/16-14 | ||
| 59 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 60 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4” | ||
| 61 | Bolt, (Not Available Through Scag,Contact Briggs & Stratton) | |||
| 62 | 04003-04 | Bolt, Carriage 5/16-18 x 1” | ||
| 63 | 04017-16 | Bolt, Hex Head 5/16-18 x 3/4” Serr. Flange | ||
| 64 | 481309 | Latch, Hood | ||
| 65 | 04010-21 | Screw, #10-32 x .375 | ||
| 66 | 04031-01 | Lockwasher, #10 Spring | ||
| 67 | 04020-01 | Nut, #10 | ||
| 68 | 482601 | Ring, Isolator | ||
| 69 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 70 | 04021-01 | Nut, Elastic Stop #10-32 | ||
| 71 | 04030-03 | Lockwasher, 5/16 Spring | ||
| 72 | 48633 | Muffler Clamp 1-1/2” Dia. |

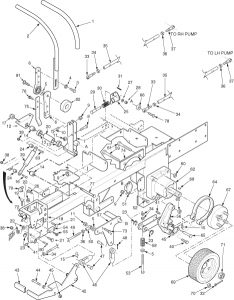

Brake And Steering Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 482340 | Grip, Handle Bar | ||
| 2 | 461914 | Handle Bar, LH (Includes item 1) | ||
| 461923 | Handle Bar, RH (Includes item 1) | |||
| 3 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 4 | 04030-03 | Lockwasher, 5/16" | ||
| 5 | 483250 | Rubber Spacer | ||
| 6 | 483238 | Bar, Control Lever | ||
| 7 | 451483 | Control Lever Weldment, LH | ||
| 451484 | Control Lever Weldment, RH | |||
| 8 | 04001-17 | Bolt, Hex Head 5/16-18 x 2" | ||
| 9 | 04021-10 | Nut, Hex Elastic Stop 5/16-18 | ||
| 10 | 04001-45 | Bolt, Hex Head 3/8-16 x 2" | ||
| 11 | 04021-09 | Nut, Hex Elastic Stop | ||
| 12 | 423488 | Mount, Control Linkage | ||
| 13 | 48224 | Ball Bearings, Neutral Return | ||
| 14 | 43607 | Spacer | ||
| 15 | 04069-01 | Pin, Rue Cotter 3/8 Dia. | ||
| 16 | 04001-13 | Bolt, Hex Head, 5/16-18 x 2.75 Zinc | ||
| 17 | 04021-13 | Nut, Hex Elastic Stop 5/8-11 | ||
| 18 | 461601 | Bracket, Control Lever LH | ||
| 461602 | Bracket, Control Lever RH | |||
| 19 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 20 | 43600 | Spacer, Bearing | ||
| 21 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 22 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 23 | 04050-01 | Ring, Retaining 5/8" External "E" | ||
| 24 | 43602 | Spacer | ||
| 25 | 45918 | Bracket, Neutral Return | ||
| 26 | 04003-02 | Bolt, Carriage 1/4-20 x 3/4" | ||
| 27 | 04040-14 | Flatwasher, 1/4" (.312 x .750 x .065) | ||
| 28 | 04021-08 | Nut, Hex Elastic Stop 1/4-20 | ||
| 29 | 43477 | Pin, Retaining Spring | ||
| 30 | 481389 | Spring | ||
| 31 | 04060-01 | Roll Pin, Spring 5/32 x 3/4" | ||
| 32 | 04061-06 | Pin, Cotter 9/16 x 1-1/2" | ||
| 33 | 482586 | Rod End, Male 3/8-24 RH Thread | ||
| 34 | 04020-25 | Nut, 3/8-24 RH Thread | ||
| 35 | 43629 | Tube, Control Link Air Cooled Engine | ||
| 43624 | Tube, Control Link Liquid Cooled Engine | |||
| 36 | 04020-26 | Nut, Hex 3/8-24 LH Thread | ||
| 37 | 482585 | Rod End, Male 3/8-24 LH Thread | ||
| 38 | 04021-10 | Locknut, 5/16-18, Elastic Stop | ||
| 39 | 482794 | Gas Damper | ||
| 40 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2” | ||
| 41 | 48114-04 | Grease Fitting | ||
| 42 | 461082 | Lever, Parking Brake (Includes item 43) | ||
| 43 | 481548 | Grip, Parking Brake | ||
| 44 | 04001-22 | Bolt, Hex Head 3/8-16 x 2-3/4" | ||
| 45 | 04019-04 | Nut, Hex Serrated Flange 3/8-16 | ||
| 46 | 48343-04 | Clevis, Traction Control | ||
| 47 | 04064-02 | Pin, Clevis 3/8-16 x 1-1/16" | ||
| 48 | 04061-02 | Pin, Cotter 3/32 x .75 | ||
| 49 | 04004-34 | Rod, Parking Brake | ||
| 50 | 48544 | Rod End, LH Thread | ||
| 51 | 48796 | Bushing, Self Align | ||
| 52 | 04001-08 | Bolt, Hex Head 5/16-18 x 3/4" | ||
| 53 | 04001-147 | Bolt, Hex Hd 3/8-24 x 5-1/4", 23/4" Thrd | ||
| 54 | 481637 | Switch | ||
| 55 | 04010-12 | Screw, Hex SLTD WSHR Head #10 32 x 3/4" | ||
| 56 | 461471 | Brake Linkage, LH | ||
| 461472 | Brake Linkage, RH | |||
| 57 | 45953 | Bellcrank, Brake Actuator | ||
| 58 | 48807 | Spring | ||
| 59 | 04001-163 | Bolt, Hex Head 1/2-13 x 3-3/4" | ||
| 60 | 04021-19 | Locknut, Hex 1/2-13 Center Lock | ||
| 61 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2" | ||
| 62 | 481787 | Wheel Motor, Ross | ||
| 63 | 04001-12 | Bolt, Hex Head, 5/16-18 x 1.75, Zinc | ||
| 64 | 481601 | Brake Band Assembly | ||
| 65 | 04064-16 | Pin, Clevis 3/8" Dia. x 1.93" | ||
| 66 | 43063 | Spacer | ||
| 67 | 461438 | Wheel Hub/Brake Drum Assembly | ||
| 68 | 04063-25 | Key, Woodruff 5/16 x 1” | ||
| 69 | 481850 | Wheel Assembly 24 x 12-12 Turf Master | ||
| 481851 | Rim W/Valve Stem | |||
| 481852 | Tire, 24 x 12-12 Turf Master | |||
| 70 | 04028-02 | Lug Nut, 1/2-20 | ||
| 71 | 48680 | Nut, Hex Castle | ||
| 72 | 422373 | Threaded Plate | ||
| 73 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2" | ||
| 74 | 423279 | Plate Weldment, Motor Backing | ||
| 75 | 423491 | Actuator Switch | ||
| 76 | 04017-16 | Bolt, Hex Serrated Flange 5/16-18 x 3/4" | ||
| 77 | 04003-36 | Bolt, Carriage 3/8-16 x 4-3/4” | ||
| 78 | 04001-19 | Bolt, Hex Head 3/8-16 x 1” | ||
| 79 | 481638 | Switch | ||
| 80 | 04001-168 | Bolt, Hex Head 3/8-16 x 1-1/4” Grade 8 | ||
| 81 | 04003-38 | Bolt, Carriage 5/16-18 x 1-1/2” | ||
| 82 | 483269 | Knob |

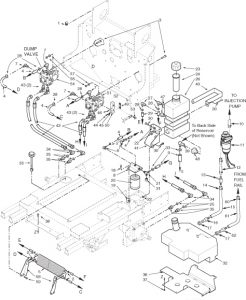

Fuel And Hydraulic System
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 04110-01 | U-Nut 1/4-20 | ||
| 2 | 48136-13 | Hose Clamp, 0.69 dia. | ||
| 3 | 04001-03 | Bolt, Hex Head 1/4-20 x 2.0” | ||
| 4 | 48811 | Hose, 3/8” ID Pushlock - (order by inch) | ||
| 5 | 482505 | Cooler, Oil | ||
| 6 | 482266-01 | Elbow, 90 Degree - 9/16 O-ring x 3/8 Hose | ||
| 7 | 482266-02 | Elbow, 90 Degree - 3/4 O-ring x 3/8 Hose | ||
| 8 | 482266-02 | Oil Filter Base | ||
| 9 | 482563 | Hose Assembly, 1/2” ID (Tank to Filter Base) | ||
| 10 | 48058 | Fuel Hose to Carb., 1/4” ID (order by inch) | ||
| 11 | Fuel Filter (Purchase from Briggs & Stratton) | Available through the individual engine manufacturer | ||
| 12 | 48058 | Fuel Hose, 1/4” ID. (order by inch) | ||
| 13 | 481308 | Valve, Shutoff | ||
| 14 | 48059-04 | Clamp, Fuel Hose 5/16 ID | ||
| 15 | 481178 | Fuel Hose, 5/16” ID. (order by inch) | ||
| 16 | 481312 | Hose Fitting | ||
| 17 | 48309 | Bushing | ||
| 18 | 04001-09 | Bolt, Hex Head 5/16-18 x1.0” Zinc | ||
| 19 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 20 | 48758 | Oil Filter | ||
| 21 | 482483 | Tee, 3/4 O-ring x JIC x 1/2” Hose | ||
| 22 | 04021-08 | Nut, Hex Elastic Stop 1/4-20 | ||
| 23 | 481164 | Cap, Hydraulic Tank | ||
| 24 | 481507 | Insert, Filler Neck | ||
| 25 | 48603-02 | O-Ring | ||
| 26 | 461451 | Oil Reservoir Assembly (includes 24, 27, 39) | ||
| 27 | 482572 | Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring | ||
| 28 | 48136-13 | Hose Clamp, 0.69 dia. | ||
| 29 | 48811 | Hose, 3/8” ID, Pushlock (order by inch) | ||
| 30 | 04010-10 | Screw, Phillips Head, 1/4-20 | ||
| 31 | 48571-02 | Cap | ||
| 32 | 461452 | Fuel Tank Assembly (includes items 23 & 24) | ||
| 33 | 48136-05 | Clamp, Hose | ||
| 34 | 48350-05 | Elbow, 90 Degree, 7/8-14 THD | ||
| 35 | 48938-02 | Bushing, 7/8-14 JIC x 3/4-16 O-Ring | ||
| 36 | 423701 | Support Bracket, Fuel Tank | ||
| 37 | 04019-03 | Nut, 5/16-18 Serrated Flange | ||
| 38 | 04003-02 | Elbow, 90 Degree | ||
| 39 | 482574 | Elbow, 90 Degree | ||
| 40 | 423513 | Strap, Hydraulic Tank | ||
| 41 | 423485 | Support Bracket, Hydraulic Tank | ||
| 42 | 482516 | Hose Assembly, Pump | ||
| 43 | 48350-05 | Elbow, 90 Degree 7/8-14 Thread | ||
| 44 | 04001-59 | Bolt, Hex Head, 1/4-20 x 1-14” | ||
| 45 | 04030-02 | Lockwasher, 1/4” Spring | ||
| 46 | 04060-06 | Roll Pin, Spring 3/16 x 3/4” | ||
| 47 | 482571 | Bushing, .56 Dia. | ||
| 48 | 482573 | Bushing, .78 Dia. | ||
| 49 | 422694 | Clamp Plate, Pump Control | ||
| 50 | 481793 | Block, Pump Control | ||
| 51 | 481792 | Pump, Left Hand, BDP-21L-305 | ||
| 52 | 04021-09 | Nut, Hex, Elastic Stop 3/8-16 | ||
| 53 | 04001-32 | Bolt, Hex Head, 3/8-16 x 1-1/4 | ||
| 54 | 481819 | Pump, Right Hand, BDP-21L-403 | ||
| 55 | 482498 | Cap, Fuel Tank W/Gauge | ||
| 56 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 57 | 04043-04 | Flatwasher, 3/8” (.391 x .938 x .105) Grade 8 | ||
| 58 | 423524 | Mounting Bracket - LH, Oil Cooler | ||
| 423525 | Mounting Bracket - RH, Oil Cooler | |||
| 59 | 04001-08 | Bolt, Hex Head 5/16-18 x 3/4” | ||
| 60 | 48059-03 | Clamp, 3/16 Hose | ||
| 61 | 481179 | Hose, 3/16” I.D. (order by inch) | ||
| 62 | 481778 | Hose Fitting, Straight DAPCO |

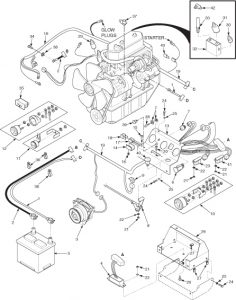

Electrical System
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481176-08 | Cable, Positive Battery | ||
| 2 | 481176-07 | Cable, Negative Battery | ||
| 3 | 461826 | Clutch, Electric PTO | ||
| 4 | 481808 | Module, Interlock | ||
| 5 | Battery (not available through Scag) | |||
| 6 | 483162 | Switch, PTO | ||
| 7 | 48798 | Switch, Key (Includes Nut and Lockwasher) | ||
| 48017-03 | Nut, 5/8-32 Special | |||
| 48017-04 | Lock Washer 5/8” | |||
| 8 | 481806 | Cable, Control (Throttle, Choke) | ||
| 9 | 481638 | Switch, Seat | ||
| 10 | 481183 | Gauge, Water Temperature | ||
| 11 | 481805 | Gauge, Oil Pressure | ||
| 12 | 481184 | Gauge, Voltmeter | ||
| 13 | 424028 | Panel, Instrument Panel | ||
| 14 | 42413 | Bracket, Fuse Holder | ||
| 15 | 04010-11 | Screw, #10-32 x 1.5” Phillips | ||
| 16 | 04021-01 | Nut, #10-32 Elastic Stop | ||
| 17 | 48297 | Fuse Holder w/ 20 Amp Fuse | ||
| 18 | 48298 | Fuse, 20 Amp | ||
| 19 | 483057 | Harness, Wiring | ||
| 20 | 04010-01 | Screw, #10-32 x .5” Phillips | ||
| 21 | 04020-01 | Nut, Hex #10-32 | ||
| 22 | 04031-01 | Lock Washer #10 | ||
| 23 | 483013 | Relay | ||
| 24 | 04001-01 | Bolt, Hex Head 1/4-20 x .75” | ||
| 25 | 04030-02 | Lock Washer 1/4” | ||
| 26 | 451081 | Base, Instrument Panel | ||
| 27 | 04110-01 | U-Nut, 1/4-20 | ||
| 28 | 48017-02 | Key & Ring Assembly | ||
| 29 | 481791 | Sender Unit, Water Temperature | ||
| 30 | 481812 | Switch, Low Oil Pressure | ||
| 31 | 481811 | Sender Unit, Oil Pressure | ||
| 32 | 481813 | Manifold, Oil | ||
| 33 | 481919 | Hose, Oil Pressure Sender | ||
| 34 | 04002-17 | Bolt, Hex Head M8-1.25 x 14 | ||
| 35 | 483072 | Hour Meter | ||
| 36 | 48030-09 | Clamp, Cable .5” ID | ||
| 48030-10 | Clamp, Cable .75” ID | |||
| 37 | 481335 | Boot, Positive Battery Terminal | ||
| 38 | 04031-03 | Washer, Star | ||
| 39 | 481182 | Indicator Light, Glow Plugs | ||
| 40 | 482361 | Indicator Light, Water Separator | ||
| 41 | 481826 | Relay, 40 Amp | ||
| 42 | 482365 | Fitting, Oil Sender - 45 Degree | ||
| 43 | 481824 | Fuse, 40 Amp | ||
| 481089 | Fuse Holder (Not Shown) |

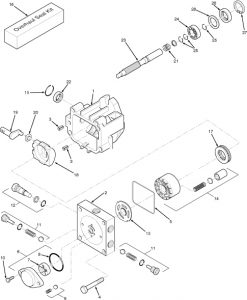

Hydraulic Pump Assembly – BDP-21L
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | HG 2510065 | Housing Kit (Includes Housing, Journal Bearing) | ||
| 2 | HG 2510066 | End Cap | ||
| 3 | HG 50641 | Straight Headless Pin | ||
| 4 | HG 50633 | Socket Head Screw | ||
| 5 | HG 50381 | End Cap Gasket | ||
| 6 | HG 2510071 | Charge Pump Kit (Includes Charge Cover, Gerotor Assy., O-Ring) | ||
| 7 | HG 50406 | Gerotor Assembly | ||
| 8 | HG 9004100-1430 | O-Ring | ||
| 9 | HG 70402 | Charge Relief Valve Kit | ||
| 10 | HG 9007200-3116 | Socket Head Screw | ||
| 11 | HG 2510027 | Check Valve Kit (Includes Check Plug, Spring, O-Ring, Orifice Check Valve) | ||
| 12 | HG 2513030 | Bypass Valve Kit (Includes Bypass Valve, O-Ring, Back-up Ring) | ||
| 13 | HG 50619 | Valve Plate | ||
| 14 | HG 70080 | Cylinder Block Kit | ||
| 15 | HG 50574 | Trunion Seal Retaining Ring | ||
| 16 | HG 2510073 | Overhaul Kit | ||
| 17 | HG 50552 | Roller Thrust Bearing | ||
| 18 | HG 50203 | Swash Plate | ||
| 19 | HG 2000014 | Trunnion Arm | ||
| 20 | HG 2000015 | Guide Slot | ||
| 21 | HG 2000025 | Block Spring | ||
| 22 | HG 2000037 | Lip Seal | ||
| 23 | HG 50601 | Pump Shaft | ||
| 24 | HG 2000032 | Ball Bearing | ||
| 25 | HG 2000038 | Retaining Ring | ||
| 26 | HG 51092 | Lip Seal | ||
| 27 | HG 2000038 | Retaining Ring | ||
| 28 | HG 2000023 | Spacer |
