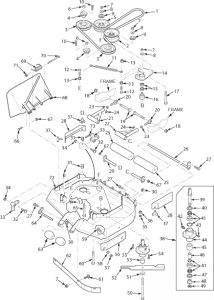

36A Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 483615 | Cutter Deck Belt, 36A | ||
| 2 | 483210 | Pulley, 5” Idler | ||
| 3 | 482744 | Pulley, 5.75 O.D. | ||
| 4 | 48926 | Tapered Hub, 1.125 Bore | ||
| 5 | 483215 | Pulley, 5” Idler | ||
| 6 | 04020-09 | Nut, 5/8-11 UNC | ||
| 7 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 8 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 9 | 424367 | Dust Shield | ||
| 10 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 11 | 482797 | Deck Spring | ||
| 12 | 04001-136 | Bolt, Hex Head 3/8-16 x 1-1/2” Grade 8 | ||
| 13 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 14 | 462134 | Idler Arm Assembly (Incl. #15) | ||
| 15 | 48224 | Bearing | ||
| 16 | 43660 | Pivot, Idler | ||
| 17 | 04001-54 | Bolt, Hex Head 3/8-16 x 3” | ||
| 18 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 19 | 04001-82 | Bolt, Hex Head 1/2-13 x 4-1/2” | ||
| 20 | 48542 | Rod End, Male 1/2-20 RH THread | ||
| 21 | 461756 | Push Arm, RH (Incl. #20, 23) | ||
| 22 | 461755 | Push Arm, LH (Incl. #20, 23) | ||
| 23 | 04020-25 | Nut, Jam 1/2-20 | ||
| 24 | 48114-08 | Grease Fitting, 90 Degree | ||
| 25 | 48038 | Guide Roller | ||
| 26 | 451118 | Shaft Weldment | ||
| 27 | 04001-09 | Bolt, Hex Head 5/16-18 x 1” | ||
| 28 | 424783 | Belt Cover, SWZV 36A | ||
| 29 | 451724 | Push Arm Shaft | ||
| 30 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 31 | 04110-03 | U-Nut, 3/8-16 | ||
| 32 | 04003-42 | Bolt, Carriage 7/16-14 x 2-1/4” | ||
| 33 | 483361 | Lever, Deck Level | ||
| 34 | 04021-11 | Nut, Elastic Stop 7/16-14 | ||
| 35 | 04030-03 | Lockwasher, 5/16” | ||
| 36 | 04021-22 | Nut, Elastic Stop 5/16-18 Grade 8 | ||
| 37 | 481625-01 | Knob w/Stud | ||
| 38 | 461663 | Spindle Assembly | ||
| 39 | 43589 | Shaft, Spindle | ||
| 40 | 481024 | Seal, Upper | ||
| 41 | 481022 | Bearing Assembly | ||
| 42 | 48114-04 | Grease Fitting | ||
| 43 | 48677 | Relief Fitting, Spindle | ||
| 44 | 43644 | Spindle Housing | ||
| 45 | 43312 | Spacer, Outside | ||
| 46 | 43296 | Spacer, Inside | ||
| 47 | 481025 | Seal, Cutter Spindle Bottom | ||
| 48 | 43297 | Spindle Bushing | ||
| 49 | 481035 | Nut, Spindle | ||
| 50 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2” | ||
| 51 | 04043-06 | Flatwasher, 5/8” | ||
| 52 | 481707 | Cutter Blade, 18” | ||
| 53 | 43590 | Spacer, Spindle | ||
| 54 | 04001-176 | Bolt, Hex Head 5/16-18 x 1-3/4” Grade | ||
| 55 | 04063-08 | Key, 1/4 x 1/4 x 2” | ||
| 56 | 483174 | Pad, Deck Wear | ||
| 57 | 04021-04 | Nut, Center Lock 5/16-18 | ||
| 58 | 04040-04 | Flatwasher, 5/16” | ||
| 59 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4” | ||
| 60 | 04001-77 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 61 | 04003-23 | Bolt, Carriage 3/8-16 x 1” | ||
| 62 | 423783 | Baffle, 36A | ||
| 63 | 482295 | Wheel, Anti-Scalp | ||
| 64 | 451926 | Shaft Weldment | ||
| 65 | 04001-51 | Bolt, Hex Head 3/8-16 x 3-3/4” | ||
| 66 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 67 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 68 | 461295 | Disharge Chute Assembly | ||
| 69 | 482245 | Spring, Discharge Chute | ||
| 70 | 04001-154 | Bolt, Hex Head 5/16-18 x 4-1/4’ | ||
| 71 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 72 | 462123 | Cutter Deck Weldment w/Decals 3 | ||
| 73 | 04107-04 |

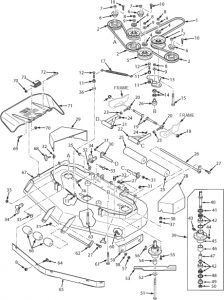

48V Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 483647 | Cutter deck Belt, SWZV 48V | ||
| 2 | 482744 | Pulley, 5.75 O.D. | ||
| 3 | 483210 | Pulley, 5” Idler | ||
| 4 | 424367 | Dust Shield | ||
| 5 | 483215 | Pulley, 5” Idler | ||
| 6 | 48926 | Tapered Hub, 1.125 Bore | ||
| 7 | 04020-09 | Nut, 5/8-11 UNC | ||
| 8 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 9 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 10 | 04001-172 | Bolt, Heax Head 1/4-20 x 1” Grade 8 | ||
| 11 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 12 | 04001-136 | Bolt, Hex Head 3/8-16 x 1-1/2” Grade 8 | ||
| 13 | 461632 | Idler Arm Assembly (Incl. #14) | ||
| 14 | 48224 | Bearing | ||
| 15 | 04001-54 | Bolt, Hex Head 3/8-16 x 3” | ||
| 16 | 43660 | Pivot, Idler | ||
| 17 | 482797 | Deck Spring | ||
| 18 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 19 | 04001-74 | Bolt, Hex Head 1/2-13 x 3” | ||
| 20 | 48542 | Rod End, Male 1/2-20 RH Thread | ||
| 21 | 461756 | Push Arm, RH (Incl. #20, 23) | ||
| 22 | 461755 | Push Arm, LH (Incl. #20, 23) | ||
| 23 | 04020-25 | Nut, Jam 1/2-20 | ||
| 24 | 48114-08 | Grease Fitting, 90 Degree | ||
| 25 | 48038 | Guide Roller | ||
| 26 | 451118 | Shaft Weldment | ||
| 27 | 04001-09 | Bolt, Hex Head 5/16-18 x 1” | ||
| 28 | 424655 | Belt Cover, RH | ||
| 29 | 424656 | Belt Cover, LH | ||
| 30 | 451724 | Push Arm Shaft | ||
| 31 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 32 | 04110-03 | U-Nut, 3/8-16 | ||
| 33 | 04003-42 | Bolt, Carriage 7/16-14 x 2-1/4” | ||
| 34 | 483361 | Lever, Deck Level | ||
| 35 | 04021-11 | Nut, Elastic Stop 7/16-14 | ||
| 36 | 43063 | Spacer | ||
| 37 | 04030-03 | Lockwasher, 5/16” | ||
| 38 | 04021-22 | Nut, Elastic Stop 5/16-18 Grade 8 | ||
| 39 | 461663 | Spindle Assembly | ||
| 40 | 43589 | Shaft, Spindle | ||
| 41 | 481024 | Seal, Upper | ||
| 42 | 481022 | Bearing Assembly | ||
| 43 | 48114-04 | Grease Fitting | ||
| 44 | 48677 | Relief Fitting, Cutter Spindle | ||
| 45 | 43644 | Spindle Housing | ||
| 46 | 43312 | Spacer, Ouside | ||
| 47 | 43296 | Spacer, Inside | ||
| 48 | 481025 | Seal, Cutter Spindle Bottom | ||
| 49 | 43297 | Spindle Bushing | ||
| 50 | 481035 | Nut, Spindle | ||
| 51 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2” | ||
| 52 | 04043-06 | Flatwasher, 5/8” | ||
| 53 | 481706 | Cutter Blade, 16-1/2” (48V) | ||
| 54 | 43590 | Spacer, Spindle | ||
| 55 | 04001-176 | Bolt, Hex Head 5/16-18 x 1-3/4” Grade 8 | ||
| 56 | 04063-08 | Key, 1/4 x 1/4 x 2” | ||
| 57 | 04021-04 | Nut, Center Lock 5/16-18 | ||
| 58 | 04040-04 | Flatwasher, 5/16” | ||
| 59 | 483176 | Pad, Deck Wear | ||
| 60 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4” | ||
| 61 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 62 | 45944 | Shaft Weldment | ||
| 63 | 04001-51 | Bolt, Hex Head 3/8-16 x 3-3/4” | ||
| 64 | 04003-23 | Bolt, Carriage 3/8-16 x 1” | ||
| 65 | 424839 | Baffle, 48V | ||
| 66 | 482295 | Wheel, Anti-Scalp | ||
| 67 | 462124 | Cutter Deck Weldment w/Decals, 48V | ||
| 68 | 481625-01 | Knob w/Stud | ||
| 69 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 70 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 71 | 461844 | Discharge Chute - 48V | ||
| 72 | 04001-154 | Bolt, Hex Head 5/16-18 x 4-1/4” | ||
| 73 | 483378 | Spring, Discharge Chute | ||
| 74 | 04107-03 | Bolt, Hex Head 3/8-16 x 1-1/4” Special Lock (Rear) | ||
| 04107-04 | Bolt, Hex Head 3/8-16 x 2” Special Lock (Front) |
52V Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 483001 | Cutter Deck Belt, SWZV 52V | ||
| 2 | 482744 | Pulley, 5.75 O.D. | ||
| 3 | 483210 | Pulley, 5” Idler | ||
| 4 | 424367 | Dust Shield | ||
| 5 | 483215 | Pulley, 5” Idler | ||
| 6 | 48926 | Tapered Hub, 1.125 Bore | ||
| 7 | 04020-09 | Nut, 5/8-11 UNC | ||
| 8 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 9 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 10 | 04001-172 | Bolt, Heax Head 1/4-20 x 1” Grade 8 | ||
| 11 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 12 | 04001-136 | Bolt, Hex Head 3/8-16 x 1-1/2” Grade 8 | ||
| 13 | 461632 | Idler Arm Assembly (Incl. #14) | ||
| 14 | 48224 | Bearing | ||
| 15 | 04001-54 | Bolt, Hex Head 3/8-16 x 3” | ||
| 16 | 43660 | Pivot, Idler | ||
| 17 | 482797 | Deck Spring | ||
| 18 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 19 | 04001-74 | Bolt, Hex Head 1/2-13 x 3” | ||
| 20 | 48542 | Rod End, Male 1/2-20 RH Thread | ||
| 21 | 461756 | Push Arm, RH (Incl. #20, 23) | ||
| 22 | 461755 | Push Arm, LH (Incl. #20, 23) | ||
| 23 | 04020-25 | Nut, Jam 1/2-20 | ||
| 24 | 48114-08 | Grease Fitting, 90 Degree | ||
| 25 | 48038 | Guide Roller | ||
| 26 | 451118 | Shaft Weldment | ||
| 27 | 04001-09 | Bolt, Hex Head 5/16-18 x 1” | ||
| 28 | 424655 | Belt Cover, RH | ||
| 29 | 424656 | Belt Cover, LH | ||
| 30 | 451724 | Push Arm Shaft | ||
| 31 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 32 | 04110-03 | U-Nut, 3/8-16 | ||
| 33 | 04003-42 | Bolt, Carriage 7/16-14 x 2-1/4” | ||
| 34 | 483361 | Lever, Deck Level | ||
| 35 | 04021-11 | Nut, Elastic Stop 7/16-14 | ||
| 36 | 43063 | Spacer | ||
| 37 | 04030-03 | Lockwasher, 5/16” | ||
| 38 | 04021-22 | Nut, Elastic Stop 5/16-18 Grade 8 | ||
| 39 | 461663 | Spindle Assembly | ||
| 40 | 43589 | Shaft, Spindle | ||
| 41 | 481024 | Seal, Upper | ||
| 42 | 481022 | Bearing Assembly | ||
| 43 | 48114-04 | Grease Fitting | ||
| 44 | 48677 | Relief Fitting, Cutter Spindle | ||
| 45 | 43644 | Spindle Housing | ||
| 46 | 43312 | Spacer, Ouside | ||
| 47 | 43296 | Spacer, Inside | ||
| 48 | 481025 | Seal, Cutter Spindle Bottom | ||
| 49 | 43297 | Spindle Bushing | ||
| 50 | 481035 | Nut, Spindle | ||
| 51 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2” | ||
| 52 | 04043-06 | Flatwasher, 5/8” | ||
| 53 | 481707 | Cutter Blade, 18” (52V) | ||
| 54 | 43590 | Spacer, Spindle | ||
| 55 | 04001-176 | Bolt, Hex Head 5/16-18 x 1-3/4” Grade 8 | ||
| 56 | 04063-08 | Key, 1/4 x 1/4 x 2” | ||
| 57 | 04021-04 | Nut, Center Lock 5/16-18 | ||
| 58 | 04040-04 | Flatwasher, 5/16” | ||
| 59 | 483176 | Pad, Deck Wear | ||
| 60 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4” | ||
| 61 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 62 | 45944 | Shaft Weldment | ||
| 63 | 04001-51 | Bolt, Hex Head 3/8-16 x 3-3/4” | ||
| 64 | 04003-23 | Bolt, Carriage 3/8-16 x 1” | ||
| 65 | 424839 | Baffle, 48V | ||
| 66 | 482295 | Wheel, Anti-Scalp | ||
| 67 | 462125 | Cutter Deck Weldment w/Decals, 52V | ||
| 68 | 481625-01 | Knob w/Stud | ||
| 69 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 70 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 71 | 461844 | Discharge Chute - 48V | ||
| 72 | 04001-154 | Bolt, Hex Head 5/16-18 x 4-1/4” | ||
| 73 | 483378 | Spring, Discharge Chute | ||
| 74 | 04107-03 | Bolt, Hex Head 3/8-16 x 1-1/4” Special Lock (Rear) | ||
| 04107-04 | Bolt, Hex Head 3/8-16 x 2” Special Lock (Front) |

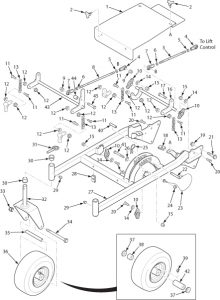

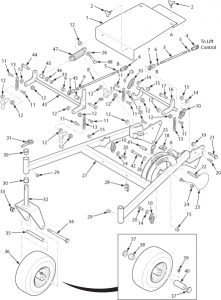

36″ Cutter Deck Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 462120 | Belt Cover, 36A | ||
| 2 | 481625-01 | Knob w/Stud | ||
| 3 | 483553 | Linkage Assembly, Deck Lift (Incl. #4, 5, 6, 7) | ||
| 483649 | Link, Lift Rod (Rod Only) | |||
| 4 | 483330 | Rod End, 1/2-20 LH | ||
| 5 | 04020-28 | Nut, 1/2-20 UNF LH Jam | ||
| 6 | 04020-27 | Nut, 1/2-20 RH | ||
| 7 | 483329 | Rod End, 1/2-20 RH | ||
| 8 | 483614 | Linkage Assembly, Deck Lift (Incl. #4, 5, 6, 7) | ||
| 483650 | Link, Lift Rod (Rod Only) | |||
| 9 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 10 | 483628 | Bearing | ||
| 11 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 12 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 13 | 48540 | Chain | ||
| 14 | 04040-15 | Flatwasher, 5/16-.375 x .875 x .083 | ||
| 15 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 16 | 451944 | Rear Deck Lift Weldment | ||
| 17 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2” | ||
| 18 | 04110-03 | U-Nut, 3/8-16 | ||
| 19 | 04112-05 | Nut, Spiral Lock 1/2-13 | ||
| 20 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4” | ||
| 21 | 04017-36 | Capscrew, Serrated Flange 1/2-13 x 1” | ||
| 22 | 483345 | Ring Pin Assembly (Incl. #23) | ||
| 23 | 483346 | Lanyard | ||
| 24 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 25 | 04062-04 | Hair Pin Cotter, .177 x 3-1/4” | ||
| 26 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 27 | 462117 | Frame Weldment | ||
| 28 | 04110-04 | U-Nut, 3/8-16 | ||
| 29 | 48114-05 | Grease Fitting | ||
| 30 | 48100-17 | Bushing, 1.003 I.D. | ||
| 31 | 04066-01 | Quick Pin | ||
| 32 | 45325 | Caster Wheel Yoke | ||
| 33 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 34 | 04001-80 | Bolt, Hex Head 1/2-13 x 6-1/2” | ||
| 35 | 43511 | Sleeve, Caster Wheel | ||
| 36 | 9276 | Caster Wheel Assembly | ||
| 37 | 481770 | Bearing, Oilite | ||
| 38 | 481846 | Roller Bearing (Short) | ||
| 39 | 48114-03 | Grease Fitting | ||
| 40 | 43554 | Spacer | ||
| 41 | 04001-22 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 42 | 481769 | Roller Bearing (Long) | ||
| 43 | 451967 | Front Deck Lift Weldment | ||
| 44 | 43391 | Spacer | ||
| 45 | 04001-46 | Bolt, Hex Head 1/2-13 x 2-3/4’ |
48″ Cutter Deck Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 462121 | Belt Cover, 48V/52V | ||
| 2 | 481625-01 | Knob w/Stud | ||
| 3 | 483553 | Linkage Assembly, Deck Lift (Incl. #4, 5, 6, 7) | ||
| 483649 | Link, Lift Rod (Rod Only) | |||
| 4 | 483330 | Rod End, 1/2-20 LH | ||
| 5 | 04020-28 | Nut, 1/2-20 UNF LH Jam | ||
| 6 | 04020-27 | Nut, 1/2-20 RH | ||
| 7 | 483329 | Rod End, 1/2-20 RH | ||
| 8 | 483607 | Linkage Assembly, Deck Lift (Incl. #4, 5, 6, 7) | ||
| 483648 | Link, Lift Rod (Rod Only) | |||
| 9 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 10 | 483628 | Bearing | ||
| 11 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 12 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 13 | 48540 | Chain | ||
| 14 | 04040-15 | Flatwasher, 5/16-.375 x .875 x .083 | ||
| 15 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 16 | 451944 | Rear Deck Lift Weldment | ||
| 17 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2” | ||
| 18 | 04110-03 | U-Nut, 3/8-16 | ||
| 19 | 04112-05 | Nut, Spiral Lock 1/2-13 | ||
| 20 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4” | ||
| 21 | 04017-36 | Capscrew, Serrated Flange 1/2-13 x 1” | ||
| 22 | 483345 | Ring Pin Assembly (Incl. #23) | ||
| 23 | 483346 | Lanyard | ||
| 24 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 25 | 04062-04 | Hair Pin Cotter, .177 x 3-1/4” | ||
| 26 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 27 | 462118 | Frame Weldment, 48V | ||
| 28 | 04110-04 | U-Nut, 3/8-16 | ||
| 29 | 48114-05 | Grease Fitting | ||
| 30 | 48100-17 | Bushing, 1.003 I.D. | ||
| 31 | 04066-01 | Quick Pin | ||
| 32 | 45325 | Caster Wheel Yoke | ||
| 33 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 34 | 04001-80 | Bolt, Hex Head 1/2-13 x 6-1/2” | ||
| 35 | 43511 | Sleeve, Caster Wheel | ||
| 36 | 9276 | Caster Wheel Assembly | ||
| 37 | 481770 | Bearing, Oilite | ||
| 38 | 481846 | Roller Bearing (Short) | ||
| 39 | 48114-03 | Grease Fitting | ||
| 40 | 481769 | Roller Bearing (Long) | ||
| 41 | 43554 | Spacer | ||
| 42 | 04001-22 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 43 | 451943 | Front Deck Lift Weldment | ||
| 44 | 04001-74 | Bolt, Hex Head 1/2-13 x 3” | ||
| 45 | 43391 | Spacer | ||
| 46 | 04019-06 | Nut, Serrated Flange 1/2-13 | ||
| 47 | 483374 | Spring Deck Lift | ||
| 48 | 04001-136 | Bolt, Hex Head 3/8-16 x 1-1/2” Grade 8 | ||
| 49 | 04001-66 | Bolt, Hex Head 1/2-13 x 2-3/4” |
52″ Cutter Deck Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 462121 | Belt Cover, 48V/52V | ||
| 2 | 481625-01 | Knob w/Stud | ||
| 3 | 483553 | Linkage Assembly, Deck Lift (Incl. #4, 5, 6, 7) | ||
| 483649 | Link, Lift Rod (Rod Only) | |||
| 4 | 483330 | Rod End, 1/2-20 LH | ||
| 5 | 04020-28 | Nut, 1/2-20 UNF LH Jam | ||
| 6 | 04020-27 | Nut, 1/2-20 RH | ||
| 7 | 483329 | Rod End, 1/2-20 RH | ||
| 8 | 483607 | Linkage Assembly, Deck Lift (Incl. #4, 5, 6, 7) | ||
| 483648 | Link, Lift Rod (Rod Only) | |||
| 9 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 10 | 483628 | Bearing | ||
| 11 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 12 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 13 | 48540 | Chain | ||
| 14 | 04040-15 | Flatwasher, 5/16-.375 x .875 x .083 | ||
| 15 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 16 | 451944 | Rear Deck Lift Weldment | ||
| 17 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2” | ||
| 18 | 04110-03 | U-Nut, 3/8-16 | ||
| 19 | 04112-05 | Nut, Spiral Lock 1/2-13 | ||
| 20 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4” | ||
| 21 | 04017-36 | Capscrew, Serrated Flange 1/2-13 x 1” | ||
| 22 | 483345 | Ring Pin Assembly (Incl. #23) | ||
| 23 | 483346 | Lanyard | ||
| 24 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 25 | 04062-04 | Hair Pin Cotter, .177 x 3-1/4” | ||
| 26 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 27 | 462119 | Frame Weldment, 52V | ||
| 28 | 04110-04 | U-Nut, 3/8-16 | ||
| 29 | 48114-05 | Grease Fitting | ||
| 30 | 48100-17 | Bushing, 1.003 I.D. | ||
| 31 | 04066-01 | Quick Pin | ||
| 32 | 45325 | Caster Wheel Yoke | ||
| 33 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 34 | 04001-80 | Bolt, Hex Head 1/2-13 x 6-1/2” | ||
| 35 | 43511 | Sleeve, Caster Wheel | ||
| 36 | 9276 | Caster Wheel Assembly | ||
| 37 | 481770 | Bearing, Oilite | ||
| 38 | 481846 | Roller Bearing (Short) | ||
| 39 | 48114-03 | Grease Fitting | ||
| 40 | 481769 | Roller Bearing (Long) | ||
| 41 | 43554 | Spacer | ||
| 42 | 04001-22 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 43 | 451943 | Front Deck Lift Weldment | ||
| 44 | 04001-74 | Bolt, Hex Head 1/2-13 x 3” | ||
| 45 | 43391 | Spacer | ||
| 46 | 04019-06 | Nut, Serrated Flange 1/2-13 | ||
| 47 | 483374 | Spring Deck Lift | ||
| 48 | 04001-136 | Bolt, Hex Head 3/8-16 x 1-1/2” Grade 8 | ||
| 49 | 04001-66 | Bolt, Hex Head 1/2-13 x 2-3/4” |

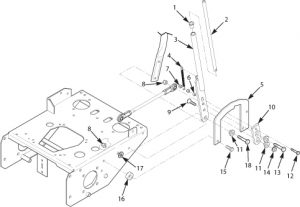

Cutter Deck Lift Lever
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 483453-14 | Bearing, .625 ID Plastic | ||
| 2 | 43747 | Actuator Rod, Deck Latch | ||
| 3 | 451940 | Handle Weldment, Deck Latch | ||
| 4 | 483600 | Spring, Deck Latch | ||
| 5 | 424651 | Deck Latch Arc | ||
| 6 | 43212 | Sleeve | ||
| 7 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 8 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 9 | 04014-05 | Capscrew, 1/2-13 x 1-1/2” | ||
| 10 | 424652 | Deck Latch, Outer | ||
| 11 | 43748 | Bushing, Deck Latch | ||
| 12 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2” | ||
| 13 | 04001-66 | Bolt, Hex Head 1/2-13 x 2-3/4” | ||
| 14 | 04019-06 | Nut, Serrated Flange 1/2-13 | ||
| 15 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 16 | 43077 | Spacer | ||
| 17 | 04040-07 | Flatwasher, 1/2-.531 x 1.062 x .095 | ||
| 18 | 04001-183 | Bolt, Hex Head 1/2-13 x 1-3/4” |

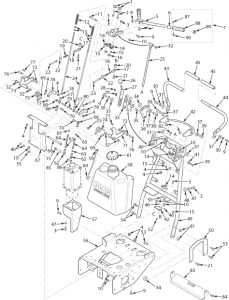

Handle Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481885-04 | Knob, 3/8-16 Locking | ||
| 2 | 43759 | Spacer, Tracking | ||
| 3 | 04001-08 | Bolt, Hex Head 5/16-18 x 3/4” | ||
| 4 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 5 | 451938 | V-Bar Weldment | ||
| 6 | 483453-15 | Bearing, Plastic 1” I.D. | ||
| 7 | 483551 | Sonso Grip (Incl. Module, Items 87, 88, 89, 90) | ||
| 8 | 04011-16 | Screw, #10-32 x 1/2” Self Tap | ||
| 9 | 04001-19 | Bolt, Hex Head 3/8-16 x 1” | ||
| 10 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 11 | 04009-10 | Bolt, Shoulder 1/2 x 2-3/4” | ||
| 12 | 481879 | Spring, Tracking Adjustment | ||
| 13 | 04020-25 | Nut, Jam 3/8-16 | ||
| 14 | 48796 | Bearing, Self Aligning 5/8” I.D. | ||
| 15 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 16 | 04042-04 | Flatwasher | ||
| 17 | 483719 | Rod End, 3/8-16 Female | ||
| 18 | 04020-14 | Nut, Jam 3/8-16 UNC | ||
| 19 | 483634 | Spring, Tracking Adjustment | ||
| 20 | 43572 | Spacer | ||
| 21 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 22 | 43751 | Bushing, Pivot Slide | ||
| 23 | 04001-188 | Bolt, Hex Head 3/8-24 x 3-1/2” | ||
| 24 | 44167 | Rod, Tracking | ||
| 25 | 462113 | Steering Shaft Weldment | ||
| 26 | 48092 | Knob, Shifter | ||
| 27 | 451936 | Handle Weldment, Speed Control | ||
| 28 | 04019-03 | Nut, Serrated Flange | ||
| 29 | 483601 | Spring, Speed Control Slide | ||
| 30 | 04030-04 | Lockwasher, 3/8” Spring | ||
| 31 | 43086 | Bushing, Speed Adjust Lever | ||
| 32 | 483453-12 | Bearing, PLastic 1/2” I.D. | ||
| 33 | 483460 | Slide, Speed Control | ||
| 34 | 43077 | Spacer | ||
| 35 | 04014-01 | Capscrew, 1/4-20 x 3/4” | ||
| 36 | 424593 | Detent Plate | ||
| 37 | 04041-07 | Flatwasher, 3/8-.391 x .938 x .105 | ||
| 38 | 04009-11 | Bolt, Shoulder | ||
| 39 | 04001-26 | Bolt, Hex Head 3/8-16 x 1-1/4” | ||
| 40 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 41 | 43212 | Sleeve | ||
| 42 | 451902 | Reference Bar Weldment | ||
| 43 | 462026 | Stability Bar Weldment, RH | ||
| 44 | 462025 | Stability Bar Weldment, LH | ||
| 45 | 483577 | Grip, Control Lever | ||
| 46 | 04012-02 | Set Screw, 1/4-28 x 1/4” | ||
| 47 | 04030-03 | Lockwasher, 5/16” Spring | ||
| 48 | 04040-04 | Flatwasher, 5/16-.344 x .688 x .065 | ||
| 49 | 462112 | Handle Bar Weldment | ||
| 50 | 424651 | Deck Latch Arc | ||
| 51 | 451899 | Steering Plate Weldment | ||
| 52 | 04063-15 | Key, 3/16 x 3/16 x 3/4” | ||
| 53 | 04017-29 | Bolt, Serrated Flange 3/8-16 x 1-1/2” | ||
| 54 | 04017-26 | Bolt, Serrated Flange 3/8-16 x 1-1/4” | ||
| 55 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 56 | 462107 | Engine Deck Weldment | ||
| 57 | 424610 | Oil Reservoir Mounting Bracket | ||
| 58 | 462050 | Fuel Tank Assembly | ||
| 59 | 483557 | Fuel Pick Up Line | ||
| 60 | 482571 | Bushing, .56 Dia. Viton | ||
| 61 | 482547 | Cap, Fuel Tank | ||
| 62 | 483652 | Rod End, 5/16-24 RH Female | ||
| 63 | 04020-31 | Nut, 5/16-24 UNF Jam | ||
| 64 | 483653 | Link, Pump to V-Bar 5/16-24 | ||
| 65 | 04020-30 | Nut, 5/16-24 UNF Jam LH | ||
| 66 | 483651 | Rod End, 5/16-24 LH Female | ||
| 67 | 424609 | Control Pivot Base | ||
| 68 | 04009-12 | Bolt, Shoulder 1/2 x 6” | ||
| 69 | 04009-12 | Bolt, Shoulder 5/16 x 3/8” | ||
| 70 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4” | ||
| 71 | 462110 | Steering Arm Assembly, LH | ||
| 72 | 483453-11 | Bearing, Plastic | ||
| 73 | 462111 | Steering Arm Assembl,RH | ||
| 74 | 483683 | Steering Return Spring, LH | ||
| 75 | 483684 | Steering Return Spring, RH | ||
| 76 | 04009-09 | Bolt, Shoulder 1/2 x 1” | ||
| 77 | 04069-02 | Pin, Rue Cotter 1/2” Dia. | ||
| 78 | 424605 | V-Link | ||
| 79 | 04001-135 | Bolt, Hex Head 3/8-16 x 3/4” Grade 8 | ||
| 80 | 43750 | Spacer, V-Link to Tracking Rod | ||
| 81 | 43775 | Spacer | ||
| 82 | 04001-08 | Bolt, Hex Head 5/16-18 x 3/4” | ||
| 83 | 424666 | Shield, Pump | ||
| 84 | 04017-16 | Bolt, Serrated Flange 5/16-18 x 3/4” | ||
| 85 | 42749 | Spacer, V-Link to Pump | ||
| 86 | 04001-21 | Bolt, Hex Head 3/8-16 x 1-3/4” | ||
| 87 | 04025-03 | Nut, Metric M5 x 0.8 | ||
| 88 | 483721 | Grip, Magura | ||
| 89 | 483722 | Cap, Grip End | ||
| 90 | 04015-17 | Socket Head Cap Screw, 5mm - 0.8 x 30mm | ||
| 91 | 43754 | Spacer | ||
| 92 | 451899 | Steering Plate Weldment |

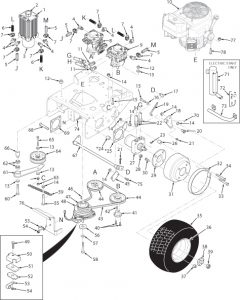

Hydraulic And Lower Brake Assembly-36
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 462056 | Oil Reservoir Assembly | ||
| 2 | 483094 | Cap, Oil Reservoir | ||
| 3 | 48462-01 | Oil Filter | ||
| 4 | 482266-01 | Elbow, 90Degree O-Ring 9/16-18 x 3/8” Hose | ||
| 5 | 483146 | Hose, 3/8 Push Lock - Gray (Order by Inch) | ||
| 6 | 48811 | Hose, 3/8 Push Lock -Black (Order by Inch) | ||
| 7 | 48136-13 | Clamp, Hose .69” Max. Dia. | ||
| 8 | 483591 | Pump, RH (PG-1HQQ-DC1X-XXXX) SWZV | ||
| 9 | 483590 | Pump, LH (PG-1KQQ-DF1X-XXXX) SWZV | ||
| 10 | 483263 | Engine, 16hp Kawasaki FH480V | ||
| 482927 | Engine, 17hp Kawasaki FH541V | |||
| 482928 | Engine, 19hp Kawasaki FH580V | |||
| 483708 | Engine, 23hp Kawasaki Electric Start FH680V | |||
| 11 | 48485-01 | Elbow, 45 Degree | ||
| 12 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 13 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 14 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 15 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 16 | 04030-03 | Lockwasher, 3/8” | ||
| 17 | 43032 | Swivel Joint | ||
| 18 | 451941 | Brake Actuator Weldment, LH | ||
| 451947 | Brake Actuator Weldment, RH | |||
| 19 | 44170 | Rod, Brake Lower | ||
| 20 | 43415 | Bushing, Brake | ||
| 21 | 04062-01 | Hair Pin Cotter, .094 x 1.62” | ||
| 22 | 481265 | Hose Assembly | ||
| 23 | 04063-07 | Key, 3/16 x 3/4” Woodruff | ||
| 24 | 43391 | Spacer | ||
| 27 | 483388 | Wheel Motor | ||
| 28 | 04021-19 | Nut, Center Lock 1/2-13 | ||
| 29 | 46928 | Wheel Hub Assembly (Incl. #30) | ||
| 30 | 04008-01 | Bolt, Serrated 1/2-20 | ||
| 31 | 422215 | Brake Drum | ||
| 32 | 481470 | Brake Band Assembly | ||
| 33 | 04001-46 | Bolt, Hex Head 3/8-16 x 2-1/4’ | ||
| 34 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 35 | 481870 | Wheel Assembly, 18 x 6.5-8 (36) | ||
| 36 | 481890 | Rim w/ Valve Stem (36) | ||
| 481871 | Tire, 18 x 6.5-8 (36) | |||
| 37 | 04028-02 | Lug Nut | ||
| 38 | 422214 | Lockwasher, Wheel Motor | ||
| 39 | 48679 | Hex Castle Nut, 3/4-28 UNEF | ||
| 40 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 41 | 482085 | Tapered Hub | ||
| 42 | 04063-14 | Key, 5.0 x 5.0 x 25mm | ||
| 43 | 483520 | Belt, Pump Drive | ||
| 44 | 482649 | Pulley, 5.45 O.D. Tapered Bore | ||
| 45 | 424810 | Plate, Brake Keeper | ||
| 46 | 04063-29 | Key, 1/4 x 1/4 x 3-3/4” | ||
| 47 | 483598 | Pulley, 4.0 O.D. - 1” Bore | ||
| 48 | 462108 | Clutch Assembly | ||
| 49 | 462108 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 50 | 424421 | Retainer, Clutch Pad | ||
| 51 | 483289 | Rubber Pad | ||
| 52 | 424422 | Plate, Backing | ||
| 53 | 48030-09 | Clamp, Cable | ||
| 54 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 55 | 04001-138 | Bolt, Hex Head 3/8-16 x 3-3/4” Grade 8 | ||
| 56 | 04041-28 | Flatwasher, 7/16-.469 x 1.75 x .25 | ||
| 57 | 04030-05 | Lockwasher, 7/16” Spring | ||
| 58 | 04102-05 | Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch | ||
| 59 | 483526 | Spring, Transmission Idler | ||
| 60 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 61 | 462109 | Idler Arm Assembly | ||
| 62 | 48224 | Bearing | ||
| 63 | 04021-05 | Nut, Center Lock 3/8-16 | ||
| 64 | 483213 | Pulley, 4-1/2” Idler | ||
| 65 | 04001-161 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 66 | 43734 | Pivot, Idler | ||
| 67 | 451939 | Brake Bellcrank Weldment | ||
| 68 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2” (36 & 48) | ||
| 69 | 424600 | Plate, Wheel Motor | ||
| 70 | 48114-05 | Grease Fitting | ||
| 71 | 483734 | Muffler | Electric Start Model Only | |
| 72 | 48xxxx | Clamp | Electric Start Model Only | |
| 73 | 483733 | Exhuast Manifold | Electric Start Model Only | |
| 74 | 04003-04 | Bolt, Carriage 5/16-18 x 1” | ||
| 75 | 04017-26 | Bolt, Serrated Flange 3/8-16 x 3/4” | ||
| 76 | 424709 | Plate, Clutch Bracket | ||
| 77 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 78 | 04001-11 | Bolt, Hex Head 5/16-18 x 1-1/2” |
Hydraulic And Lower Brake Assembly-48
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 462056 | Oil Reservoir Assembly | ||
| 2 | 483094 | Cap, Oil Reservoir | ||
| 3 | 48462-01 | Oil Filter | ||
| 4 | 482266-01 | Elbow, 90Degree O-Ring 9/16-18 x 3/8” Hose | ||
| 5 | 483146 | Hose, 3/8 Push Lock - Gray (Order by Inch) | ||
| 6 | 48811 | Hose, 3/8 Push Lock -Black (Order by Inch) | ||
| 7 | 48136-13 | Clamp, Hose .69” Max. Dia. | ||
| 8 | 483591 | Pump, RH (PG-1HQQ-DC1X-XXXX) SWZV | ||
| 9 | 483590 | Pump, LH (PG-1KQQ-DF1X-XXXX) SWZV | ||
| 10 | 483263 | Engine, 16hp Kawasaki FH480V | ||
| 482927 | Engine, 17hp Kawasaki FH541V | |||
| 482928 | Engine, 19hp Kawasaki FH580V | |||
| 483708 | Engine, 23hp Kawasaki Electric Start FH680V | |||
| 11 | 48485-01 | Elbow, 45 Degree | ||
| 12 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 13 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 14 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 15 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 16 | 04030-03 | Lockwasher, 3/8” | ||
| 17 | 43032 | Swivel Joint | ||
| 18 | 451941 | Brake Actuator Weldment, LH | ||
| 451947 | Brake Actuator Weldment, RH | |||
| 19 | 44170 | Rod, Brake Lower | ||
| 20 | 43415 | Bushing, Brake | ||
| 21 | 04062-01 | Hair Pin Cotter, .094 x 1.62” | ||
| 22 | 481265 | Hose Assembly | ||
| 23 | 04063-07 | Key, 3/16 x 3/4” Woodruff | ||
| 24 | 43391 | Spacer | ||
| 27 | 483388 | Wheel Motor | ||
| 28 | 04021-19 | Nut, Center Lock 1/2-13 | ||
| 29 | 46928 | Wheel Hub Assembly (Incl. #30) | ||
| 30 | 04008-01 | Bolt, Serrated 1/2-20 | ||
| 31 | 422215 | Brake Drum | ||
| 32 | 481470 | Brake Band Assembly | ||
| 33 | 04001-46 | Bolt, Hex Head 3/8-16 x 2-1/4’ | ||
| 34 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 35 | 481867 | Wheel Assembly, 18 x 8.5-8 (48 & 52) | ||
| 36 | 481868 | Rim w/Valve Stem (48 & 52) | ||
| 481869 | Tire, 18 x 8.5-8 (48 & 52) | |||
| 37 | 04028-02 | Lug Nut | ||
| 38 | 422214 | Lockwasher, Wheel Motor | ||
| 39 | 48679 | Hex Castle Nut, 3/4-28 UNEF | ||
| 40 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 41 | 482085 | Tapered Hub | ||
| 42 | 04063-14 | Key, 5.0 x 5.0 x 25mm | ||
| 43 | 483520 | Belt, Pump Drive | ||
| 44 | 482649 | Pulley, 5.45 O.D. Tapered Bore | ||
| 45 | 424810 | Plate, Brake Keeper | ||
| 46 | 04063-29 | Key, 1/4 x 1/4 x 3-3/4” | ||
| 47 | 483598 | Pulley, 4.0 O.D. - 1” Bore | ||
| 48 | 462108 | Clutch Assembly | ||
| 49 | 462108 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 50 | 424421 | Retainer, Clutch Pad | ||
| 51 | 483289 | Rubber Pad | ||
| 52 | 424422 | Plate, Backing | ||
| 53 | 48030-09 | Clamp, Cable | ||
| 54 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 55 | 04001-138 | Bolt, Hex Head 3/8-16 x 3-3/4” Grade 8 | ||
| 56 | 04041-28 | Flatwasher, 7/16-.469 x 1.75 x .25 | ||
| 57 | 04030-05 | Lockwasher, 7/16” Spring | ||
| 58 | 04102-05 | Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch | ||
| 59 | 483526 | Spring, Transmission Idler | ||
| 60 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 61 | 462109 | Idler Arm Assembly | ||
| 62 | 48224 | Bearing | ||
| 63 | 04021-05 | Nut, Center Lock 3/8-16 | ||
| 64 | 483213 | Pulley, 4-1/2” Idler | ||
| 65 | 04001-161 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 66 | 43734 | Pivot, Idler | ||
| 67 | 451939 | Brake Bellcrank Weldment | ||
| 68 | 04001-52 | Bolt, Hex Head 1/2-13 x 2-1/2” (36 & 48) | ||
| 69 | 424600 | Plate, Wheel Motor | ||
| 70 | 48114-05 | Grease Fitting | ||
| 71 | 483734 | Muffler | Electric Start Model Only | |
| 72 | 48xxxx | Clamp | Electric Start Model Only | |
| 73 | 483733 | Exhuast Manifold | Electric Start Model Only | |
| 74 | 04003-04 | Exhuast Manifold | ||
| 75 | 04017-26 | Bolt, Serrated Flange 3/8-16 x 3/4” | ||
| 76 | 424709 | Plate, Clutch Bracket | ||
| 77 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 78 | 04001-11 | Bolt, Hex Head 5/16-18 x 1-1/2” |
Hydraulic And Lower Brake Assembly-52
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 462056 | Oil Reservoir Assembly | ||
| 2 | 483094 | Cap, Oil Reservoir | ||
| 3 | 48462-01 | Oil Filter | ||
| 4 | 482266-01 | Elbow, 90Degree O-Ring 9/16-18 x 3/8” Hose | ||
| 5 | 483146 | Hose, 3/8 Push Lock - Gray (Order by Inch) | ||
| 6 | 48811 | Hose, 3/8 Push Lock -Black (Order by Inch) | ||
| 7 | 48136-13 | Clamp, Hose .69” Max. Dia. | ||
| 8 | 483591 | Pump, RH (PG-1HQQ-DC1X-XXXX) SWZV | ||
| 9 | 483590 | Pump, LH (PG-1KQQ-DF1X-XXXX) SWZV | ||
| 10 | 483263 | Engine, 16hp Kawasaki FH480V | ||
| 482927 | Engine, 17hp Kawasaki FH541V | |||
| 482928 | Engine, 19hp Kawasaki FH580V | |||
| 483708 | Engine, 23hp Kawasaki Electric Start FH680V | |||
| 11 | 48485-01 | Elbow, 45 Degree | ||
| 12 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 13 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 14 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 15 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2” | ||
| 16 | 04030-03 | Lockwasher, 3/8” | ||
| 17 | 43032 | Swivel Joint | ||
| 18 | 451941 | Brake Actuator Weldment, LH | ||
| 451947 | Brake Actuator Weldment, RH | |||
| 19 | 44170 | Rod, Brake Lower | ||
| 20 | 43415 | Bushing, Brake | ||
| 21 | 04062-01 | Hair Pin Cotter, .094 x 1.62” | ||
| 22 | 481265 | Hose Assembly | ||
| 23 | 04063-07 | Key, 3/16 x 3/4” Woodruff | ||
| 24 | 43391 | Spacer | ||
| 25 | 424644 | Brake Plate (52) | ||
| 26 | 43674 | Spacer (52) | ||
| 27 | 483388 | Wheel Motor | ||
| 28 | 04021-19 | Nut, Center Lock 1/2-13 | ||
| 29 | 46928 | Wheel Hub Assembly (Incl. #30) | ||
| 30 | 04008-01 | Bolt, Serrated 1/2-20 | ||
| 31 | 422215 | Brake Drum | ||
| 32 | 481470 | Brake Band Assembly | ||
| 33 | 04001-46 | Bolt, Hex Head 3/8-16 x 2-1/4’ | ||
| 34 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 35 | 481867 | Wheel Assembly, 18 x 8.5-8 (48 & 52) | ||
| 36 | 481868 | Rim w/Valve Stem (48 & 52) | ||
| 481869 | Tire, 18 x 8.5-8 (48 & 52) | |||
| 37 | 04028-02 | Lug Nut | ||
| 38 | 422214 | Lockwasher, Wheel Motor | ||
| 39 | 48679 | Hex Castle Nut, 3/4-28 UNEF | ||
| 40 | 04001-172 | Bolt, Hex Head 1/4-20 x 1” Grade 8 | ||
| 41 | 482085 | Tapered Hub | ||
| 42 | 04063-14 | Key, 5.0 x 5.0 x 25mm | ||
| 43 | 483520 | Belt, Pump Drive | ||
| 44 | 482649 | Pulley, 5.45 O.D. Tapered Bore | ||
| 45 | 424810 | Plate, Brake Keeper | ||
| 46 | 04063-29 | Key, 1/4 x 1/4 x 3-3/4” | ||
| 47 | 483598 | Pulley, 4.0 O.D. - 1” Bore | ||
| 48 | 462108 | Clutch Assembly | ||
| 49 | 462108 | Bolt, Hex Head 5/16-18 x 1-3/4” | ||
| 50 | 424421 | Retainer, Clutch Pad | ||
| 51 | 483289 | Rubber Pad | ||
| 52 | 424422 | Plate, Backing | ||
| 53 | 48030-09 | Clamp, Cable | ||
| 54 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 55 | 04001-138 | Bolt, Hex Head 3/8-16 x 3-3/4” Grade 8 | ||
| 56 | 04041-28 | Flatwasher, 7/16-.469 x 1.75 x .25 | ||
| 57 | 04030-05 | Lockwasher, 7/16” Spring | ||
| 58 | 04102-05 | Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch | ||
| 59 | 483526 | Spring, Transmission Idler | ||
| 60 | 04001-62 | Bolt, Hex Head 3/8-16 x 3-1/4” | ||
| 61 | 462109 | Idler Arm Assembly | ||
| 62 | 48224 | Bearing | ||
| 63 | 04021-05 | Nut, Center Lock 3/8-16 | ||
| 64 | 483213 | Pulley, 4-1/2” Idler | ||
| 65 | 04001-161 | Bolt, Hex Head 3/8-16 x 2-3/4” | ||
| 66 | 43734 | Pivot, Idler | ||
| 67 | 451939 | Brake Bellcrank Weldment | ||
| 68 | 04001-163 | Bolt, Hex Head 1/2-13 x 3-3/4” (52) | Used Only on Machines Equipped with a 52” Cutter Deck | |
| 69 | 424600 | Plate, Wheel Motor | ||
| 70 | 48114-05 | Grease Fitting | ||
| 71 | 483734 | Muffler | Electric Start Model Only | |
| 72 | 48xxxx | Clamp | Electric Start Model Only | |
| 73 | 483733 | Exhuast Manifold | Electric Start Model Only | |
| 74 | 04003-04 | Bolt, Carriage 5/16-18 x 1” | ||
| 75 | 04017-26 | Bolt, Serrated Flange 3/8-16 x 3/4” | ||
| 76 | 424709 | Plate, Clutch Bracket | ||
| 77 | 04019-03 | Nut, Serrated Flange 5/16-18 | ||
| 78 | 04001-11 | Bolt, Hex Head 5/16-18 x 1-1/2” |

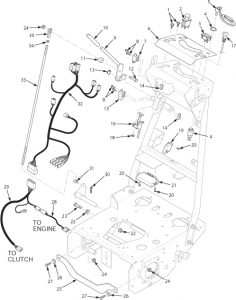

Electrical System And Upper Brake Assembly Manual Start
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 04010-01 | Screw, Phillips #10-32 x 1/2” | ||
| 2 | 483162 | Switch, PTO | ||
| 3 | 483537 | Hour Meter | ||
| 4 | 48609 | Key Switch | ||
| 5 | 462069 | Key Fob w/Keys | ||
| 483609 | Hooded Key | |||
| 6 | 483608 | Decal, Control Panel | ||
| 7 | 483606 | Switch, N/C - Speed Control | ||
| 8 | 04010-12 | Screw, Hex Head #10-32 x 3/4” | ||
| 9 | 462115 | Lever, Brake | ||
| 10 | 48342 | Grip, Brake | ||
| 11 | 43286 | Spacer | ||
| 12 | 04001-45 | Bolt, Hex Head 3/8-16 x 2” | ||
| 13 | 04050-01 | Retaining Ring | ||
| 14 | 422373 | Plate, Threaded | ||
| 15 | 481545 | Switch, Interlock - Brake | ||
| 16 | 483610 | Throttle Control | ||
| 17 | 483552 | Choke Control | ||
| 18 | 04019-01 | Nut, Serrated Flange #10-32 | ||
| 19 | 483714 | Voltage Regulator | ||
| 20 | 04001-11 | Screw, Self Tapping | ||
| 21 | 483720 | Module, Senso Grip | ||
| 22 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 23 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2” | ||
| 24 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 25 | 424604 | Stiffener, SWZV | ||
| 26 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 27 | 04001-32 | Bolt, Hex Head 3/8-16 x 1-1/4” | ||
| 28 | 481717 | Engine Adapter Harness, Kawasaki | ||
| 29 | 483604 | Wire Harness, Engine Deck Manual Start | ||
| 30 | 04062-01 | Hair Pin Cotter, .094 x 1.62” | ||
| 31 | 43032 | Swivel Joint | ||
| 32 | 483602 | Wire Harness, Handle Bar Manual Start | ||
| 33 | 44168 | Rod, Brake Lever | ||
| 34 | 04020-25 | Nut, 3/8-24 UNF Jam | ||
| 35 | 483339 | Rod End, 3/8-24 RH |

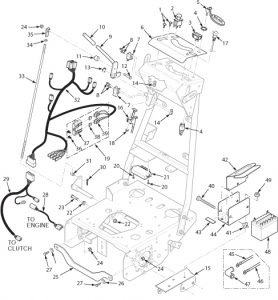

Electrical System And Upper Brake Assembly Electric Start
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 04010-01 | Screw, Phillips #10-32 x 1/2” | ||
| 2 | 483162 | Switch, PTO | ||
| 3 | 483537 | Hour Meter | ||
| 4 | 48798 | Key Switch | ||
| 5 | 462069 | Key Fob w/Keys | ||
| 483609 | Hooded Key | |||
| 6 | 483608 | Decal, Control Panel | ||
| 7 | 481545 | Switch, Interlock | ||
| 8 | 04010-12 | Screw, Hex Head #10-32 x 3/4” | ||
| 9 | 462115 | Lever, Brake | ||
| 10 | 48342 | Grip, Brake | ||
| 11 | 43286 | Spacer | ||
| 12 | 04001-45 | Bolt, Hex Head 3/8-16 x 2” | ||
| 13 | 04050-01 | Retaining Ring | ||
| 14 | 422373 | Plate, Threaded | ||
| 15 | 451961 | Battery Support Weldment | ||
| 16 | 483610 | Throttle Control | ||
| 17 | 483552 | Choke Control | ||
| 18 | 04019-01 | Nut, Serrated Flange #10-32 | ||
| 19 | 483629 | Fuse Holder Assembly | ||
| 20 | 04001-11 | Screw, Self Tapping | ||
| 21 | 483720 | Module, Magura Senso Grip | ||
| 22 | 04019-04 | Nut, Serrated Flange 3/8-16 | ||
| 23 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2’ | ||
| 24 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 25 | 424604 | Stiffener, SWZV | ||
| 26 | 04043-04 | Flatwasher, 3/8-.391 x .938 x .105 HD | ||
| 27 | 04001-32 | Bolt, Hex Head 3/8-16 x 1-1/4’ | ||
| 28 | 483718 | Engine Adapter Harness, KAE | ||
| 29 | 483605 | Wire Harness, Engine Deck Electric Start | ||
| 30 | 04062-01 | Hair Pin Cotter, .094 x 1.62” | ||
| 31 | 43032 | Swivel Joint | ||
| 32 | 483603 | Wire Harness, Handle Bar Electric Start | ||
| 33 | 44168 | Rod, Brake Lever | ||
| 34 | 04020-25 | Nut, 3/8-24 UNF Jam | ||
| 35 | 483339 | Rod End, 3/8-24 RH | ||
| 36 | 482588 | Clip, Wire | ||
| 37 | 483571 | Cover, Sealed Double | ||
| 38 | 48298 | Fuse, 20 Amp | ||
| 39 | 483629 | Fuse Holder | ||
| 40 | 04003-01 | Bolt, Carriage 1/4-20 x 6” | ||
| 41 | 04229-01 | Wing Nut, 1/4-20 Plastic | ||
| 42 | 42392 | Battery Box Cover | ||
| 48099 | Pad | |||
| 43 | 48661 | Pad, Rubber | ||
| 44 | 423308 | Battery Box | ||
| 45 | 48029-12 | Cable, Battery - Red | ||
| 46 | 48029-15 | Cable, Battery - Black | ||
| 47 | 48126 | Rubber Boot | ||
| 48 | 483665 | Battery (not available through Scag) | ||
| 49 | 04019-03 | Nut, Serrated Flange 5/16-18 |

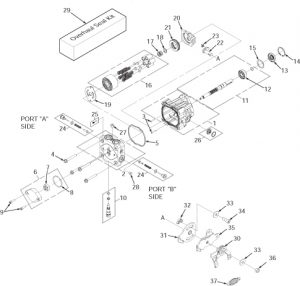

Hydraulic Pump Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | HG 70516 | Housing Kit | ||
| 2 | HG 70573 | End Cap Kit | ||
| 3 | HG 50641 | Straight Headless Pin | ||
| 4 | HG 50969 | Hex Flange Bolt, M8-1.25 x 60mm | ||
| 5 | HG 51232 | Housing O-Ring | ||
| 6 | HG 2513027 | Charge Pump Kit | ||
| 7 | HG 50273 | Gerotor Assembly | ||
| 8 | HG 9004101-1340 | O-Ring | ||
| 9 | HG 50095 | Socket Head Screw, M6 x 1.0-20mm | ||
| 10 | HG 2513030 | Bypass Valve Kit | ||
| 11 | HG 70521 | Pumpshaft Kit | ||
| 12 | HG 50315 | Ball Bearing, 17 x 40 x 12 | ||
| 13 | HG 51161 | Lip Seal | ||
| 14 | HG 50329 | Retaining Ring | ||
| 15 | HG 50951 | Spacer | ||
| 16 | HG 70331 | Cylinder Block Kit | ||
| 17 | HG 2003014 | Block Spring | ||
| 18 | HG 2003017 | Block Thrust Washer | ||
| 19 | HG 51444 | Valve Plate | ||
| 20 | HG 2003087 | Swash Plate | ||
| 21 | HG 50551 | Ball Thrust Bearing | ||
| 22 | HG 2003005 | Trunnion Arm | ||
| 23 | HG 2000015 | Slot Guide | ||
| 24 | HG 2510062 | Check Valve Kit (.024” Orfice) port “A” on Left Hand Pump, port “B” on Right Hand Pump | ||
| 25 | HG 70403 | Charge Relief Kit | ||
| 26 | HG 2513043 | Trunnion Seal with Retainer | ||
| 27 | HG 9005110-4400 | Straight Thread Plug | ||
| 28 | HG 50408 | Straight Headless Pin | ||
| 29 | HG 70525 | Overhaul Seal Kit | ||
| 30 | HG52413 | Assembly, RTN | ||
| 31 | HG51391 | Arm, Return | ||
| 32 | HG51561 | Spacer | ||
| 33 | HG44130 | Washer | ||
| 34 | HG51400 | Screw, 5/16-24 x 3/4” Patch | ||
| 35 | HG51394 | Control Arm | ||
| 36 | HG52506 | Nut, Center Lock 5/16-24 UNF | ||
| 37 | HG52401 | Spring, Extension |
Replacement Decals And Information Plates
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 483402 | Decal, Warning - Belt Cover | ||
| 2 | 483405 | Decal, Warning | ||
| 3 | 483404 | Decal, Sulky Attach | ||
| 4 | 483059 | Decal, 36A | ||
| 483199 | Decal, 48V | |||
| 483200 | Decal, 52V | |||
| 5 | 483407 | Decal, Spinning Blades | ||
| 6 | 48404 | Decal, Metalcraft - Made in USA | ||
| 7 | 483639 | Decal, Height-of-Cut | ||
| 8 | 483406 | Decal, Warning - Knives | ||
| 9 | 481971 | Decal, Heavy Duty Commercial | ||
| 10 | 483608 | Decal, Instrument Panel | ||
| 11 | 483711 | Decal, Module Connection | ||
| 12 | 483044 | Decal, Patents | ||
| 13 | 483661 | Decal, Pro-V Belt Cover |
