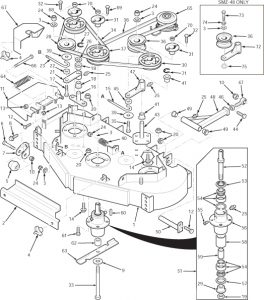

48″ Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461133 | Cutter Deck (Includes decals) | ||
| 2 | 421058 | Belt Cover, Front | ||
| 3 | 04041-07 | Flatwasher, 3/8" Spcl. (.391 x .938 x .105) | ||
| 4 | 04029-03 | Wing Nut, 3/8-16 | ||
| 5 | 481689 | Anti-Scalp Wheel | ||
| 6 | 04003-26 | Bolt, carriage 3/8-16 x 4" | ||
| 7 | 422525 | Anti-Scalp Wheel Bracket | ||
| 8 | 04017-27 | Bolt, Hex Serrated Flange 3/8-16 x 1" | ||
| 9 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | ||
| 10 | 04021-05 | Nut, Lock 3/8-16 Center Lock | ||
| 11 | 461056 | Discharge Chute | ||
| 12 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 13 | 04021-10 | Nut, Hex Elastic Stop 5/16-18 | ||
| 14 | 04017-16 | Bolt, Hex Serrated Flange 5/16-18 x 3/4" | ||
| 15 | 44078 | "J” Rod | ||
| 16 | 45037 | Idler Pivot Base | ||
| 17 | 04001-46 | Bolt, Hex Head 3/8-16 x 2-1/4" | ||
| 18 | 48100-05 | Bushing | ||
| 19 | 481035 | Nut, Special 1-1/16-18 | ||
| 20 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 21 | 46081 | Idler Arm (Includes bushings & grease fittings) | ||
| 22 | 43077 | Spacer | ||
| 23 | 43028 | “J” Rod | ||
| 24 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 25 | 48114-04 | Grease Fitting | ||
| 26 | 04041-08 | Flatwasher, 3/4" | ||
| 4041-08S | Flatwasher, 3/4" Special | |||
| 27 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 28 | 48181 | Pulley, Idler | ||
| 29 | 43297 | Spindle Bushing, Bottom | ||
| 30 | 48924 | Pulley, LH Spindle | ||
| 31 | 48926 | Tapered Hub, 1-1/8 Bore | ||
| 32 | 04001-01 | Bolt, Hex Head 1/4-20 x 3/4" | ||
| 33 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2" | ||
| 34 | 48087 | Belt, RH Blade Drive | ||
| 35 | 04001-23 | Bolt, Hex Head 3/8-16 x 4-1/2" | ||
| 36 | 48550 | Pulley, Idler Cutter Engagement | ||
| 37 | 48923 | Pulley, Double Groove | ||
| 38 | 48799 | Belt, Blade Drive | ||
| 39 | 04041-12 | Flatwasher, 3/8" (.375 x 1.5 x .06) | ||
| 40 | 48807 | Spring, Idler Tension | ||
| 41 | 48100-02 | Bushing | ||
| 43 | 45329 | Idler Pivot Base | ||
| 44 | 04001-97 | Bolt, Hex Head 5/8-11 x 3" | ||
| 46 | 04020-16 | Nut, Hex 5/8-18 UNF | ||
| 47 | 48763 | Rod End | ||
| 48 | 461036 | Push Arm (Includes 25, 46, 47, and 49) | ||
| 49 | 48100-06 | Bushing | ||
| 50 | 45332 | Push Arm Shaft | ||
| 51 | 46631 | Spindle Assembly | ||
| 52 | 43298 | Spindle Shaft | ||
| 53 | 481024 | Seal, Top | ||
| 54 | 481022 | Bearing Assembly (1 required per spindle) | ||
| 55 | 48667 | Relief Fitting, Tapered Spindle | ||
| 56 | 43294 | Spindle Housing | ||
| 57 | 481025 | Seal, Bottom | ||
| 58 | 43312 | Spacer, Outside | ||
| 59 | 43296 | Spacer, Inside | ||
| 60 | 04063-08 | Key, 1/4 x 1/4 x 2" | ||
| 61 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4" | ||
| 62 | 43279 | Spacer, Tapered Spindle | ||
| 63 | 48110 | Cutter Blade, 16-1/2" Standard | ||
| 48184 | Cutter Blade, 16-1/2" High Lift | |||
| 64 | 481050 | Spring, Discharge Chute | ||
| 65 | 48786 | Electric Clutch | ||
| 66 | 04001-108 | Bolt, Hex Head 5/16-18 x 4.25" | ||
| 67 | 421616 | Belt Cover, LH | ||
| 421615 | Belt Cover, RH | |||
| 68 | 48924 | Pulley, RH Spindle | ||
| 69 | 04001-109 | Bolt, Hex Head 1/4-20 x 1.375 Full Thread | ||
| 70 | Nut, Hex 5/8-11 UNC | |||
| 71 | 04050-05 | Ring, Retaining 1-1/8" External “E” | ||
| 72 | 46963 | Idler Arm (Includes bushings & grease fittings) | ||
| 73 | 04001-51 | Bolt, Hex Head 3/8-16 X 3 3/4" | ||
| 74 | 04030-04 | Lockwasher 3/8 | ||
| 75 | 43369 | Nut, 3/8-16 Special W/Washer |
52″ Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461136 | Cutter Deck (Includes decals) | ||
| 2 | 421451 | Belt Cover, Front | ||
| 3 | 04041-07 | Flatwasher, 3/8" Spcl. (.391 x .938 x .105) | ||
| 4 | 04029-03 | Wing Nut, 3/8-16 | ||
| 5 | 481632 | Anti-Scalp Wheel | ||
| 6 | 04003-26 | Bolt, carriage 3/8-16 x 4" | ||
| 8 | 04017-27 | Bolt, Hex Serrated Flange 3/8-16 x 1" | ||
| 9 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | ||
| 10 | 04021-05 | Nut, Lock 3/8-16 Center Lock | ||
| 11 | 461056 | Discharge Chute | ||
| 12 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 13 | 04021-10 | Nut, Hex Elastic Stop 5/16-18 | ||
| 14 | 04017-16 | Bolt, Hex Serrated Flange 5/16-18 x 3/4" | ||
| 15 | 44101 | "J” Rod | ||
| 16 | 45037 | Idler Pivot Base | ||
| 17 | 04001-46 | Bolt, Hex Head 3/8-16 x 2-1/4" | ||
| 18 | 48100-05 | Bushing | ||
| 19 | 481035 | Nut, Special 1-1/16-18 | ||
| 20 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 21 | 46081 | Idler Arm (Includes bushings & grease fittings) | ||
| 22 | 43077 | Spacer | ||
| 23 | 43028 | “J” Rod | ||
| 24 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 25 | 48114-04 | Grease Fitting | ||
| 26 | 04041-08 | Flatwasher, 3/4" | ||
| 4041-08S | Flatwasher, 3/4" Special | |||
| 27 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 28 | 48181 | Pulley, Idler | ||
| 29 | 43297 | Spindle Bushing, Bottom | ||
| 30 | 48924 | Pulley, LH Spindle | ||
| 31 | 48926 | Tapered Hub, 1-1/8 Bore | ||
| 32 | 04001-01 | Bolt, Hex Head 1/4-20 x 3/4" | ||
| 33 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2" | ||
| 34 | 48285 | Belt, RH Blade Drive | ||
| 35 | 04001-23 | Bolt, Hex Head 3/8-16 x 4-1/2" | ||
| 36 | 48550 | Pulley, Idler Cutter Engagement | ||
| 37 | 48923 | Pulley, Double Groove | ||
| 38 | 481001 | Belt, Blade Drive | ||
| 39 | 04041-12 | Flatwasher, 3/8" (.375 x 1.5 x .06) | ||
| 40 | 48807 | Spring, Idler Tension | ||
| 41 | 48100-02 | Bushing | ||
| 42 | 46750 | Idler Arm (Includes bushings & grease fittings) | ||
| 43 | 45329 | Idler Pivot Base | ||
| 44 | 04001-97 | Bolt, Hex Head 5/8-11 x 3" | ||
| 45 | 43282 | Spacer | ||
| 46 | 04020-16 | Nut, Hex 5/8-18 UNF | ||
| 47 | 48763 | Rod End | ||
| 48 | 461036 | Push Arm (Includes 25, 46, 47, and 49) | ||
| 49 | 48100-06 | Bushing | ||
| 50 | 45332 | Push Arm Shaft | ||
| 51 | 46631 | Spindle Assembly | ||
| 52 | 43298 | Spindle Shaft | ||
| 53 | 481024 | Seal, Top | ||
| 54 | 481022 | Bearing Assembly (1 required per spindle) | ||
| 55 | 48667 | Relief Fitting, Tapered Spindle | ||
| 56 | 43294 | Spindle Housing | ||
| 57 | 481025 | Seal, Bottom | ||
| 58 | 43312 | Spacer, Outside | ||
| 59 | 43296 | Spacer, Inside | ||
| 60 | 04063-08 | Key, 1/4 x 1/4 x 2" | ||
| 61 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4" | ||
| 62 | 43279 | Spacer, Tapered Spindle | ||
| 63 | 48108 | Cutter Blade, 18" Standard | ||
| 48185 | Cutter Blade, 18" High Lift | |||
| 64 | 481050 | Spring, Discharge Chute | ||
| 65 | 48786 | Electric Clutch | ||
| 66 | 04001-108 | Bolt, Hex Head 5/16-18 x 4.25" | ||
| 67 | 42889 | Belt Cover, LH | ||
| 42890 | Belt Cover, RH | |||
| 68 | 48924 | Pulley, RH Spindle | ||
| 69 | 04001-109 | Bolt, Hex Head 1/4-20 x 1.375 Full Thread | ||
| 70 | Nut, Hex 5/8-11 UNC | |||
| 71 | 04050-05 | Ring, Retaining 1-1/8" External “E” | ||
| 72 | 46963 | Idler Arm (Includes bushings & grease fittings) |
61″ Cutter Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 461140 | Cutter Deck (Includes decals) | ||
| 2 | 421299 | Belt Cover, Front | ||
| 3 | 04041-07 | Flatwasher, 3/8" Spcl. (.391 x .938 x .105) | ||
| 4 | 04029-03 | Wing Nut, 3/8-16 | ||
| 5 | 481632 | Anti-Scalp Wheel | ||
| 6 | 04003-26 | Bolt, carriage 3/8-16 x 4" | ||
| 8 | 04017-27 | Bolt, Hex Serrated Flange 3/8-16 x 1" | ||
| 9 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | ||
| 10 | 04021-05 | Nut, Lock 3/8-16 Center Lock | ||
| 11 | 461057 | Discharge Chute | ||
| 12 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 13 | 04021-10 | Nut, Hex Elastic Stop 5/16-18 | ||
| 14 | 04017-16 | Bolt, Hex Serrated Flange 5/16-18 x 3/4" | ||
| 15 | 44101 | "J” Rod | ||
| 16 | 45037 | Idler Pivot Base | ||
| 17 | 04001-46 | Bolt, Hex Head 3/8-16 x 2-1/4" | ||
| 18 | 48100-05 | Bushing | ||
| 19 | 481035 | Nut, Special 1-1/16-18 | ||
| 20 | 04019-03 | Nut, Hex Serrated Flange 5/16-18 | ||
| 21 | 46081 | Idler Arm (Includes bushings & grease fittings) | ||
| 22 | 43077 | Spacer | ||
| 23 | 44078 | “J” Rod | ||
| 24 | 04021-09 | Nut, Hex Elastic Stop 3/8-16 | ||
| 25 | 48114-04 | Grease Fitting | ||
| 26 | 04041-08 | Flatwasher, 3/4" | ||
| 4041-08S | Flatwasher, 3/4" Special | |||
| 27 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 28 | 48181 | Pulley, Idler | ||
| 29 | 43297 | Spindle Bushing, Bottom | ||
| 30 | 48753 | Pulley, LH Spindle | ||
| 31 | 48926 | Tapered Hub, 1-1/8 Bore | ||
| 32 | 04001-01 | Bolt, Hex Head 1/4-20 x 3/4" | ||
| 33 | 04001-41 | Bolt, Hex Head 5/8-11 x 9-1/2" | ||
| 34 | 48265 | Belt, RH Blade Drive | ||
| 35 | 04001-23 | Bolt, Hex Head 3/8-16 x 4-1/2" | ||
| 36 | 48550 | Pulley, Idler Cutter Engagement | ||
| 37 | 48940 | Pulley, Double Groove | ||
| 38 | 48996 | Belt, Blade Drive | ||
| 39 | 04041-12 | Flatwasher, 3/8" (.375 x 1.5 x .06) | ||
| 40 | 48807 | Spring, Idler Tension | ||
| 41 | 48100-02 | Bushing | ||
| 42 | 46750 | Idler Arm (Includes bushings & grease fittings) | ||
| 43 | 45329 | Idler Pivot Base | ||
| 44 | 04001-97 | Bolt, Hex Head 5/8-11 x 3" | ||
| 45 | 43282 | Spacer | ||
| 46 | 04020-16 | Nut, Hex 5/8-18 UNF | ||
| 47 | 48763 | Rod End | ||
| 48 | 461036 | Push Arm (Includes 25, 46, 47, and 49) | ||
| 49 | 48100-06 | Bushing | ||
| 50 | 45332 | Push Arm Shaft | ||
| 51 | 46631 | Spindle Assembly | ||
| 52 | 43298 | Spindle Shaft | ||
| 53 | 481024 | Seal, Top | ||
| 54 | 481022 | Bearing Assembly (1 required per spindle) | ||
| 55 | 48667 | Relief Fitting, Tapered Spindle | ||
| 56 | 43294 | Spindle Housing | ||
| 57 | 481025 | Seal, Bottom | ||
| 58 | 43312 | Spacer, Outside | ||
| 59 | 43296 | Spacer, Inside | ||
| 60 | 04063-08 | Key, 1/4 x 1/4 x 2" | ||
| 61 | 04001-10 | Bolt, Hex Head 5/16-18 x 1-1/4" | ||
| 62 | 43279 | Spacer, Tapered Spindle | ||
| 63 | 48111 | Cutter Blade, 18" Standard | ||
| 48304 | Cutter Blade, 18" High Lift | |||
| 64 | 481050 | Spring, Discharge Chute | ||
| 65 | 48786 | Electric Clutch | ||
| 66 | 04001-108 | Bolt, Hex Head 5/16-18 x 4.25" | ||
| 67 | 421292 | Belt Cover, LH | ||
| 421293 | Belt Cover, RH | |||
| 68 | 48924 | Pulley, RH Spindle | ||
| 69 | 04001-109 | Bolt, Hex Head 1/4-20 x 1.375 Full Thread | ||
| 70 | Nut, Hex 5/8-11 UNC | |||
| 71 | 04050-05 | Ring, Retaining 1-1/8" External “E” | ||
| 72 | 46963 | Idler Arm (Includes bushings & grease fittings) |

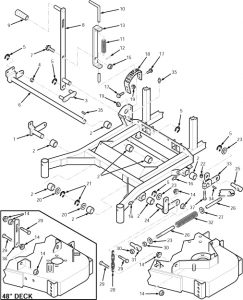

48″ Cutter Deck Controls
| S.No | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 45524 | Bellcrank, Lift - Right Front | ||
| 2 | 48100-05 | Bushing | ||
| 3 | 45527 | Lift Link | ||
| 6 | 45610 | Lift Arm Weldment | ||
| 7 | 04017-17 | Bolt, Serrated Flange Hex Head 5/16-18 x 1" | ||
| 8 | 46384 | Height Adjustment Lever (Includes grip) | ||
| 9 | 48093 | Grip, Lever Lift | ||
| 10 | 44065 | Rod, Cutter Deck Lock | ||
| 11 | 48053 | Spring, Deck Lift Index | ||
| 13 | 42887 | Lock, Rod Guide | ||
| 14 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 X | ||
| 16 | 48114-04 | Grease Fitting | ||
| 18 | 42828 | Strip, Height Adjustment | ||
| 22 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 23 | 04040-09 | Flatwasher, 5/8" (.656 x 1.312 x .075) | ||
| 24 | 45313 | Bellcrank, Lift - Left Front | ||
| 25 | 43271 | Swivel Joint - LH THD | ||
| 26 | 04004-18 | Adjustment Stud | ||
| 27 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | ||
| 29 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2" | ||
| 30 | 04020-09 | Nut, Hex 5/8-11 | ||
| 31 | 43270 | Swivel Joint - RH | ||
| 32 | 481045 | Spring, Deck Lift | ||
| 33 | 45427 | Bellcrank | ||
| 34 | 04063-15 | Key, 3/16 x 3/16 x .75" | ||
| 36 | 421585 | Link, Deck Support | ||
| 37 | 04001-45 | Bolt, Hex Head 3/8-16 x 2" |
52″ Cutter Deck Controls
| S.No | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 45524 | Bellcrank, Lift - Right Front | ||
| 2 | 48100-05 | Bushing | ||
| 3 | 45527 | Lift Link | ||
| 4 | 43180 | Bushing | ||
| 5 | 04050-01 | Retaining Ring, 5/8" External “E” | ||
| 6 | 45523 | Lift Arm Weldment | ||
| 7 | 04017-17 | Bolt, Serrated Flange Hex Head 5/16-18 x 1" | ||
| 8 | 46384 | Height Adjustment Lever (Includes grip) | ||
| 9 | 48093 | Grip, Lever Lift | ||
| 10 | 44065 | Rod, Cutter Deck Lock | ||
| 11 | 48053 | Spring, Deck Lift Index | ||
| 12 | 04060-01 | Roll Pin, 5/32 x 3/4" | ||
| 13 | 42887 | Lock, Rod Guide | ||
| 14 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 X | ||
| 15 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 16 | 48114-04 | Grease Fitting | ||
| 17 | 04017-05 | Bolt, Serrated Flange Hex Head 1/4-20 x 3/4" | ||
| 18 | 42828 | Strip, Height Adjustment | ||
| 19 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 20 | 04041-08S | Flatwasher, 3/4" (.766 x 1.250 x.075) | ||
| 21 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 22 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 23 | 04040-09 | Flatwasher, 5/8" (.656 x 1.312 x .075) | ||
| 24 | 45313 | Bellcrank, Lift - Left Front | ||
| 25 | 43271 | Swivel Joint - LH THD | ||
| 26 | 04004-15 | Adjustment Stud | ||
| 27 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | ||
| 28 | 48540 | Chain | ||
| 29 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2" | ||
| 30 | 04020-09 | Nut, Hex 5/8-11 | ||
| 31 | 43270 | Swivel Joint - RH | ||
| 32 | 48953 | Spring, Deck Lift | ||
| 33 | 45427 | Bellcrank | ||
| 34 | 04063-15 | Key, 3/16 x 3/16 x .75" | ||
| 35 | 48114-05 | Grease Fitting | ||
| 37 | 04001-45 | Bolt, Hex Head 3/8-16 x 2" |
61″ Cutter Deck Controls
| S.No | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 45524 | Bellcrank, Lift - Right Front | ||
| 2 | 48100-05 | Bushing | ||
| 3 | 45527 | Lift Link | ||
| 4 | 43180 | Bushing | ||
| 5 | 04050-01 | Retaining Ring, 5/8" External “E” | ||
| 6 | 45523 | Lift Arm Weldment | ||
| 7 | 04017-17 | Bolt, Serrated Flange Hex Head 5/16-18 x 1" | ||
| 8 | 46384 | Height Adjustment Lever (Includes grip) | ||
| 9 | 48093 | Grip, Lever Lift | ||
| 10 | 44065 | Rod, Cutter Deck Lock | ||
| 11 | 48053 | Spring, Deck Lift Index | ||
| 12 | 04060-01 | Roll Pin, 5/32 x 3/4" | ||
| 13 | 42887 | Lock, Rod Guide | ||
| 14 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 X | ||
| 15 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 16 | 48114-04 | Grease Fitting | ||
| 17 | 04017-05 | Bolt, Serrated Flange Hex Head 1/4-20 x 3/4" | ||
| 18 | 42828 | Strip, Height Adjustment | ||
| 19 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 20 | 04041-08S | Flatwasher, 3/4" (.766 x 1.250 x.075) | ||
| 21 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 22 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 23 | 04040-09 | Flatwasher, 5/8" (.656 x 1.312 x .075) | ||
| 24 | 45313 | Bellcrank, Lift - Left Front | ||
| 25 | 43271 | Swivel Joint - LH THD | ||
| 26 | 04004-15 | Adjustment Stud | ||
| 27 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | ||
| 28 | 48540 | Chain | ||
| 29 | 04001-20 | Bolt, Hex Head 3/8-16 x 1-1/2" | ||
| 30 | 04020-09 | Nut, Hex 5/8-11 | ||
| 31 | 43270 | Swivel Joint - RH | ||
| 32 | 48953 | Spring, Deck Lift | ||
| 33 | 45427 | Bellcrank | ||
| 34 | 04063-15 | Key, 3/16 x 3/16 x .75" | ||
| 35 | 48114-05 | Grease Fitting | ||
| 37 | 04001-45 | Bolt, Hex Head 3/8-16 x 2" |

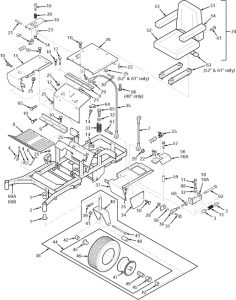

48″ Sheet Metal Components
| S.No | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 48100-08 | Bushing | ||
| 2 | 48114-04 | Grease Fitting | ||
| 3 | 43257 | Bushing, Spring Keeper | ||
| 4 | 04062-02 | Hair Pin, .08 Diameter x 1-3/16" | ||
| 5 | 04041-07 | Flatwasher, 3/8" (.391 x .738 x .105) | ||
| 6 | 44062 | Rod, Foot Plate Latch | ||
| 7 | 481086 | Cable, Seat Stop | ||
| 8 | 421589 | Foot Plate | ||
| 9 | 481049 | Hinge | ||
| 10 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 11 | 04001-08 | Bolt, Serrated Flange Hex Head 5/16-18 x 3/4" | ||
| 12 | 421251 | Kick Plate | ||
| 13 | 48746 | Neutral Return Spring | ||
| 14 | 04021-10 | Fender Assembly, RH (with decal) | ||
| 15 | 461085 | Bolt, Hex Head 5/16-18 x 3-3/4" | ||
| 16 | 04001-73 | Bolt, Carriage 5/16-18 x 1" | ||
| 17 | 04003-04 | Retainer, Neutral Spring, LH | ||
| 18 | 421411 | Retainer, Neutral Spring, RH | ||
| 18A | 421412 | Retainer, Neutral Spring, RH | ||
| 19 | 45405 | Seat Switch Bracket | ||
| 20 | 48463 | Spring | ||
| 21 | 04064-04 | Clevis Pin | ||
| 22 | 04017-15 | Bolt, Serrated Flange Hex Head 5/16-18 x 3/4" | ||
| 23 | 04062-02 | Hair Pin, Cotter | ||
| 24 | 481532 | Seat Assembly | ||
| 25 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 26 | 46754 | Seat Base | ||
| 27 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 28 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 29 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 30 | 04017-06 | Bolt, Serrated Flange Hex Head 1/4-20 x 1" | ||
| 31 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2" | ||
| 32 | 04001-15 | Flatwasher, 5/16" (.313 x .875 x .083) | ||
| 33 | 481704 | Seat Spring | ||
| 34 | 421198 | Fender Panel, LH | ||
| 35 | 48566 | Cable, Seat Stop | ||
| 36 | 48464 | Ball Joint, Neutral | ||
| 37 | 45971 | Fender , LH | ||
| 38 | 46392 | Caster Wheel Yoke Assembly | ||
| 39 | 04066-01 | Quick Pin | ||
| 40 | 45325 | Caster Wheel Yoke | ||
| 41 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 42 | 43041 | Spacer | ||
| 43 | 04001-80 | Bolt, Hex Head 1/2-13 x 6-1/2" | ||
| 44 | 48537 | Wheel Assembly, Complete | ||
| 45 | 48006-07 | Retainer | ||
| 46 | 48537-02 | Tire Only | ||
| 47 | 48537-03 | Rim Only | ||
| 48 | 43022 | Sleeve | ||
| 49 | 48006-06 | Roller Bearing | ||
| 50 | 48717 | Seat Switch | ||
| 51 | 481532-01 | Seat, Back Cushion | ||
| 52 | 481532-02 | Seat, Bottom Cushion | ||
| 53 | 481532-03 | Arm Pad, RH | ||
| 54 | 481532-04 | Arm Pad, LH | ||
| 55 | 481474 | Neutral Interlock Switch | ||
| 56 | 422535 | Neutral Lock Bracket, RH | ||
| 56A | 422536 | Neutral Lock Bracket, LH | ||
| 57 | 04017-24 | Bolt, Serrated Flange Hex Head 5/16-18 x 2-3/4" | ||
| 58 | 43240 | Spacer, Neutral Spring | ||
| 59 | 43258 | Spacer, Neutral Lock Bracket | ||
| 60 | 04020-14 | Nut, Hex 3/8-24 UNF | ||
| 61 | 48704-06 | Bolt, Hex Head w/Washer, 1/4-20 x 3/4" | ||
| 62 | 04001-99 | Bolt, Hex Head 3/8-24 x 6-1/2", UNF | ||
| 63 | 46570 | Seat Adjustment, Track Set | ||
| 64 | 48030-09 | Cable Clamp, .50 ID | ||
| 65 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 67 | Bolt, Hex Head 1/4-20 x 1.25" | Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. | ||
| 68 | Lockwasher, 5/16" | Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. | ||
| 69A | 461083 | Main Frame Assy |
52″ Sheet Metal Components
| S.No | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 48100-08 | Bushing | ||
| 2 | 48114-04 | Grease Fitting | ||
| 3 | 43257 | Bushing, Spring Keeper | ||
| 4 | 04062-02 | Hair Pin, .08 Diameter x 1-3/16" | ||
| 5 | 04041-07 | Flatwasher, 3/8" (.391 x .738 x .105) | ||
| 6 | 44062 | Rod, Foot Plate Latch | ||
| 7 | 481086 | Cable, Seat Stop | ||
| 8 | 42764 | Foot Plate | ||
| 9 | 481049 | Hinge | ||
| 10 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 11 | 04001-08 | Bolt, Serrated Flange Hex Head 5/16-18 x 3/4" | ||
| 12 | 421251 | Kick Plate | ||
| 13 | 48746 | Neutral Return Spring | ||
| 14 | 04021-10 | Fender Assembly, RH (with decal) | ||
| 15 | 461085 | Bolt, Hex Head 5/16-18 x 3-3/4" | ||
| 16 | 04001-73 | Bolt, Carriage 5/16-18 x 1" | ||
| 17 | 04003-04 | Retainer, Neutral Spring, LH | ||
| 18 | 421411 | Retainer, Neutral Spring, RH | ||
| 18A | 421412 | Retainer, Neutral Spring, RH | ||
| 19 | 45405 | Seat Switch Bracket | ||
| 20 | 48463 | Spring | ||
| 21 | 04064-04 | Clevis Pin | ||
| 22 | 04017-15 | Bolt, Serrated Flange Hex Head 5/16-18 x 3/4" | ||
| 23 | 04062-02 | Hair Pin, Cotter | ||
| 24 | 481606 | Seat Assembly w/Adjuster Rails | ||
| 25 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 26 | 46754 | Seat Base | ||
| 27 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 28 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 29 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 30 | 04017-06 | Bolt, Serrated Flange Hex Head 1/4-20 x 1" | ||
| 31 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2" | ||
| 32 | 04001-15 | Flatwasher, 5/16" (.313 x .875 x .083) | ||
| 33 | 481704 | Seat Spring | ||
| 34 | 421198 | Fender Panel, LH | ||
| 35 | 48566 | Cable, Seat Stop | ||
| 36 | 48464 | Ball Joint, Neutral | ||
| 37 | 45971 | Fender , LH | ||
| 38 | 46392 | Caster Wheel Yoke Assembly | ||
| 39 | 04066-01 | Quick Pin | ||
| 40 | 45325 | Caster Wheel Yoke | ||
| 41 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 42 | 43041 | Spacer | ||
| 43 | 04001-80 | Bolt, Hex Head 1/2-13 x 6-1/2" | ||
| 44 | 48537 | Wheel Assembly, Complete | ||
| 45 | 48006-07 | Retainer | ||
| 46 | 48537-02 | Tire Only | ||
| 47 | 48537-03 | Rim Only | ||
| 48 | 43022 | Sleeve | ||
| 49 | 48006-06 | Roller Bearing | ||
| 50 | 48717 | Seat Switch | ||
| 51 | 481532-01 | Seat, Back Cushion | ||
| 52 | 481532-02 | Seat, Bottom Cushion | ||
| 53 | 481532-03 | Arm Pad, RH | ||
| 54 | 481532-04 | Arm Pad, LH | ||
| 55 | 481474 | Neutral Interlock Switch | ||
| 56 | 422535 | Neutral Lock Bracket, RH | ||
| 56A | 422536 | Neutral Lock Bracket, LH | ||
| 57 | 04017-24 | Bolt, Serrated Flange Hex Head 5/16-18 x 2-3/4" | ||
| 58 | 43240 | Spacer, Neutral Spring | ||
| 59 | 43258 | Spacer, Neutral Lock Bracket | ||
| 60 | 04020-14 | Nut, Hex 3/8-24 UNF | ||
| 61 | 48704-06 | Bolt, Hex Head w/Washer, 1/4-20 x 3/4" | ||
| 62 | 04001-99 | Bolt, Hex Head 3/8-24 x 6-1/2", UNF | ||
| 63 | 46570 | Seat Adjustment, Track Set | ||
| 64 | 48030-09 | Cable Clamp, .50 ID | ||
| 65 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 66 | 04017-16 | Bolt, Serrated Flange Hex Head 5/16-18 x 1" | ||
| 67 | Bolt, Hex Head 1/4-20 x 1.25" | Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. | ||
| 68 | Lockwasher, 5/16" | Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. | ||
| 69B | 461084 | Main Frame Assy |
61″ Sheet Metal Components
| S.No | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 48100-08 | Bushing | ||
| 2 | 48114-04 | Grease Fitting | ||
| 3 | 43257 | Bushing, Spring Keeper | ||
| 4 | 04062-02 | Hair Pin, .08 Diameter x 1-3/16" | ||
| 5 | 04041-07 | Flatwasher, 3/8" (.391 x .738 x .105) | ||
| 6 | 44062 | Rod, Foot Plate Latch | ||
| 7 | 481086 | Cable, Seat Stop | ||
| 8 | 42764 | Foot Plate | ||
| 9 | 481049 | Hinge | ||
| 10 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 11 | 04001-08 | Bolt, Serrated Flange Hex Head 5/16-18 x 3/4" | ||
| 12 | 421251 | Kick Plate | ||
| 13 | 48746 | Neutral Return Spring | ||
| 14 | 04021-10 | Fender Assembly, RH (with decal) | ||
| 15 | 461085 | Bolt, Hex Head 5/16-18 x 3-3/4" | ||
| 16 | 04001-73 | Bolt, Carriage 5/16-18 x 1" | ||
| 17 | 04003-04 | Retainer, Neutral Spring, LH | ||
| 18 | 421411 | Retainer, Neutral Spring, RH | ||
| 18A | 421412 | Retainer, Neutral Spring, RH | ||
| 19 | 45405 | Seat Switch Bracket | ||
| 20 | 48463 | Spring | ||
| 21 | 04064-04 | Clevis Pin | ||
| 22 | 04017-15 | Bolt, Serrated Flange Hex Head 5/16-18 x 3/4" | ||
| 23 | 04062-02 | Hair Pin, Cotter | ||
| 24 | 481606 | Seat Assembly w/Adjuster Rails | ||
| 25 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 26 | 46754 | Seat Base | ||
| 27 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 28 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 29 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 30 | 04017-06 | Bolt, Serrated Flange Hex Head 1/4-20 x 1" | ||
| 31 | 04001-31 | Bolt, Hex Head 3/8-16 x 2-1/2" | ||
| 32 | 04001-15 | Flatwasher, 5/16" (.313 x .875 x .083) | ||
| 33 | 481704 | Seat Spring | ||
| 34 | 421198 | Fender Panel, LH | ||
| 35 | 48566 | Cable, Seat Stop | ||
| 36 | 48464 | Ball Joint, Neutral | ||
| 37 | 45971 | Fender , LH | ||
| 38 | 46392 | Caster Wheel Yoke Assembly | ||
| 39 | 04066-01 | Quick Pin | ||
| 40 | 45325 | Caster Wheel Yoke | ||
| 41 | 04021-07 | Nut, Elastic Stop 1/2-13 | ||
| 42 | 43041 | Spacer | ||
| 43 | 04001-80 | Bolt, Hex Head 1/2-13 x 6-1/2" | ||
| 44 | 48537 | Wheel Assembly, Complete | ||
| 45 | 48006-07 | Retainer | ||
| 46 | 48537-02 | Tire Only | ||
| 47 | 48537-03 | Rim Only | ||
| 48 | 43022 | Sleeve | ||
| 49 | 48006-06 | Roller Bearing | ||
| 50 | 48717 | Seat Switch | ||
| 51 | 481532-01 | Seat, Back Cushion | ||
| 52 | 481532-02 | Seat, Bottom Cushion | ||
| 53 | 481532-03 | Arm Pad, RH | ||
| 54 | 481532-04 | Arm Pad, LH | ||
| 55 | 481474 | Neutral Interlock Switch | ||
| 56 | 422535 | Neutral Lock Bracket, RH | ||
| 56A | 422536 | Neutral Lock Bracket, LH | ||
| 57 | 04017-24 | Bolt, Serrated Flange Hex Head 5/16-18 x 2-3/4" | ||
| 58 | 43240 | Spacer, Neutral Spring | ||
| 59 | 43258 | Spacer, Neutral Lock Bracket | ||
| 60 | 04020-14 | Nut, Hex 3/8-24 UNF | ||
| 61 | 48704-06 | Bolt, Hex Head w/Washer, 1/4-20 x 3/4" | ||
| 62 | 04001-99 | Bolt, Hex Head 3/8-24 x 6-1/2", UNF | ||
| 63 | 46570 | Seat Adjustment, Track Set | ||
| 64 | 48030-09 | Cable Clamp, .50 ID | ||
| 65 | 04001-09 | Bolt, Hex Head 5/16-18 x 1" | ||
| 67 | Bolt, Hex Head 1/4-20 x 1.25" | Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. | ||
| 68 | Lockwasher, 5/16" | Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. | ||
| 69B | 461084 | Main Frame Assy |

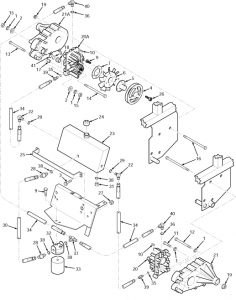

48″ Hydraulic Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 04030-03 | Lockwasher, 5/16" | ||
| 2 | 04040-04 | Flatwasher, 5/16" (.344 x .688 x .065) | ||
| 3 | 04010-19 | Screw, 1/4-20 x 1/2",Hex-Button Head | ||
| 4 | 48790 | Pump, Pulley | ||
| 5 | 48791 | Tapered Hub, 15 mm Bore | ||
| 6 | 481696 | Fan | ||
| 7 | 421209 | Washer, Back-up | ||
| 8 | 04050-13 | Snap Ring | ||
| 9 | 04017-04 | Bolt, Serrated Flange Hex Head 1/4-20 x 1/2" | ||
| 10 | 04063-14 | Key, 5 mm x 5 mm x 25 mm | ||
| 11 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 12 | 04001-96 | Bolt, Hex Head 5/16-18 x 4-1/2" | ||
| 13 | 04001-95 | Bolt, Hex Head 5/16-18 x 5" | ||
| 14 | 04001-94 | Bolt, Hex Head 5/16-18 x 7-1/2" | ||
| 15 | 04020-03 | Nut, Hex 5/16-18 | ||
| 16 | 04001-30 | Bolt, Hex Head 3/8-16 x 4" | ||
| 17 | 48878 | Spacer | ||
| 18 | 48875 | Gear | ||
| 19 | 04019-04 | Nut, Serrated Flange Hex Head 3/8-16 | ||
| 20 | 48784 | Pump, LH (Includes spacers) | ||
| 20A | 48785 | Pump, RH (Includes spacers) | ||
| 21 | 481578 | Axle, LH (Includes brake lever) | ||
| 21A | 481577 | Axle, RH (Includes brake lever) | ||
| 22 | 48350-09 | Elbow, 90 Degree 9/16-18 JIC to 9/16-18 “O” Ring | ||
| 23 | 48860 | Oil Tank Reservoir | ||
| 24 | 48894 | Cap, Oil Reservoir | ||
| 25 | 421208 | Strap, Oil Reservoir | ||
| 26 | 04015-14 | Screw, Socket Hex Cap 1/4-20 x 1-3/8" | ||
| 27 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 28 | 48485-01 | Elbow, 45 Degree 3/4-16 JIC to 3/4-16 “O” Ring | ||
| 29 | 48603-06 | “O” Ring, 5/64 x 15/32 ID | ||
| 30 | 48872 | Hose Assembly, Filter Inlet | ||
| 31 | 48604-02 | Plug, 3/4-16 “O” Ring | ||
| 32 | 48462-02 | Head, Oil Filter | ||
| 33 | 48462-01 | Oil Filter, Special | ||
| 34 | 48871 | Hose Assembly | ||
| 35 | 48603-04 | “O” Ring, 3/32 x 3/4 ID | ||
| 36 | 48603-03 | “O” Ring, 1/16 x 3/8 ID | ||
| 37 | 48810-01 | 1/2" T-fitting, 3/4-16 JIC to 3/4-16 “O” Ring | ||
| 38 | 48603-02 | “O” Ring, 3/32 x 5/8 ID | ||
| 39 | 48572-02 | Tube Union 3/4-16 JIC to 7/8-14 “O” Ring | ||
| 40 | 48350-10 | Elbow, 90 Degree 9/16-18 JIC to 7/16-20 “O” Ring | ||
| 41 | HG50267 | “O” Ring | ||
| 42 | 481507 | Gasket, Hydraulic Tank Cap | ||
| 43 | 481507 | Filler Neck Insert |
52″ Hydraulic Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 04030-03 | Lockwasher, 5/16" | ||
| 2 | 04040-04 | Flatwasher, 5/16" (.344 x .688 x .065) | ||
| 3 | 04010-19 | Screw, 1/4-20 x 1/2",Hex-Button Head | ||
| 4 | 48790 | Pump, Pulley | ||
| 5 | 48791 | Tapered Hub, 15 mm Bore | ||
| 6 | 481696 | Fan | ||
| 7 | 421209 | Washer, Back-up | ||
| 8 | 04050-13 | Snap Ring | ||
| 9 | 04017-04 | Bolt, Serrated Flange Hex Head 1/4-20 x 1/2" | ||
| 10 | 04063-14 | Key, 5 mm x 5 mm x 25 mm | ||
| 11 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 12 | 04001-96 | Bolt, Hex Head 5/16-18 x 4-1/2" | ||
| 13 | 04001-95 | Bolt, Hex Head 5/16-18 x 5" | ||
| 14 | 04001-94 | Bolt, Hex Head 5/16-18 x 7-1/2" | ||
| 15 | 04020-03 | Nut, Hex 5/16-18 | ||
| 16 | 04001-30 | Bolt, Hex Head 3/8-16 x 4" | ||
| 17 | 48878 | Spacer | ||
| 18 | 48875 | Gear | ||
| 19 | 04019-04 | Nut, Serrated Flange Hex Head 3/8-16 | ||
| 20 | 48784 | Pump, LH (Includes spacers) | ||
| 20A | 48785 | Pump, RH (Includes spacers) | ||
| 21 | 481578 | Axle, LH (Includes brake lever) | ||
| 21A | 481577 | Axle, RH (Includes brake lever) | ||
| 22 | 48350-09 | Elbow, 90 Degree 9/16-18 JIC to 9/16-18 “O” Ring | ||
| 23 | 48860 | Oil Tank Reservoir | ||
| 24 | 48894 | Cap, Oil Reservoir | ||
| 25 | 421208 | Strap, Oil Reservoir | ||
| 26 | 04015-14 | Screw, Socket Hex Cap 1/4-20 x 1-3/8" | ||
| 27 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 28 | 48485-01 | Elbow, 45 Degree 3/4-16 JIC to 3/4-16 “O” Ring | ||
| 29 | 48603-06 | “O” Ring, 5/64 x 15/32 ID | ||
| 30 | 48872 | Hose Assembly, Filter Inlet | ||
| 31 | 48604-02 | Plug, 3/4-16 “O” Ring | ||
| 32 | 48462-02 | Head, Oil Filter | ||
| 33 | 48462-01 | Oil Filter, Special | ||
| 34 | 48871 | Hose Assembly | ||
| 35 | 48603-04 | “O” Ring, 3/32 x 3/4 ID | ||
| 36 | 48603-03 | “O” Ring, 1/16 x 3/8 ID | ||
| 37 | 48810-01 | 1/2" T-fitting, 3/4-16 JIC to 3/4-16 “O” Ring | ||
| 38 | 48603-02 | “O” Ring, 3/32 x 5/8 ID | ||
| 39 | 48572-02 | Tube Union 3/4-16 JIC to 7/8-14 “O” Ring | ||
| 40 | 48350-10 | Elbow, 90 Degree 9/16-18 JIC to 7/16-20 “O” Ring | ||
| 41 | HG50267 | “O” Ring | ||
| 42 | 481507 | Gasket, Hydraulic Tank Cap | ||
| 43 | 481507 | Filler Neck Insert |
61″ Hydraulic Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 04030-03 | Lockwasher, 5/16" | ||
| 2 | 04040-04 | Flatwasher, 5/16" (.344 x .688 x .065) | ||
| 3 | 04010-19 | Screw, 1/4-20 x 1/2",Hex-Button Head | ||
| 4 | 48790 | Pump, Pulley | ||
| 5 | 48791 | Tapered Hub, 15 mm Bore | ||
| 6 | 481696 | Fan | ||
| 7 | 421209 | Washer, Back-up | ||
| 8 | 04050-13 | Snap Ring | ||
| 9 | 04017-04 | Bolt, Serrated Flange Hex Head 1/4-20 x 1/2" | ||
| 10 | 04063-14 | Key, 5 mm x 5 mm x 25 mm | ||
| 11 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 12 | 04001-96 | Bolt, Hex Head 5/16-18 x 4-1/2" | ||
| 13 | 04001-95 | Bolt, Hex Head 5/16-18 x 5" | ||
| 14 | 04001-94 | Bolt, Hex Head 5/16-18 x 7-1/2" | ||
| 15 | 04020-03 | Nut, Hex 5/16-18 | ||
| 16 | 04001-30 | Bolt, Hex Head 3/8-16 x 4" | ||
| 17 | 48878 | Spacer | ||
| 18 | 48875 | Gear | ||
| 19 | 04019-04 | Nut, Serrated Flange Hex Head 3/8-16 | ||
| 20 | 48784 | Pump, LH (Includes spacers) | ||
| 20A | 48785 | Pump, RH (Includes spacers) | ||
| 21 | 481578 | Axle, LH (Includes brake lever) | ||
| 21A | 481577 | Axle, RH (Includes brake lever) | ||
| 22 | 48350-09 | Elbow, 90 Degree 9/16-18 JIC to 9/16-18 “O” Ring | ||
| 23 | 48860 | Oil Tank Reservoir | ||
| 24 | 48894 | Cap, Oil Reservoir | ||
| 25 | 421208 | Strap, Oil Reservoir | ||
| 26 | 04015-14 | Screw, Socket Hex Cap 1/4-20 x 1-3/8" | ||
| 27 | 04021-08 | Nut, Elastic Stop 1/4-20 | ||
| 28 | 48485-01 | Elbow, 45 Degree 3/4-16 JIC to 3/4-16 “O” Ring | ||
| 29 | 48603-06 | “O” Ring, 5/64 x 15/32 ID | ||
| 30 | 48872 | Hose Assembly, Filter Inlet | ||
| 31 | 48604-02 | Plug, 3/4-16 “O” Ring | ||
| 32 | 48462-02 | Head, Oil Filter | ||
| 33 | 48462-01 | Oil Filter, Special | ||
| 34 | 48871 | Hose Assembly | ||
| 35 | 48603-04 | “O” Ring, 3/32 x 3/4 ID | ||
| 36 | 48603-03 | “O” Ring, 1/16 x 3/8 ID | ||
| 37 | 48810-01 | 1/2" T-fitting, 3/4-16 JIC to 3/4-16 “O” Ring | ||
| 38 | 48603-02 | “O” Ring, 3/32 x 5/8 ID | ||
| 39 | 48572-02 | Tube Union 3/4-16 JIC to 7/8-14 “O” Ring | ||
| 40 | 48350-10 | Elbow, 90 Degree 9/16-18 JIC to 7/16-20 “O” Ring | ||
| 41 | HG50267 | “O” Ring | ||
| 42 | 481507 | Gasket, Hydraulic Tank Cap | ||
| 43 | 481507 | Filler Neck Insert |

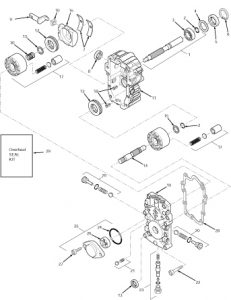

BDU-10L Hydraulic Pump
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | HG2513038 | Pump Shaft Kit | ||
| 2 | HG2003016 | Wire Retaining Ring | ||
| 3 | HG2003043 | Ball Bearing | ||
| 4 | HG2003018 | Spacer | ||
| 5 | HG9008000-0128 | Lip Seal (16 x 35 x 7) | ||
| 6 | HG2003052 | Retaining Ring | ||
| 7 | HG2003023 | Cradle Bearing | ||
| 8 | HG9008000-126 | Lip Seal (12 x 35 x 7) | ||
| 9 | HG2003005 | Trunnion Arm | ||
| 10 | HG2000015 | Slot Guide | ||
| 11 | HG2513020 | Transmission Housing Kit RH | ||
| HG2513003 | Transmission Housing Kit LH | |||
| 12 | HG2003044 | Thrust Ball Bearing Assembly | ||
| 13 | HG9008000-0127 | Lip Seal (15 x 24 x 7) | ||
| 14 | HG2003032 | Motor Shaft | ||
| 15 | HG2003017 | Block Thrust Washer | ||
| 16 | HG2003087 | Variable Swash Plate | ||
| 17 | HG70079 BDP-10L | Block Assembly | ||
| 18 | HG9004800-2506 | Pin ST Holder | ||
| 19 | HG2513006 | Center Section Kit | ||
| 20 | HG2510027 | Check Valve Kit | ||
| 21 | HG2510011 | Charge Relief Kit | ||
| 22 | HG9007314-0808 | Socket Head Cap Screw | ||
| 23 | HG2513011 | Bypass Valve Kit | ||
| 24 | HG9004101-1340 | O-Ring | ||
| 25 | HG2513027 | Charge Pump Cover | ||
| 26 | HG50273 | Gerotor Assembly | ||
| 27 | HG50095 | Capscrew (6mm x 20") | ||
| 28 | HG2003060 | Center Section Gasket | ||
| 29 | HG2513013 | Overhaul Seal Kit | ||
| 30 | HG2000025 | Spring Block |

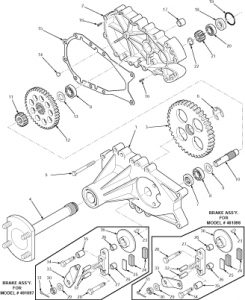

Axle Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | HG62768 | Axle Housing Assembly | ||
| 2 | HG44533 | Hydro Mount Housing | ||
| 3 | HG44358 | Splined 72 Tooth Final Drive Gear | ||
| 4 | HG62681 | Axle Shaft Assembly | ||
| 5 | HG44366 | Bolt, 1/4-20 x 2-1/2" Hex Head | ||
| 6 | HG44359 | E-Ring .875 | ||
| 7 | HG50263 | Oil Seal, 1.25 x .625 | ||
| 8 | HG44147 | Ball Bearing, .62 ID x 1.38 x .44 | ||
| 9 | HG44371 | Washer, HT .62 ID x 1.0 OD x .05 Thick | ||
| 10 | HG44351 | Brake Shaft (Splined) | ||
| 11 | HG50419 | Splined Reduction Gear, 17 Tooth | ||
| 12 | HG50420 | Splined 60 Tooth Gear | ||
| 13 | HG44371 | Washer, HT .62 ID x 1.0 OD x .05 Thick | ||
| 14 | HG9001214-3700 | Ball, 3/8" Diameter | ||
| 15 | HG50223 | Gasket, Housing | ||
| 16 | HG44269 | Pin, Spring 3/16" x 1/2" x 12" Long | ||
| 17 | HG23747 | Mounting Spacer | ||
| 18 | HG44355 | Bearing, Spacer | ||
| 19 | HG50267 | O-Ring | ||
| 20 | HG44232 | Ball Bearing, 15mm x 35mm x 11mm | ||
| 21 | HG44353 | Input Gear, 11 Tooth | ||
| 22 | HG44354 | Retaining Ring | ||
| 23 | HG44143 | Key, Hi Pro 3/16 x 5/8 | ||
| 24 | HG44132 | Puck, Brake | ||
| 25 | HG44134 | Plate, Puck | ||
| 26 | HG23770 | Brake Spacer | ||
| 27 | HG62589 | Brake Yoke Assembly | ||
| 28 | HG44276 | Bolt, 1/4-20 x 1-1/2" W/Patch | ||
| 29 | HG44130 | Washer, 7/16 x 7/8 OD x .06 HT | ||
| 30 | HG44142 | Nut, Castle 5/16-24 PL | ||
| 31 | HG44101 | Pin, Cotter | ||
| 32 | HG44127 | Pin, Brake Actuating | ||
| 33 | HG44094 | Arm, Brake Actuator (LH Assy.) | ||
| 33 | HG44094 | Arm, Brake Actuator (RH Assy.) | ||
| 34 | HG44612 | Bolt, 1/4-20 x 2-1/2" | ||
| 35 | HG23711 | Spacer, Torsion Spring | ||
| 36 | HG44090 | Disc, Brake |

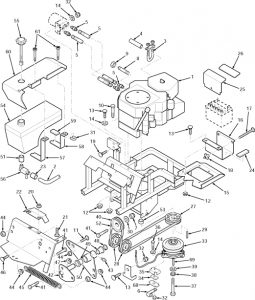

48″ Traction Drive Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481116 | Engine 18 hp Kohler CV For SSZ-18CV | ||
| 2 | 48058-03 | Fuel Hose | ||
| 3 | 48058-03 | Muffler Clamp | ||
| 4 | 48964 | Tube, Exaust | ||
| 5 | Kohler Fittings, Purchase From Kohler | Kohler hardware which should be purchased from an authorised Kohler Dealer. | ||
| 6 | 48030-09 | Clamp, 50 ID | ||
| 7 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 8 | 48402-06 | Extention, 2.50" | ||
| 9 | 48257 | Pipe Cap | ||
| 10 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head | ||
| 11 | 04003-05 | Bolt, 7/8-16 x 1.50" Carriage | ||
| 12 | 04019-03 | Nut, Serrated Flange Hex Head 5/16-18 | ||
| 13 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 14 | 04040-15 | Flatwasher, 5/16" (.313 x .875 x .083) | ||
| 15 | 45479 | Fender, LH | ||
| 16 | 421197 | Battery Box | ||
| 17 | 04003-01 | Bolt, Carriage 1/4-20 x 6" | ||
| 18 | 04029-01 | Wing Nut, 1/4-20 | ||
| 19 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 20 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 21 | 04003-02 | Bolt, Carriage 1/4-20 x 3/4" | ||
| 22 | 421624 | Belt Guard | ||
| 23 | 48059-01 | Fuel Hose Clamp | ||
| 24 | 48661 | Rubber Pad | ||
| 25 | 42392 | Battery Cover | ||
| 26 | 48099 | Pad, Battery Cover | ||
| 27 | 48792 | Pulley | ||
| 28 | 48790 | Pulley, Pump | ||
| 29 | 04063-06 | Key, 1/4 x 1/4 x 1-1/2" | ||
| 30 | 04041-07 | Flatwasher, 3/8" (.391 x .938 x .105) | ||
| 31 | 04110-01 | U-Nut, 1/4-20 | ||
| 32 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 33 | 461073 | Electric Clutch | ||
| 34 | 481716 | Rubber Pad, Clutch Stop | ||
| 35 | 422533 | Backing Plate | ||
| 36 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 37 | 04001-103 | Bolt, Hex Head 7/16-20 x 2.25 (SSZ BV) | ||
| 37A | 04001-93 | Bolt, Hex Head 7/16-20 x 3.00" (SSZ CV) | ||
| 38 | 04030-05 | Lockwasher, 7/16" | ||
| 39 | 04041-28 | Flatwasher,Retainer | ||
| 40 | 48181 | Idler, Pulley | ||
| 41 | 04001-21 | Bolt, Hex Head 3/8-16 x 1.75" | ||
| 42 | 45650 | Pivot Weldment, Idler Arm | ||
| 43 | 48114-04 | Grease Fitting | ||
| 44 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 | ||
| 45 | 48961 | Spring, Pump Drive Idler | ||
| 46 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4 | ||
| 47 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 48 | 04050-05 | Ring, Retaining 1.125 Diameter External “E” | ||
| 49 | 48100-02 | Bushing, 1.125 Sintered | ||
| 50 | 46755 | Idler Arm Weldment, Pump Drive | ||
| 51 | 48309 | Bushing, Fuel Tank Valve | ||
| 52 | 48760 | Belt, Pump Drive | ||
| 53 | 43248 | Spacer, Crankshaft | ||
| 54 | 48651 | Fuel Tank (Includes shut-off valve) | ||
| 55 | 481556 | Fuel Tank Cap | ||
| 56 | 48308 | Fuel Shut-off Valve | ||
| 57 | 42944 | Fuel Tank Strap, Long | ||
| 58 | 42945 | Fuel Tank Strap, Short | ||
| 59 | 48657 | Rubber Pad | ||
| 60 | 46505 | Fender Assembly, RH (with decal) | ||
| 61 | 04010-10 | Screw, Machine 1/4-20 x 2" Phillips Head | ||
| 62 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serr.Flng. Hex Head | ||
| 63 | 04003-05 | Bolt, Carriage 7/8-16 x 1.50" | ||
| 64 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 65 | 48030-09 | Clamp, .50 ID | ||
| 66 | Kohler Fittings, Purchase From Kohler | Kohler hardware which should be purchased from an authorised Kohler Dealer. | ||
| 67 | 48600-01 | Elbow, Street | ||
| 68 | 422534 | Backing Plate |
52″ Traction Drive Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481117 | Engine 20 hp Kohler CV For SSZ-20CV | ||
| 2 | 48058-03 | Fuel Hose | ||
| 3 | 48058-03 | Muffler Clamp | ||
| 4 | 48964 | Tube, Exaust | ||
| 5 | Kohler Fittings, Purchase From Kohler | Kohler hardware which should be purchased from an authorised Kohler Dealer. | ||
| 6 | 48030-09 | Clamp, 50 ID | ||
| 7 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 8 | 48402-06 | Extention, 2.50" | ||
| 9 | 48257 | Pipe Cap | ||
| 10 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head | ||
| 11 | 04003-05 | Bolt, 7/8-16 x 1.50" Carriage | ||
| 12 | 04019-03 | Nut, Serrated Flange Hex Head 5/16-18 | ||
| 13 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 14 | 04040-15 | Flatwasher, 5/16" (.313 x .875 x .083) | ||
| 15 | 45479 | Fender, LH | ||
| 16 | 421197 | Battery Box | ||
| 17 | 04003-01 | Bolt, Carriage 1/4-20 x 6" | ||
| 18 | 04029-01 | Wing Nut, 1/4-20 | ||
| 19 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 20 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 21 | 04003-02 | Bolt, Carriage 1/4-20 x 3/4" | ||
| 22 | 421624 | Belt Guard | ||
| 23 | 48059-01 | Fuel Hose Clamp | ||
| 24 | 48661 | Rubber Pad | ||
| 25 | 42392 | Battery Cover | ||
| 26 | 48099 | Pad, Battery Cover | ||
| 27 | 48792 | Pulley | ||
| 28 | 48790 | Pulley, Pump | ||
| 30 | 04041-07 | Flatwasher, 3/8" (.391 x .938 x .105) | ||
| 31 | 04110-01 | U-Nut, 1/4-20 | ||
| 32 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 33 | 461073 | Electric Clutch | ||
| 34 | 481716 | Rubber Pad, Clutch Stop | ||
| 35 | 422533 | Backing Plate | ||
| 36 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 37 | 04001-103 | Bolt, Hex Head 7/16-20 x 2.25 (SSZ BV) | ||
| 37A | 04001-93 | Bolt, Hex Head 7/16-20 x 3.00" (SSZ CV) | ||
| 38 | 04030-05 | Lockwasher, 7/16" | ||
| 39 | 04041-28 | Flatwasher,Retainer | ||
| 40 | 48181 | Idler, Pulley | ||
| 41 | 04001-21 | Bolt, Hex Head 3/8-16 x 1.75" | ||
| 42 | 45650 | Pivot Weldment, Idler Arm | ||
| 43 | 48114-04 | Grease Fitting | ||
| 44 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 | ||
| 45 | 48961 | Spring, Pump Drive Idler | ||
| 46 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4 | ||
| 47 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 48 | 04050-05 | Ring, Retaining 1.125 Diameter External “E” | ||
| 49 | 48100-02 | Bushing, 1.125 Sintered | ||
| 50 | 46755 | Idler Arm Weldment, Pump Drive | ||
| 51 | 48309 | Bushing, Fuel Tank Valve | ||
| 52 | 48760 | Belt, Pump Drive | ||
| 53 | 43248 | Spacer, Crankshaft | ||
| 54 | 48651 | Fuel Tank (Includes shut-off valve) | ||
| 55 | 481556 | Fuel Tank Cap | ||
| 56 | 48308 | Fuel Shut-off Valve | ||
| 57 | 42944 | Fuel Tank Strap, Long | ||
| 58 | 42945 | Fuel Tank Strap, Short | ||
| 59 | 48657 | Rubber Pad | ||
| 60 | 46505 | Fender Assembly, RH (with decal) | ||
| 61 | 04010-10 | Screw, Machine 1/4-20 x 2" Phillips Head | ||
| 62 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serr.Flng. Hex Head | ||
| 63 | 04003-05 | Bolt, Carriage 7/8-16 x 1.50" | ||
| 64 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 65 | 48030-09 | Clamp, .50 ID | ||
| 66 | Kohler Fittings, Purchase From Kohler | Kohler hardware which should be purchased from an authorised Kohler Dealer. | ||
| 67 | 48600-01 | Elbow, Street | ||
| 68 | 422534 | Backing Plate |
61″ Traction Drive Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481118 | Engine 22 hp Kohler CV For SSZ-22CV | ||
| 2 | 48058-03 | Fuel Hose | ||
| 3 | 48058-03 | Muffler Clamp | ||
| 4 | 48964 | Tube, Exaust | ||
| 5 | Kohler Fittings, Purchase From Kohler | Kohler hardware which should be purchased from an authorised Kohler Dealer. | ||
| 6 | 48030-09 | Clamp, 50 ID | ||
| 7 | 04021-09 | Nut, 3/8-16 Elastic Stop | ||
| 8 | 48402-06 | Extention, 2.50" | ||
| 9 | 48257 | Pipe Cap | ||
| 10 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head | ||
| 11 | 04003-05 | Bolt, 7/8-16 x 1.50" Carriage | ||
| 12 | 04019-03 | Nut, Serrated Flange Hex Head 5/16-18 | ||
| 13 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 14 | 04040-15 | Flatwasher, 5/16" (.313 x .875 x .083) | ||
| 15 | 45479 | Fender, LH | ||
| 16 | 421197 | Battery Box | ||
| 17 | 04003-01 | Bolt, Carriage 1/4-20 x 6" | ||
| 18 | 04029-01 | Wing Nut, 1/4-20 | ||
| 19 | 04003-04 | Bolt, Carriage 5/16-18 x 1" | ||
| 20 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 21 | 04003-02 | Bolt, Carriage 1/4-20 x 3/4" | ||
| 22 | 421624 | Belt Guard | ||
| 23 | 48059-01 | Fuel Hose Clamp | ||
| 24 | 48661 | Rubber Pad | ||
| 25 | 42392 | Battery Cover | ||
| 26 | 48099 | Pad, Battery Cover | ||
| 27 | 48792 | Pulley | ||
| 28 | 48790 | Pulley, Pump | ||
| 30 | 04041-07 | Flatwasher, 3/8" (.391 x .938 x .105) | ||
| 31 | 04110-01 | U-Nut, 1/4-20 | ||
| 32 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 33 | 461073 | Electric Clutch | ||
| 34 | 481716 | Rubber Pad, Clutch Stop | ||
| 35 | 422533 | Backing Plate | ||
| 36 | 04001-12 | Bolt, Hex Head 5/16-18 x 1-3/4" | ||
| 37 | 04001-103 | Bolt, Hex Head 7/16-20 x 2.25 (SSZ BV) | ||
| 37A | 04001-93 | Bolt, Hex Head 7/16-20 x 3.00" (SSZ CV) | ||
| 38 | 04030-05 | Lockwasher, 7/16" | ||
| 39 | 04041-28 | Flatwasher,Retainer | ||
| 40 | 48181 | Idler, Pulley | ||
| 41 | 04001-21 | Bolt, Hex Head 3/8-16 x 1.75" | ||
| 42 | 45650 | Pivot Weldment, Idler Arm | ||
| 43 | 48114-04 | Grease Fitting | ||
| 44 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 | ||
| 45 | 48961 | Spring, Pump Drive Idler | ||
| 46 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4 | ||
| 47 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 48 | 04050-05 | Ring, Retaining 1.125 Diameter External “E” | ||
| 49 | 48100-02 | Bushing, 1.125 Sintered | ||
| 50 | 46755 | Idler Arm Weldment, Pump Drive | ||
| 51 | 48309 | Bushing, Fuel Tank Valve | ||
| 52 | 48760 | Belt, Pump Drive | ||
| 53 | 43248 | Spacer, Crankshaft | ||
| 54 | 48651 | Fuel Tank (Includes shut-off valve) | ||
| 55 | 481556 | Fuel Tank Cap | ||
| 56 | 48308 | Fuel Shut-off Valve | ||
| 57 | 42944 | Fuel Tank Strap, Long | ||
| 58 | 42945 | Fuel Tank Strap, Short | ||
| 59 | 48657 | Rubber Pad | ||
| 60 | 46505 | Fender Assembly, RH (with decal) | ||
| 61 | 04010-10 | Screw, Machine 1/4-20 x 2" Phillips Head | ||
| 62 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serr.Flng. Hex Head | ||
| 63 | 04003-05 | Bolt, Carriage 7/8-16 x 1.50" | ||
| 64 | 04021-09 | Nut, Elastic Stop 3/8-16 | ||
| 65 | 48030-09 | Clamp, .50 ID | ||
| 66 | Kohler Fittings, Purchase From Kohler | Kohler hardware which should be purchased from an authorised Kohler Dealer. | ||
| 67 | 48600-01 | Elbow, Street | ||
| 68 | 422534 | Backing Plate |

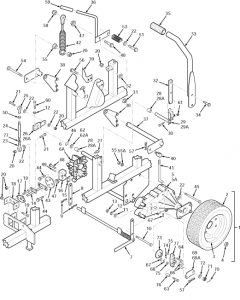

48″ Brake And Steering Controls
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481503 | Drive Wheel Assembly | ||
| 1 | 481504 | Drive Wheel Assembly | ||
| 2 | 481619 | Tire Only | ||
| 3 | 48321-04 | Rim Only | ||
| 3 | 48958-03 | Rim Only | ||
| 4 | 04028-01 | Lug Nut, 1/2-20 | ||
| 5 | 481578 | Axle, LH (Includes brake lever) | ||
| 5A | 481577 | Axle, RH (Includes brake lever) | ||
| 6 | 48784 | Pump, LH | ||
| 6A | 48785 | Pump, RH | ||
| 7 | 45464 | Dump Valve, Lever Weldment | ||
| 8 | 421212 | Bracket, Mounting | ||
| 9 | 04062-01 | Hair Pin | ||
| 10 | 04001-95 | Bolt, Hex Head 5/16-18 x 5" | ||
| 11 | Flatwasher, 5/16" | |||
| 12 | Lockwasher, 5/16" | |||
| 13 | Nut, Hex 5/16-18 | |||
| 14 | 45462 | Pump Weldment Shaft | ||
| 15 | 421203 | Clamp Plate | ||
| 16 | 48829 | Block, Pump Control | ||
| 17 | 48796 | Bushing, Self Align | ||
| 18 | 421204 | Bracket, Bearing | ||
| 19 | Bolt, Hex Head 3/8-16 x 1" | |||
| 20 | Nut, Elastic Stop 3/8-16 | |||
| 21 | Bolt, Hex Head 3/8-16 x 1-1/2" | |||
| 22 | 04041-07 | Flatwasher, 3/8" Special | ||
| 23 | 48544 | Ball Joint, LH Thread | ||
| 24 | 43246 | Link, Turnbuckle | ||
| 25 | 48464 | Ball Joint, RH Thread | ||
| 26 | 45895 | Lever, Pump Transfer LH | ||
| 26A | 45896 | Lever, Pump Transfer RH | ||
| 27 | 48114-04 | Grease Fitting | ||
| 28 | 48100-06 | Bushing, LH | ||
| 28A | 48100-05 | Bushing, RH | ||
| 29 | 45897 | Control Lever, LH | ||
| 29A | 45898 | Control Lever, RH | ||
| 30 | Bolt, Hex Head 5/16-18 x 1-1/2" | |||
| 31 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 32 | 421145 | Bar Control Lever | ||
| 33 | 461037 | Control Handle | ||
| 34 | 04017-27 | Bolt, Serrated Flange Hex Head 3/8-16 x 1" | ||
| 35 | 481599 | Grip, Control Handle | ||
| 36 | 45482 | Lever Weldment, Parking Brake | ||
| 37 | 45551 | Cam Weldment, Parking Brake | ||
| 38 | 422459 | Plate, Parking Brake | ||
| 39 | 421266 | Latch, Brake | ||
| 40 | 43256 | Swivel Joint | ||
| 41 | 44080 | Rod, Brake | ||
| 42 | 48840 | Cable Assembly, Parking Brake | ||
| 43 | 422273 | Plate, Coupler | ||
| 44 | 04017-05 | Bolt, Serrated Flange Hex Hd 1/4-20 x 3/4" | ||
| 45 | Bolt, Hex Head 3/8-16 x 4" | |||
| 46 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 47 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 48 | 04017-07 | Bolt, Serr.Flng.Hex Head 1/4-20 x 1-1/4" | ||
| 49 | 04060-06 | Roll Pin, 3/16 x 3/4" | ||
| 50 | Nut, Hex 3/8-24 | |||
| 51 | Bolt, Hex Head 3/8-16 x 2" | |||
| 52 | 04041-12 | Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.) | ||
| 53 | 48050 | Spring, Brake Lever | ||
| 54 | Bolt, Carriage 3/8-16 x 1-1/2" | |||
| 55 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 | ||
| 56 | 04017-16 | Bolt, Serr. Flng. HexHead 5/16-18 x 3/4" | ||
| 57 | 04062-02 | Hair Pin, 1/16" | ||
| 58 | Nut, Elastic Stop 1/4-20 | |||
| 59 | 48342 | Grip, Parking Brake | ||
| 60 | Bolt, Hex Head 5/16-18 x 1-1/2" | |||
| 61 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 62 | 04041-08 | Flatwasher, 3/4" | ||
| 62A | 04041-08S | Flatwasher, 3/4" Special | ||
| 63 | HG44612 | Bolt, 1/4-20 x 2-1/2 GR. 5 w/patch | ||
| 64 | HG44276 | Bolt, 1/4-20 x 1-1/2 GR. 5 w/patch | ||
| 65 | 04008-02 | Bolt, Wheel Mounting | ||
| 66 | HG44127 | Pins, Actuating | ||
| 67 | HG44132 | Brake Puck | ||
| 68 | HG44134 | Backing Plate | ||
| 69 | HG44094 | Actuating Lever, RH | ||
| 69A | HG44613 | Actuating Lever, LH | ||
| 70 | Pin, Cotter | |||
| 71 | HG44142 | Nut, Castle | ||
| 72 | HG44130 | Washer, 7/16 x 7/8 OD x .06 HT | ||
| 73 | HG44090 | Disc, Brake | ||
| 74 | HG44143 | Key, Hi Pro 3/16 x 5/8 | ||
| 75 | HG23770 | Brake Spacer | ||
| 76 | HG23711 | Spacer, Torsion Spring | ||
| 77 | HG62589 | Brake Yoke Assembly | ||
| 78 | 04008-02 | Wheel Stud |
52″ Brake And Steering Controls
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481504 | Drive Wheel Assembly | ||
| 2 | 481619 | Tire Only | ||
| 3 | 48958-03 | Rim Only | ||
| 4 | 04028-01 | Lug Nut, 1/2-20 | ||
| 5 | 481578 | Axle, LH (Includes brake lever) | ||
| 5A | 481577 | Axle, RH (Includes brake lever) | ||
| 6 | 48784 | Pump, LH | ||
| 6A | 48785 | Pump, RH | ||
| 7 | 45464 | Dump Valve, Lever Weldment | ||
| 8 | 421212 | Bracket, Mounting | ||
| 9 | 04062-01 | Hair Pin | ||
| 10 | 04001-95 | Bolt, Hex Head 5/16-18 x 5" | ||
| 11 | Flatwasher, 5/16" | |||
| 12 | Lockwasher, 5/16" | |||
| 13 | Nut, Hex 5/16-18 | |||
| 14 | 45462 | Pump Weldment Shaft | ||
| 15 | 421203 | Clamp Plate | ||
| 16 | 48829 | Block, Pump Control | ||
| 17 | 48796 | Bushing, Self Align | ||
| 18 | 421204 | Bracket, Bearing | ||
| 19 | Bolt, Hex Head 3/8-16 x 1" | |||
| 20 | Nut, Elastic Stop 3/8-16 | |||
| 21 | Bolt, Hex Head 3/8-16 x 1-1/2" | |||
| 22 | 04041-07 | Flatwasher, 3/8" Special | ||
| 23 | 48544 | Ball Joint, LH Thread | ||
| 24 | 43246 | Link, Turnbuckle | ||
| 25 | 48464 | Ball Joint, RH Thread | ||
| 26 | 45895 | Lever, Pump Transfer LH | ||
| 26A | 45896 | Lever, Pump Transfer RH | ||
| 27 | 48114-04 | Grease Fitting | ||
| 28 | 48100-06 | Bushing, LH | ||
| 28A | 48100-05 | Bushing, RH | ||
| 29 | 45897 | Control Lever, LH | ||
| 29A | 45898 | Control Lever, RH | ||
| 30 | Bolt, Hex Head 5/16-18 x 1-1/2" | |||
| 31 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 32 | 421145 | Bar Control Lever | ||
| 33 | 461037 | Control Handle | ||
| 34 | 04017-27 | Bolt, Serrated Flange Hex Head 3/8-16 x 1" | ||
| 35 | 481599 | Grip, Control Handle | ||
| 36 | 45482 | Lever Weldment, Parking Brake | ||
| 37 | 45551 | Cam Weldment, Parking Brake | ||
| 38 | 422459 | Plate, Parking Brake | ||
| 39 | 421266 | Latch, Brake | ||
| 40 | 43256 | Swivel Joint | ||
| 41 | 44080 | Rod, Brake | ||
| 42 | 48840 | Cable Assembly, Parking Brake | ||
| 43 | 422273 | Plate, Coupler | ||
| 44 | 04017-05 | Bolt, Serrated Flange Hex Hd 1/4-20 x 3/4" | ||
| 45 | Bolt, Hex Head 3/8-16 x 4" | |||
| 46 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 47 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 48 | 04017-07 | Bolt, Serr.Flng.Hex Head 1/4-20 x 1-1/4" | ||
| 49 | 04060-06 | Roll Pin, 3/16 x 3/4" | ||
| 50 | Nut, Hex 3/8-24 | |||
| 51 | Bolt, Hex Head 3/8-16 x 2" | |||
| 52 | 04041-12 | Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.) | ||
| 53 | 48050 | Spring, Brake Lever | ||
| 54 | Bolt, Carriage 3/8-16 x 1-1/2" | |||
| 55 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 | ||
| 56 | 04017-16 | Bolt, Serr. Flng. HexHead 5/16-18 x 3/4" | ||
| 57 | 04062-02 | Hair Pin, 1/16" | ||
| 58 | Nut, Elastic Stop 1/4-20 | |||
| 59 | 48342 | Grip, Parking Brake | ||
| 60 | Bolt, Hex Head 5/16-18 x 1-1/2" | |||
| 61 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 62 | 04041-08 | Flatwasher, 3/4" | ||
| 62A | 04041-08S | Flatwasher, 3/4" Special | ||
| 63 | HG44612 | Bolt, 1/4-20 x 2-1/2 GR. 5 w/patch | ||
| 64 | HG44276 | Bolt, 1/4-20 x 1-1/2 GR. 5 w/patch | ||
| 65 | 04008-02 | Bolt, Wheel Mounting | ||
| 66 | HG44127 | Pins, Actuating | ||
| 67 | HG44132 | Brake Puck | ||
| 68 | HG44134 | Backing Plate | ||
| 69 | HG44094 | Actuating Lever, RH | ||
| 69A | HG44613 | Actuating Lever, LH | ||
| 70 | Pin, Cotter | |||
| 71 | HG44142 | Nut, Castle | ||
| 72 | HG44130 | Washer, 7/16 x 7/8 OD x .06 HT | ||
| 73 | HG44090 | Disc, Brake | ||
| 74 | HG44143 | Key, Hi Pro 3/16 x 5/8 | ||
| 75 | HG23770 | Brake Spacer | ||
| 76 | HG23711 | Spacer, Torsion Spring | ||
| 77 | HG62589 | Brake Yoke Assembly | ||
| 78 | 04008-02 | Wheel Stud |
61″ Brake And Steering Controls
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481504 | Drive Wheel Assembly | ||
| 2 | 481619 | Tire Only | ||
| 3 | 48958-03 | Rim Only | ||
| 4 | 04028-01 | Lug Nut, 1/2-20 | ||
| 5 | 481578 | Axle, LH (Includes brake lever) | ||
| 5A | 481577 | Axle, RH (Includes brake lever) | ||
| 6 | 48784 | Pump, LH | ||
| 6A | 48785 | Pump, RH | ||
| 7 | 45464 | Dump Valve, Lever Weldment | ||
| 8 | 421212 | Bracket, Mounting | ||
| 9 | 04062-01 | Hair Pin | ||
| 10 | 04001-95 | Bolt, Hex Head 5/16-18 x 5" | ||
| 11 | Flatwasher, 5/16" | |||
| 12 | Lockwasher, 5/16" | |||
| 13 | Nut, Hex 5/16-18 | |||
| 14 | 45462 | Pump Weldment Shaft | ||
| 15 | 421203 | Clamp Plate | ||
| 16 | 48829 | Block, Pump Control | ||
| 17 | 48796 | Bushing, Self Align | ||
| 18 | 421204 | Bracket, Bearing | ||
| 19 | Bolt, Hex Head 3/8-16 x 1" | |||
| 20 | Nut, Elastic Stop 3/8-16 | |||
| 21 | Bolt, Hex Head 3/8-16 x 1-1/2" | |||
| 22 | 04041-07 | Flatwasher, 3/8" Special | ||
| 23 | 48544 | Ball Joint, LH Thread | ||
| 24 | 43246 | Link, Turnbuckle | ||
| 25 | 48464 | Ball Joint, RH Thread | ||
| 26 | 45895 | Lever, Pump Transfer LH | ||
| 26A | 45896 | Lever, Pump Transfer RH | ||
| 27 | 48114-04 | Grease Fitting | ||
| 28 | 48100-06 | Bushing, LH | ||
| 28A | 48100-05 | Bushing, RH | ||
| 29 | 45897 | Control Lever, LH | ||
| 29A | 45898 | Control Lever, RH | ||
| 30 | Bolt, Hex Head 5/16-18 x 1-1/2" | |||
| 31 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 32 | 421145 | Bar Control Lever | ||
| 33 | 461037 | Control Handle | ||
| 34 | 04017-27 | Bolt, Serrated Flange Hex Head 3/8-16 x 1" | ||
| 35 | 481599 | Grip, Control Handle | ||
| 36 | 45482 | Lever Weldment, Parking Brake | ||
| 37 | 45551 | Cam Weldment, Parking Brake | ||
| 38 | 422459 | Plate, Parking Brake | ||
| 39 | 421266 | Latch, Brake | ||
| 40 | 43256 | Swivel Joint | ||
| 41 | 44080 | Rod, Brake | ||
| 42 | 48840 | Cable Assembly, Parking Brake | ||
| 43 | 422273 | Plate, Coupler | ||
| 44 | 04017-05 | Bolt, Serrated Flange Hex Hd 1/4-20 x 3/4" | ||
| 45 | Bolt, Hex Head 3/8-16 x 4" | |||
| 46 | 04050-02 | Ring, Retaining 3/4" External “E” | ||
| 47 | 04019-02 | Nut, Serrated Flange Hex 1/4-20 | ||
| 48 | 04017-07 | Bolt, Serr.Flng.Hex Head 1/4-20 x 1-1/4" | ||
| 49 | 04060-06 | Roll Pin, 3/16 x 3/4" | ||
| 50 | Nut, Hex 3/8-24 | |||
| 51 | Bolt, Hex Head 3/8-16 x 2" | |||
| 52 | 04041-12 | Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.) | ||
| 53 | 48050 | Spring, Brake Lever | ||
| 54 | Bolt, Carriage 3/8-16 x 1-1/2" | |||
| 55 | 04019-04 | Nut, Serrated Flange Hex 3/8-16 | ||
| 56 | 04017-16 | Bolt, Serr. Flng. HexHead 5/16-18 x 3/4" | ||
| 57 | 04062-02 | Hair Pin, 1/16" | ||
| 58 | Nut, Elastic Stop 1/4-20 | |||
| 59 | 48342 | Grip, Parking Brake | ||
| 60 | Bolt, Hex Head 5/16-18 x 1-1/2" | |||
| 61 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 62 | 04041-08 | Flatwasher, 3/4" | ||
| 62A | 04041-08S | Flatwasher, 3/4" Special | ||
| 63 | HG44612 | Bolt, 1/4-20 x 2-1/2 GR. 5 w/patch | ||
| 64 | HG44276 | Bolt, 1/4-20 x 1-1/2 GR. 5 w/patch | ||
| 65 | 04008-02 | Bolt, Wheel Mounting | ||
| 66 | HG44127 | Pins, Actuating | ||
| 67 | HG44132 | Brake Puck | ||
| 68 | HG44134 | Backing Plate | ||
| 69 | HG44094 | Actuating Lever, RH | ||
| 69A | HG44613 | Actuating Lever, LH | ||
| 70 | Pin, Cotter | |||
| 71 | HG44142 | Nut, Castle | ||
| 72 | HG44130 | Washer, 7/16 x 7/8 OD x .06 HT | ||
| 73 | HG44090 | Disc, Brake | ||
| 74 | HG44143 | Key, Hi Pro 3/16 x 5/8 | ||
| 75 | HG23770 | Brake Spacer | ||
| 76 | HG23711 | Spacer, Torsion Spring | ||
| 77 | HG62589 | Brake Yoke Assembly | ||
| 78 | 04008-02 | Wheel Stud |

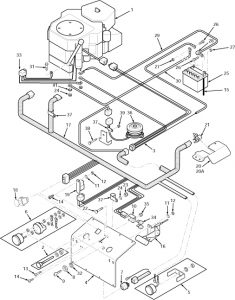

48″ Instrument Panel And Electrical Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481116 | Engine 18 hp Kohler CV (**) | Contact engine manufacturer for replacement engine. | |
| 2 | 481278 | Choke Control | ||
| 3 | 481070 | Adapter | ||
| 4 | 422528 | Kick Plate | ||
| 5 | 48023 | Hour Meter | ||
| 6 | 481755 | Ammeter | ||
| 7 | 48798 | Key Switch (Includes mounting hardware) | ||
| 8 | 48017-04 | Nut, Hex 5/8-32 | ||
| 9 | 48017-02 | Key & Ring Assembly | ||
| 10 | 42413 | Bracket, Fuse Holder | ||
| 11 | 04031-01 | Lockwasher, #10 External Tooth | ||
| 12 | 04020-07 | Nut, Hex #10-32 | ||
| 13 | 04010-11 | Screw, Phillips Washer Head #10-32 x 1-1/2" | ||
| 14 | 04010-01 | Screw, Phillips Washer Head #10-32 x 1/2" | ||
| 15 | 48015-01 | Overflow Tube | ||
| 16 | 48879 | Throttle Control | ||
| 17 | 481682 | Wire Harness | ||
| 18 | 481687 | Switch, Mower Engagement Electric Clutch | ||
| 19 | 48788 | Relay | ||
| 20 | 421253 | Neutral Lock Bracket, RH | ||
| 20A | 421252 | Neutral Lock Bracket, LH | ||
| 21 | 48522 | Switch Neutral Lock | ||
| 22 | 04003-12 | Bolt, Carriage 5/16-18 x .75" | ||
| 23 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 24 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 25 | 48015 | Battery | ||
| 26 | 04001-44 | Bolt, Hex Head 1/4-20 x 1/2" | ||
| 27 | 04020-02 | Nut, Hex 1/4-20 | ||
| 28 | 48126 | Rubber Boot | ||
| 29 | 48029-13 | Battery Cable, 25" Red | ||
| 30 | 48029-11 | Battery Cable, 27" Black | ||
| 31 | 04017-19 | Bolt, Serrated Flange Hex Head 5/16-18 x 1.50" | ||
| 32 | 48017-03 | Lockwasher, 5/8" Internal | ||
| 33 | 481275 | Wire Harness W/Relay | ||
| 34 | 48298 | Fuse, Blade Type 20 amp | ||
| 35 | 04021-01 | Nut, Elastic Stop #10-32 | ||
| 36 | 48786 | Electric Clutch | ||
| 37 | 48030-09 | Clamp | ||
| 38 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 39 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 40 | 04031-09 | Lockwasher, 5/16" Internal Tooth |
52″ Instrument Panel And Electrical Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481118 | Engine 22 hp Kohler CV (**) | Contact engine manufacturer for replacement engine. | |
| 2 | 481278 | Choke Control | ||
| 3 | 481070 | Adapter | ||
| 4 | 422528 | Kick Plate | ||
| 5 | 48023 | Hour Meter | ||
| 6 | 481755 | Ammeter | ||
| 7 | 48798 | Key Switch (Includes mounting hardware) | ||
| 8 | 48017-04 | Nut, Hex 5/8-32 | ||
| 9 | 48017-02 | Key & Ring Assembly | ||
| 10 | 42413 | Bracket, Fuse Holder | ||
| 11 | 04031-01 | Lockwasher, #10 External Tooth | ||
| 12 | 04020-07 | Nut, Hex #10-32 | ||
| 13 | 04010-11 | Screw, Phillips Washer Head #10-32 x 1-1/2" | ||
| 14 | 04010-01 | Screw, Phillips Washer Head #10-32 x 1/2" | ||
| 15 | 48015-01 | Overflow Tube | ||
| 16 | 48879 | Throttle Control | ||
| 17 | 481682 | Wire Harness | ||
| 18 | 481687 | Switch, Mower Engagement Electric Clutch | ||
| 19 | 48788 | Relay | ||
| 20 | 421253 | Neutral Lock Bracket, RH | ||
| 20A | 421252 | Neutral Lock Bracket, LH | ||
| 21 | 48522 | Switch Neutral Lock | ||
| 22 | 04003-12 | Bolt, Carriage 5/16-18 x .75" | ||
| 23 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 24 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 25 | 48015 | Battery | ||
| 26 | 04001-44 | Bolt, Hex Head 1/4-20 x 1/2" | ||
| 27 | 04020-02 | Nut, Hex 1/4-20 | ||
| 28 | 48126 | Rubber Boot | ||
| 29 | 48029-13 | Battery Cable, 25" Red | ||
| 30 | 48029-11 | Battery Cable, 27" Black | ||
| 31 | 04017-19 | Bolt, Serrated Flange Hex Head 5/16-18 x 1.50" | ||
| 32 | 48017-03 | Lockwasher, 5/8" Internal | ||
| 33 | 481275 | Wire Harness W/Relay | ||
| 34 | 48298 | Fuse, Blade Type 20 amp | ||
| 35 | 04021-01 | Nut, Elastic Stop #10-32 | ||
| 36 | 48786 | Electric Clutch | ||
| 37 | 48030-09 | Clamp | ||
| 38 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 39 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 40 | 04031-09 | Lockwasher, 5/16" Internal Tooth |
61″ Instrument Panel And Electrical Components
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 481118 | Engine 22 hp Kohler CV (**) | Contact engine manufacturer for replacement engine. | |
| 2 | 481278 | Choke Control | ||
| 3 | 481070 | Adapter | ||
| 4 | 422528 | Kick Plate | ||
| 5 | 48023 | Hour Meter | ||
| 6 | 481755 | Ammeter | ||
| 7 | 48798 | Key Switch (Includes mounting hardware) | ||
| 8 | 48017-04 | Nut, Hex 5/8-32 | ||
| 9 | 48017-02 | Key & Ring Assembly | ||
| 10 | 42413 | Bracket, Fuse Holder | ||
| 11 | 04031-01 | Lockwasher, #10 External Tooth | ||
| 12 | 04020-07 | Nut, Hex #10-32 | ||
| 13 | 04010-11 | Screw, Phillips Washer Head #10-32 x 1-1/2" | ||
| 14 | 04010-01 | Screw, Phillips Washer Head #10-32 x 1/2" | ||
| 15 | 48015-01 | Overflow Tube | ||
| 16 | 48879 | Throttle Control | ||
| 17 | 481682 | Wire Harness | ||
| 18 | 481687 | Switch, Mower Engagement Electric Clutch | ||
| 19 | 48788 | Relay | ||
| 20 | 421253 | Neutral Lock Bracket, RH | ||
| 20A | 421252 | Neutral Lock Bracket, LH | ||
| 21 | 48522 | Switch Neutral Lock | ||
| 22 | 04003-12 | Bolt, Carriage 5/16-18 x .75" | ||
| 23 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 24 | 04019-03 | Nut, Serrated Flange Hex 5/16-18 | ||
| 25 | 48015 | Battery | ||
| 26 | 04001-44 | Bolt, Hex Head 1/4-20 x 1/2" | ||
| 27 | 04020-02 | Nut, Hex 1/4-20 | ||
| 28 | 48126 | Rubber Boot | ||
| 29 | 48029-13 | Battery Cable, 25" Red | ||
| 30 | 48029-11 | Battery Cable, 27" Black | ||
| 31 | 04017-19 | Bolt, Serrated Flange Hex Head 5/16-18 x 1.50" | ||
| 32 | 48017-03 | Lockwasher, 5/8" Internal | ||
| 33 | 481275 | Wire Harness W/Relay | ||
| 34 | 48298 | Fuse, Blade Type 20 amp | ||
| 35 | 04021-01 | Nut, Elastic Stop #10-32 | ||
| 36 | 48786 | Electric Clutch | ||
| 37 | 48030-09 | Clamp | ||
| 38 | 04003-12 | Bolt, Carriage 5/16-18 x 3/4" | ||
| 39 | 04021-10 | Nut, Elastic Stop 5/16-18 | ||
| 40 | 04031-09 | Lockwasher, 5/16" Internal Tooth |
